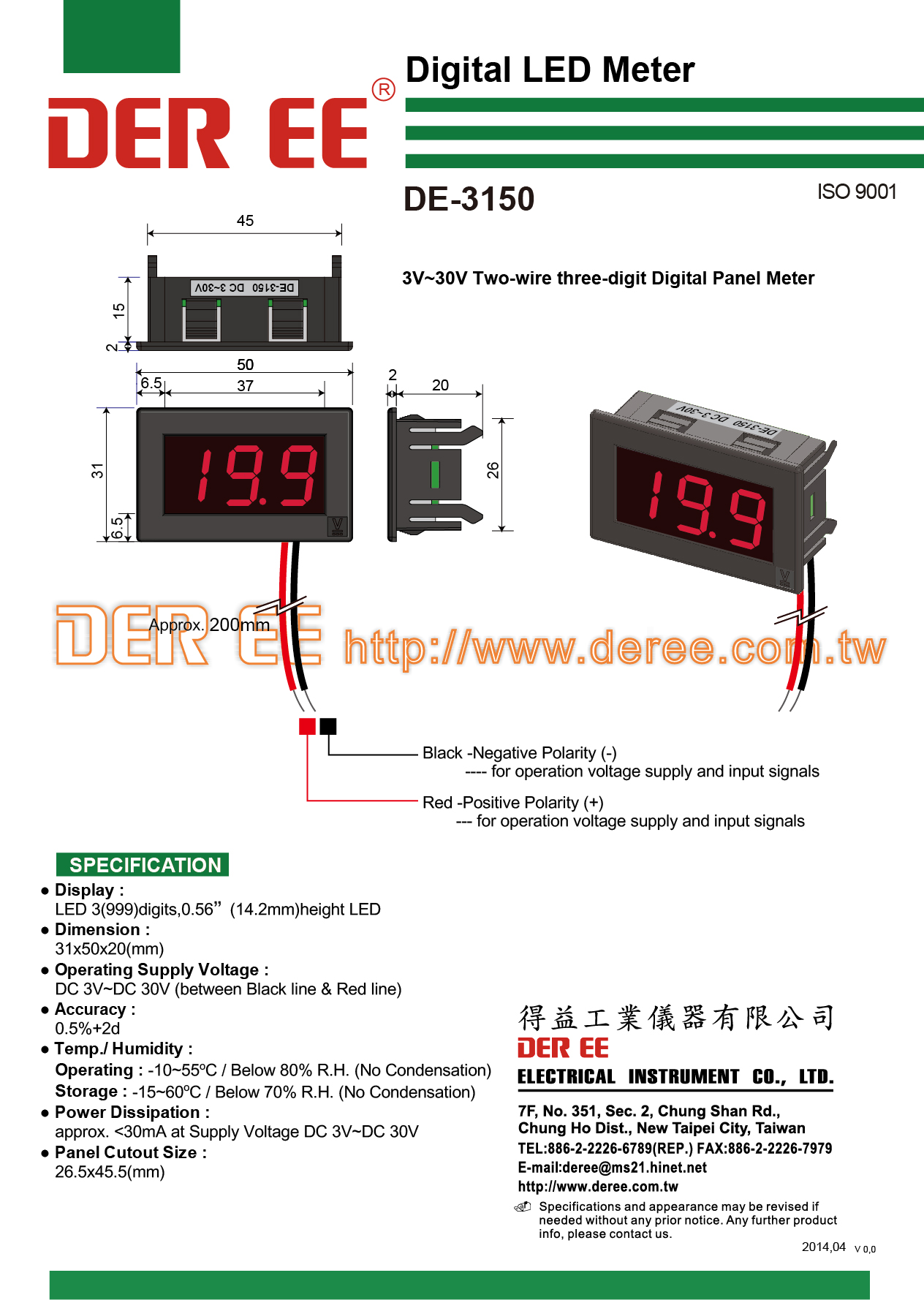

DE-3150 LED Panel Meter
DC 3V~30V Two-wire three-digit Digital Panel Meter
Accuracy:0.5% + 2d
Accuracy:0.5% + 2d
Model :
DE-3150 (DC 3V~30V)
- Display:LED 3 (999) digits, 0.56” (14.2mm) height LED
- Operating Supply Voltage:DC 3V~DC3V (between Black line & Red line)
- Accuracy:0.5% + 2d
- Power Dissipation:Approx. <30mA at Supply Voltage DC 3V~DC 30V
TEMP./Humidity:
- Operation:-10°C~ 55°C/<80% R.H.(no condensation)
- Storage:-15°C~ 60°C/<70%R.H.(no condensation)

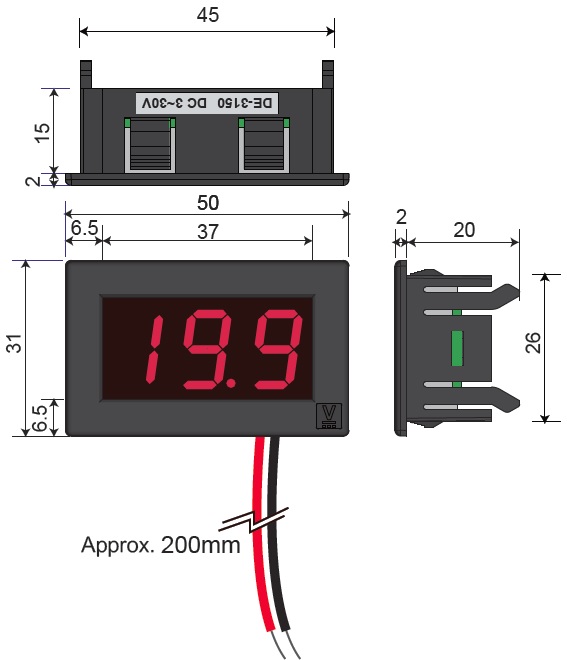

Dimension:
- 31 x 50 x 20(mm)
Panel Cutout Size:
- 26.5 x 45.5 (mm)
Black-Negative Polarity (-)
For operation voltage supply and input signals
Red-Positive Polarity (+)
For operation voltage supply and input signals
