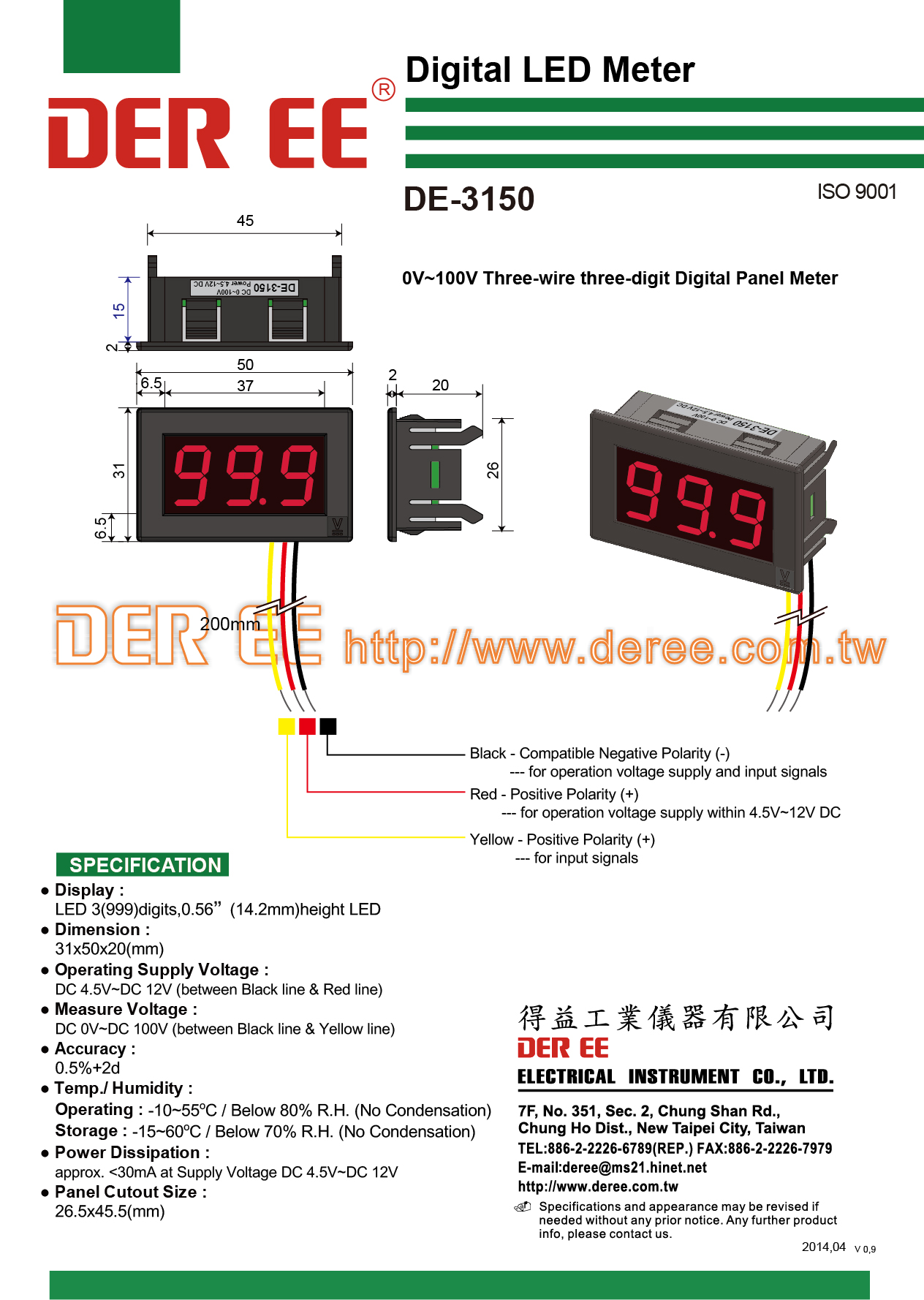

DE-3150 LED Panel Meter

• Display：LED 3 (999) digits, 0.56” (14.2mm) height LED
• Operating Supply Voltage：DC 4.5V~DC12V (between Black line & Red line)
• Measure Voltage：DC 0V~DC 100V (between Black line & Yellow line)
• Accuracy：0.5% + 2d
• Power Dissipation：Approx. <30mA at Supply Voltage DC 4.5V~DC 12V

  TEMP./Humidity：

• Operation：-10°C~ 55°C/<80% R.H.(no condensation)
• Storage：-15°C~ 60°C/<70%R.H.(no condensation)

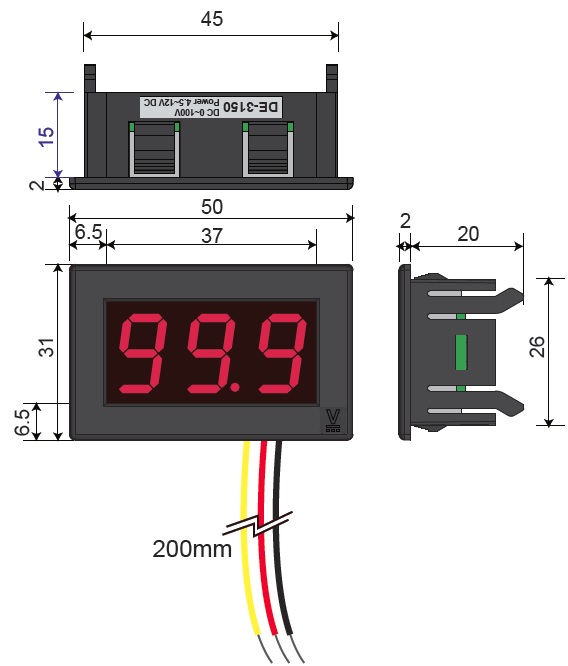

  Dimension：

• 31 x 50 x 20(mm)

  Panel Cutout Size：

• 26.5 x 45.5 (mm)

Black-Compatible Negative Polarity (-)

                For operation voltage supply and input signals

Red-Positive Polarity (+)

                For operation voltage supply within 4.5V~12V DC

Yellow-Positive Polarity (+)

                For input signals

• DC 0V~100V Three-wire three-digit Digital Panel Meter
