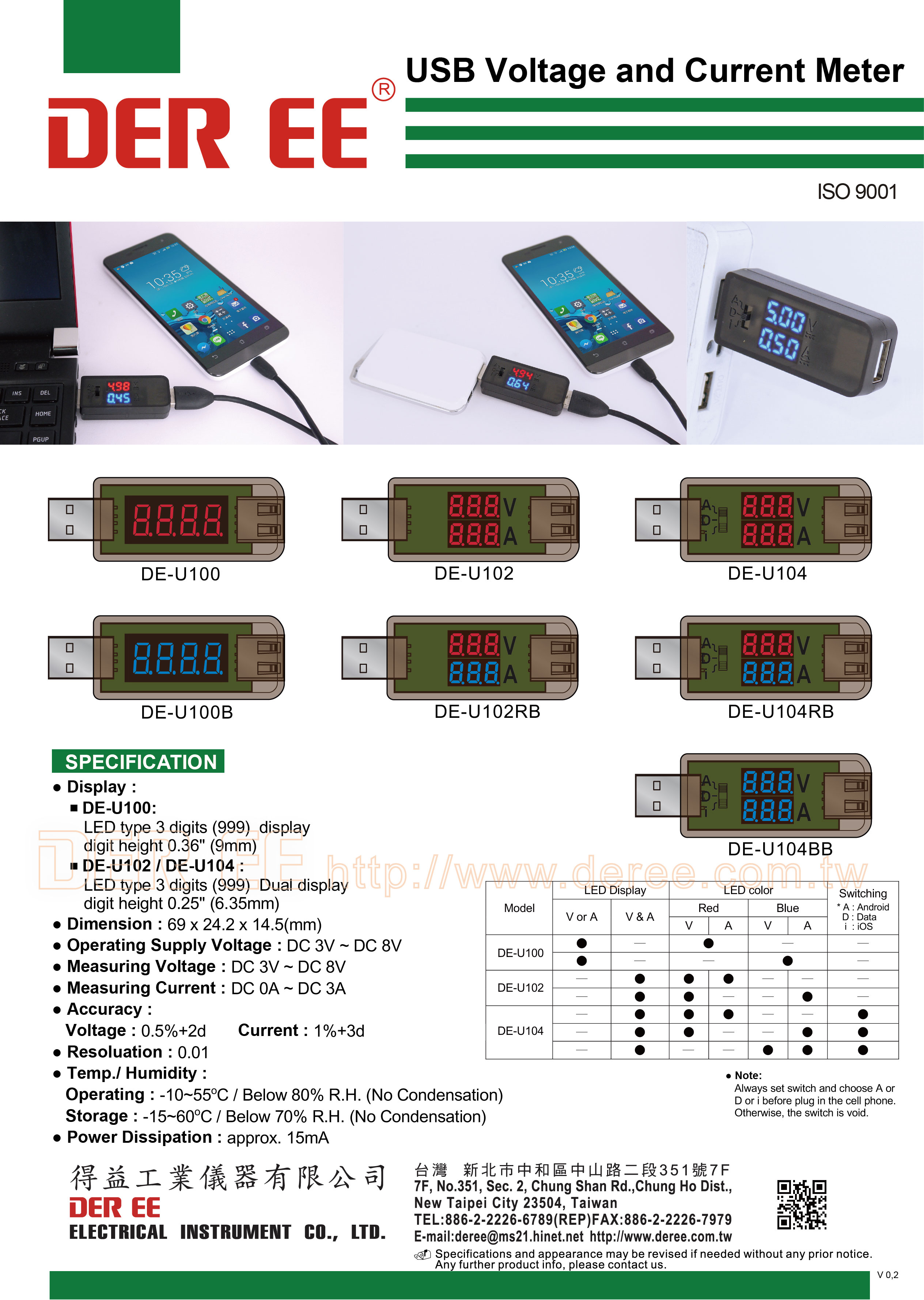

USB Voltage and Current Meter

USB Voltage and Current Meter
Model : USB Voltage and Current Meter

Display
    ■ DE-U100
       LED type 3 digits (999)  display digit height 0.36" (9mm)
    ■ DE-U102
       LED type 3 digits (999)  Dual display digit height 0.25" (6.35mm)

    ■ DE-U104
       LED type 3 digits (999)  Dual display digit height 0.25" (6.35mm)


 Operating Supply Voltage : DC 3V ~ DC 8V

Measuring Voltage : DC 3V ~ DC 8V

Measuring Current : DC 0A ~ DC 3A

Accuracy

   Voltage : 0.5%+2d

   Current : 1%+3d

Resoluation : 0.01

Power Dissipation : approx. 15mA


 Temp./ Humidity Operating : -10~55ºC / Below 80% R.H. (No Condensation)

Storage : -15~60ºC / Below 70% R.H. (No Condensation)


 Dimension

69 x 24.2 x 14.5(mm)
