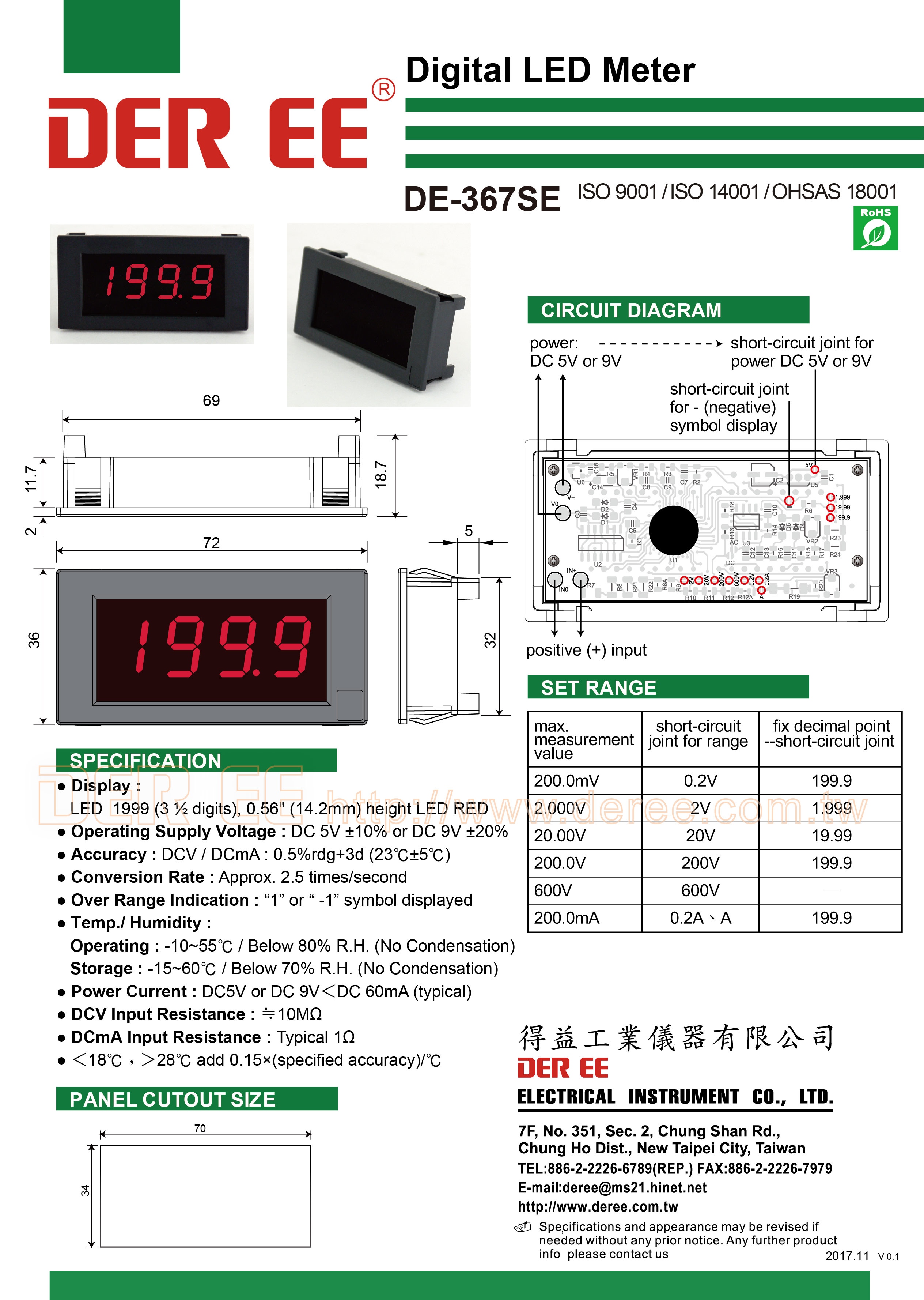

DE-367SE LED Panel Meter
DE-367SE LED DCV / DCmA
Accuracy：DCV / DCmA：0.5% rdg+3d (23℃ ±5℃)
Accuracy：DCV / DCmA：0.5% rdg+3d (23℃ ±5℃)
Model :
DE-367SE
- Display：LED 3 ½ (1999) digits, 0.56" (14.2mm) height LED RED
- Operating Supply Voltage：DC 5V ±10% or DC 9V ±20%
- Accuracy：DCV / DCmA：0.5% rdg+3d (23℃ ±5℃)
- Conversion Rate：Approx. 2.5 times / second
- Negative Polarity：“-” symbol display automatically
- Over Range Indication：“1” or “ -1” symbol displayed
- Power Current：DC 5V or DC 9V < DC 60mA (typical)
- DCV Input Resistance：≒10MΩ
- DCmA Input Resistance：Typical 1Ω
- <18℃,> 28℃ add 0.15 x (specified accuracy) / ℃
Set Range：
|
Max. measurement value |
Short-circuit joint for range |
Fix decimal point—short-circuit joint |
|
200.0mV |
0.2V |
199.9 |
|
2.000V |
2V |
1.999 |
|
20.00V |
20V |
19.99 |
|
200.0V |
200V |
199.9 |
|
600V |
600V |
── |
|
200.0mA |
0.2A、A |
199.9 |
Temp./ Humidity ：
- Operating：-10~55°C / Below 80% R.H. (No Condensation)
- Storage： -15~60°C / Below 70% R.H. (No Condensation)

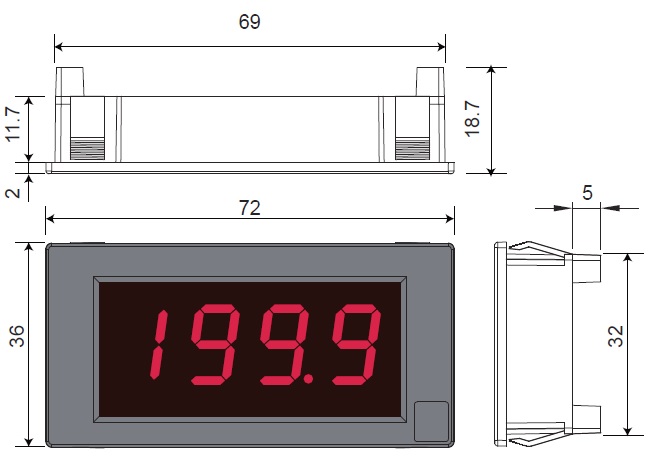

Dimension：
- Dimension：72x36x18.7mm
Panel Cutout Size：
- 70x34mm
