DE-3150 LED Panel Meter
AC 50V~300V Three-digit Digital Panel Meter
Accuracy：1% + 3d
Accuracy：1% + 3d
Model :
DE-3150 (AC 50V~300V)
- Display：LED 3 (999) digits, 0.56” (14.2mm) height LED
- Accuracy：1% + 3d
- Power Dissipation：Approx. 25mA at AC 110V / 50mA at AC 220
TEMP./Humidity：
- Operation：-10°C~ 55°C/<80% R.H.(no condensation)
- Storage：-15°C~ 60°C/<70%R.H.(no condensation)

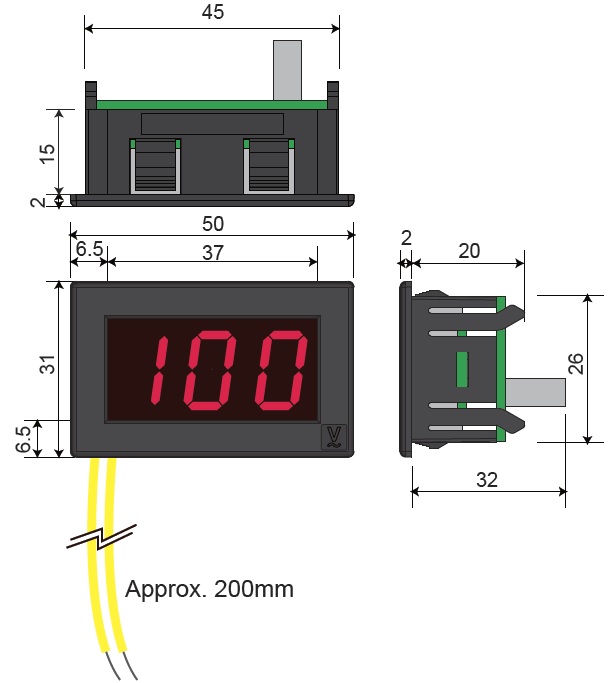

Dimension：
- 31 x 50 x 20(mm)
Panel Cutout Size：
- 26.5 x 45.5 (mm)
