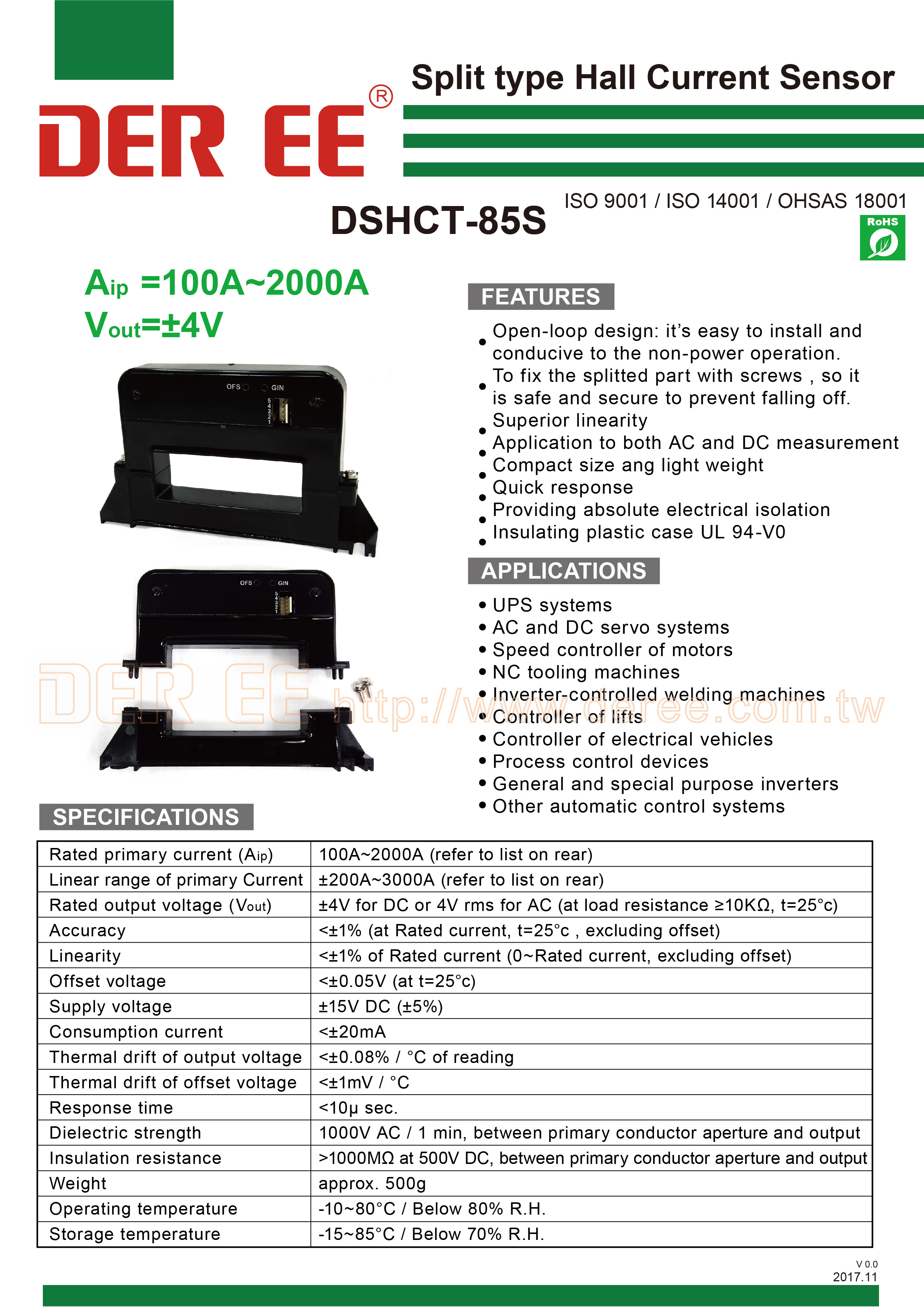

DSHCT-85S Split type Hall Effect Current Sensor
Linearity of Rated Output Voltage：± 1%
Response Time：<10 μ sec
It is safe and secure by fixing the splitted part with screws to prevent falling off. With features of superior linearity , quick response ,and high precision, now DER EE split type hall sensor are suitable for UPS systems , AC and DC servo systems , Speed controller of motors , general and special purpose inverters ,and other automatic control systems.
- Offset (Residual) Voltage：±0.05V
- Linearity of Rated Output Voltage：± 1%
- Power Supply：±15V
- Consumption Current：20mA
- Response Time：<10 μ sec
- Thermal Drift of Output：TYP. ±0.08% / ℃, Max. ±0.1% / ℃
- Hysteresis Error：±0.035V
- Insulation Resistance：Over 500MΩ/500V between aperture and terminals
- Applied Voltage Test：2000V, 50 / 60Hz between aperture and terminals
Part# / specs：
|
Part# |
Rated Input Current (Ampere Turn) |
Liner Range |
Rated Output Voltage |
|
DSHCT-85S 0100 |
100A |
0~ ± 200 |
4V |
|
DSHCT-85S 0200 |
200A |
0~ ± 400 |
4V |
|
DSHCT-85S 0400 |
400A |
0~ ± 600 |
4V |
|
DSHCT-85S 0600 |
600A |
0~ ± 900 |
4V |
|
DSHCT-85S 0800 |
800A |
0~ ± 1200 |
4V |
|
DSHCT-85S 1000 |
1000A |
0~ ± 1500 |
4V |
|
DSHCT-85S 1200 |
1200A |
0~ ± 1800 |
4V |
|
DSHCT-85S 1400 |
1400A |
0~ ± 2100 |
4V |
|
DSHCT-85S 1600 |
1600A |
0~ ± 2400 |
4V |
|
DSHCT-85S 1800 |
1800A |
0~ ± 2700 |
4V |
|
DSHCT-85S 2000 |
2000A |
0~ ± 3000 |
4V |
Dimension / Weight：
- 170(L) x 100(W) x 22 (H)mm
- Approx. 500g
- Aperture size: 85 x 27mm
TEMP./Humidity：
- Operation：-10°C~ 80°C/ <80% R.H.(no condensation)
- Storage：-15°C~ 85°C/ <70%R.H.(no condensation)
- Open-loop design: it’s easy to install and conducive to the non-power operation.
- To fix the splitted part with screws , so it is safe and secure to prevent falling off.
- Superior linearity
- Application to both AC and DC measurement
- Quick response
- Providing absolute electrical isolation
Applications：
- UPS systems
- AC and DC servo systems
- Speed controller of motors
- NC tooling machines
- Inverter-controlled welding machines
- Controller of lifts
- Controller of electrical vehicles
- Process control devices
- General and special purpose inverters
- Other automatic control systems
