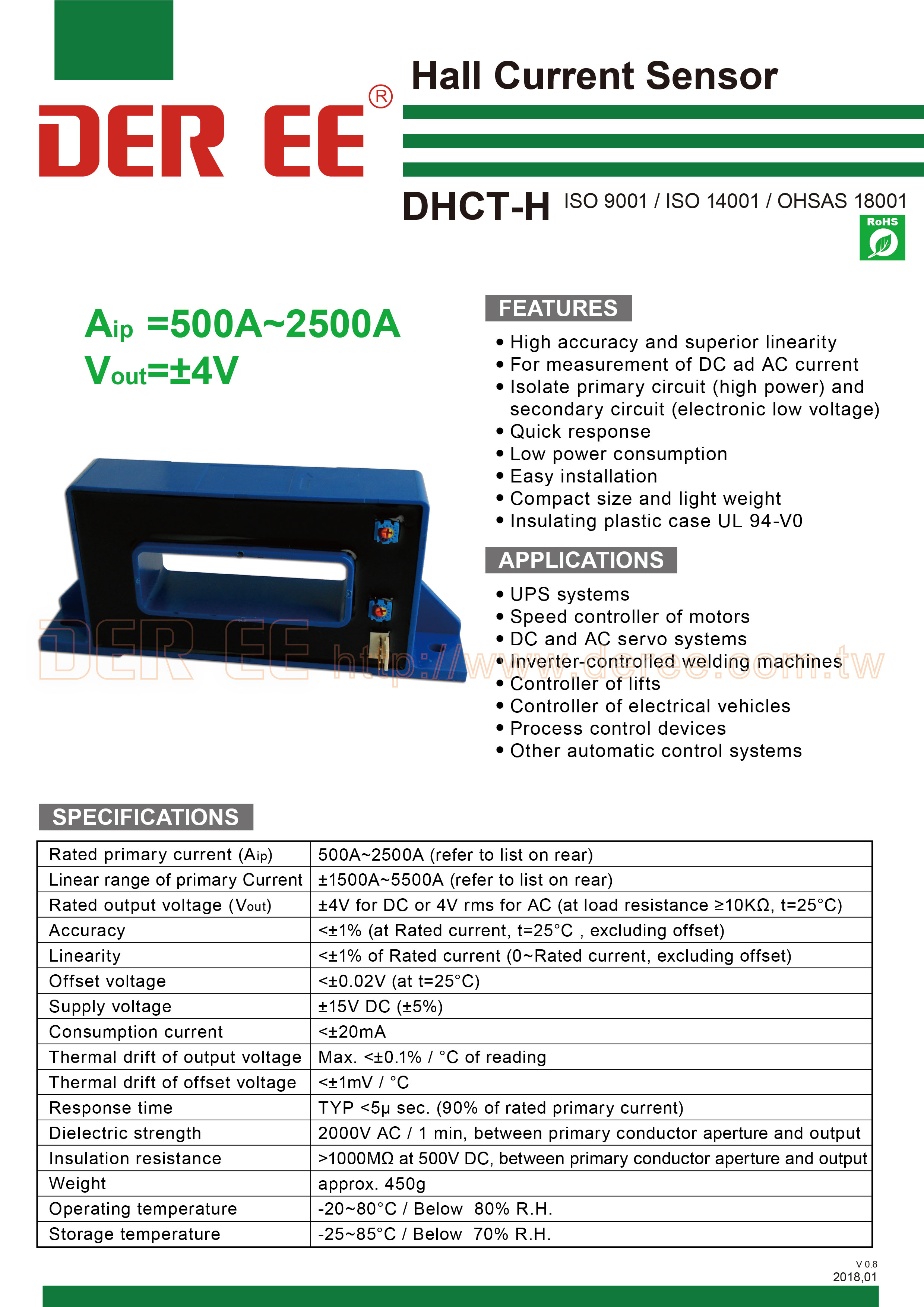

DHCT-H Hall Effect Current Sensor
Linearity of Rated Output Voltage:< ± 1%
Response Time:< 5 μ sec
Thermal Drift of Output Voltage:< ±0.1% / of reading
- Offset (Residual) Voltage:< ±0.02V
- Linearity of Rated Output Voltage:< ± 1%
- Power Supply:±15V
- Consumption Current:< ±20mA
- Response Time:< 5 μ sec
- Thermal Drift of Output Voltage:< ±0.1% / of reading
- Thermal Drift of Offset Voltage:< ±1mV / ℃
- Hysteresis Error:±0.035V
- Insulation Resistance:> 1000MΩ at 500V DC, between primary conductor aperture and output
- Applied Voltage Test:2000V, 50 / 60Hz between aperture and terminals
Part# / specs:
Part# |
Rated Input Current (Ampere Turn) |
Liner Range |
Rated Output Voltage |
DHCT-H0500 |
500A |
± 1500 |
4V |
DHCT-H0600 |
600A |
± 1800 |
4V |
DHCT-H0800 |
800A |
± 2400 |
4V |
DHCT-H1000 |
1000A |
± 3000 |
4V |
DHCT-H1500 |
1500A |
± 4500 |
4V |
DHCT-H2000 |
2000A |
± 5500 |
4V |
DHCT-H2500 |
2500A |
± 5500 |
4V |

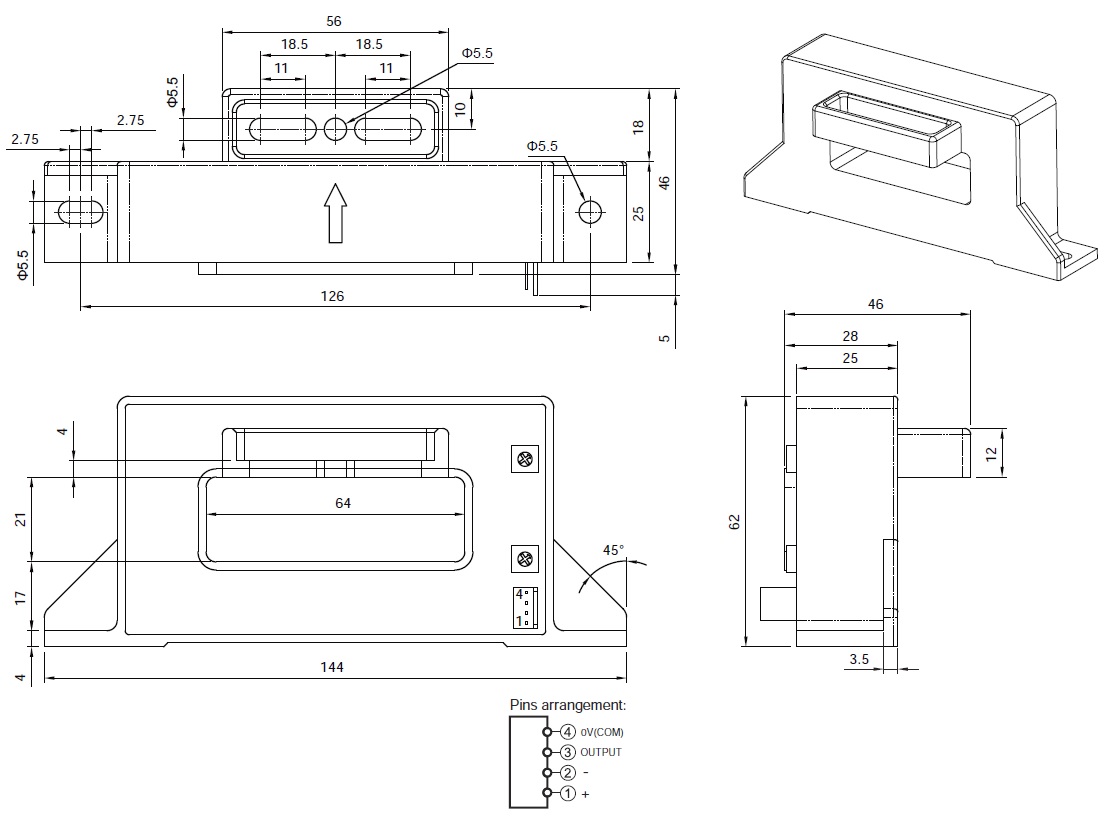

Dimension / Weight:
- 144(L) x 46(W) x 62 (H)mm
- Approx. 450g
- Aperture size: 21 x 64mm
TEMP./Humidity:
- Operation:-20°C~ 80°C/ <80% R.H.(no condensation)
- Storage:-25°C~ 85°C/ <70%R.H.(no condensation)
- High accuracy and superior linearity
- For measurement of DC and AC current
- Isolate primary circuit (high power) and secondary circuit (electronic low voltage)
- Quick response
- Low power consumption
- Easy installation
- Compact size and light weight
- Insulating plastic case UL 94-V0
Applications:
- UPS systems
- AC and DC servo systems
- Speed controller of motors
- NC tooling machines
- Inverter-controlled welding machines
- Controller of lifts
- Controller of electrical vehicles
- Process control devices
- General and special purpose inverters
- Other automatic control systems
