DHCT-B Hall Effect Current Sensor
Application to both AC and DC measurement
Linearity of Rated Output Voltage：± 1%
Response Time：10 μ sec
Linearity of Rated Output Voltage：± 1%
Response Time：10 μ sec
Model :
DHCT-B
- Offset (Residual) Voltage：±0.03V
- Linearity of Rated Output Voltage：± 1%
- Power Supply：±15V
- Consumption Current：18mA
- Response Time：10 μ sec
- Thermal Drift of Output：TYP. ±0.08% / ℃, Max. ±0.1% / ℃
- Hysteresis Error：±0.035V
- Insulation Resistance：Over 500MΩ/500V between aperture and terminals
- Applied Voltage Test：2000V, 50 / 60Hz between aperture and terminals
Part# / specs：
|
Part# |
Rated Input Current (Ampere Turn) |
Liner Range |
Rated Output Voltage |
|
DHCT-B0025 |
25A |
0~ ± 75 |
4V |
|
DHCT-B0050 |
50A |
0~ ± 150 |
4V |
|
DHCT-B0100 |
100A |
0~ ± 300 |
4V |
|
DHCT-B0200 |
200A |
0~ ± 600 |
4V |
|
DHCT-B0300 |
300A |
0~ ± 900 |
4V |
|
DHCT-B0400 |
400A |
0~ ± 900 |
4V |
|
DHCT-B0600 |
600A |
0~ ± 900 |
4V |

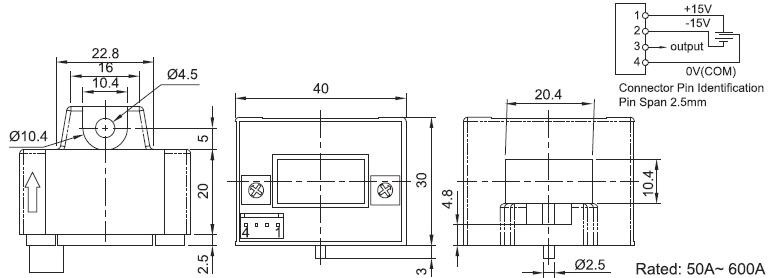

Dimension / Weight：
- 40(L) x 30(W) x 20 (H)mm
- Approx. 50g
- Aperture size: 20.4 x 10.4mm
TEMP./Humidity：
- Operation：-10°C~ 80°C/ <80% R.H.(no condensation)
- Storage：-15°C~ 85°C/ <70%R.H.(no condensation)
- Superior linearity
- Application to both AC and DC measurement
- Compact size and light weight
- Quick response
- Providing absolute electrical isolation
Applications：
- UPS systems
- AC and DC servo systems
- Speed controller of motors
- NC tooling machines
- Inverter-controlled welding machines
- Controller of lifts
- Controller of electrical vehicles
- Process control devices
- General and special purpose inverters
- Other automatic control systems
