DHCT-M Hall Effect Current Sensor

Application to both AC and DC measurement
Linearity of Rated Output Voltage:± 1%
Response Time:10 μ sec
Model : DHCT-M

  • Offset (Residual) Voltage:±0.05V
  • Linearity of Rated Output Voltage:± 1%
  • Power Supply:±15V
  • Consumption Current:20mA
  • Response Time:10 μ sec
  • Thermal Drift of Output:TYP. ±0.08% / ℃, Max. ±0.1% / ℃
  • Hysteresis Error:±0.035V
  • Insulation Resistance:Over 500MΩ/500V between aperture and terminals
  • Applied Voltage Test:2000V, 50 / 60Hz between aperture and terminals



  Part# / specs:

Part#

Rated Input Current

(Ampere Turn)

Liner Range

Rated Output Voltage

DHCT-M0100

100A

0~ ± 200

4V

DHCT-M0200

200A

0~ ± 400

4V

DHCT-M0400

400A

0~ ± 600

4V

DHCT-M0600

600A

0~ ± 900

4V

DHCT-M0800

800A

0~ ± 1200

4V

DHCT-M1000

1000A

0~ ± 1500

4V

DHCT-M1200

1200A

0~ ± 1800

4V

DHCT-M1400

1400A

0~ ± 2100

4V

DHCT-M1600

1600A

0~ ± 2400

4V

DHCT-M1800

1800A

0~ ± 2700

4V

DHCT-M2000

2000A

0~ ± 3000

4V

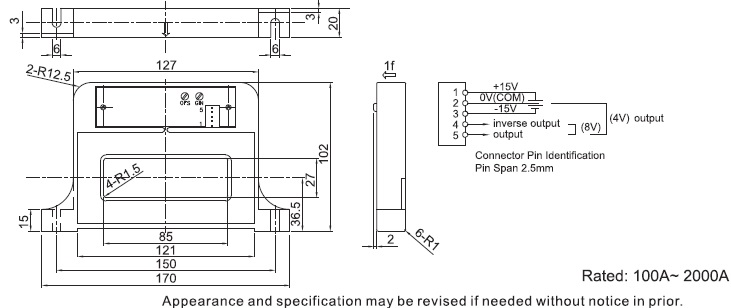

  Dimension / Weight:

  • 170(L) x 102(W) x 20 (H)mm
  • Approx. 500g
  • Aperture size: 85 x 27mm



  TEMP./Humidity:

  • Operation:-10°C~ 80°C/ <80% R.H.(no condensation)
  • Storage:-15°C~ 85°C/ <70%R.H.(no condensation)
  • Superior linearity
  • Application to both AC and DC measurement
  • Compact size and light weight
  • Quick response
  • Providing absolute electrical isolation

  Applications:

  • UPS systems
  • AC and DC servo systems
  • Speed controller of motors
  • NC tooling machines
  • Inverter-controlled welding machines
  • Controller of lifts
  • Controller of electrical vehicles
  • Process control devices
  • General and special purpose inverters
  • Other automatic control systems
