The VU meter is a device that indicates signal levels on audio equipment.

With this experience of decades, DER EE is capable of providing VU meters with various specifications and dimensions to meet customers' requirements. The popular specification is 500uA/650Ω.

For custom-designed, please feel free to contact us.

For inquiring VU meter, please indicate the following information:

1. Model no.
2. Internal resistance: 200Ω /650Ω (standard) / 750Ω /1200Ω
3. Sensitivity: 200uA/250uA/500uA (standard)/1 mA
4. Color of pointer: by DER EE standard type or please specify

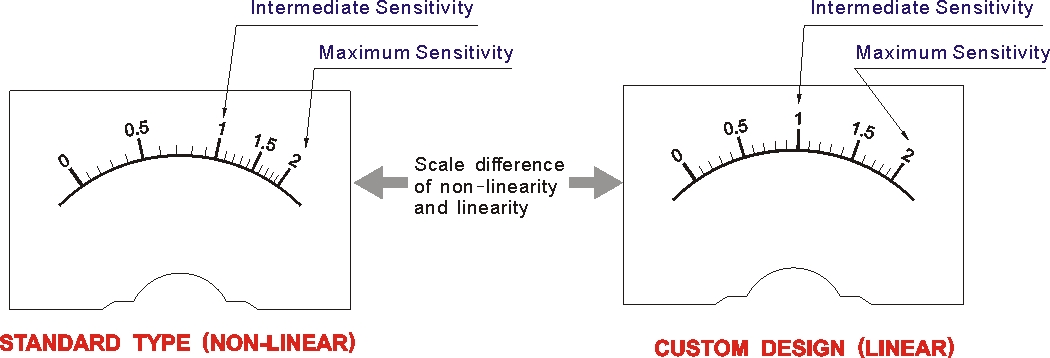

5. Scale plate: by DER EE Standard scale or custom-design
6. Lamp (optional / check model no. before placing order) by DER EE standard 12V/55mA or special request (please specify voltage /current spec. )
7. Position of level meter: Vertical or horizontal
