• DE-3050 VU panel meter

DE-3050 VU panel meter

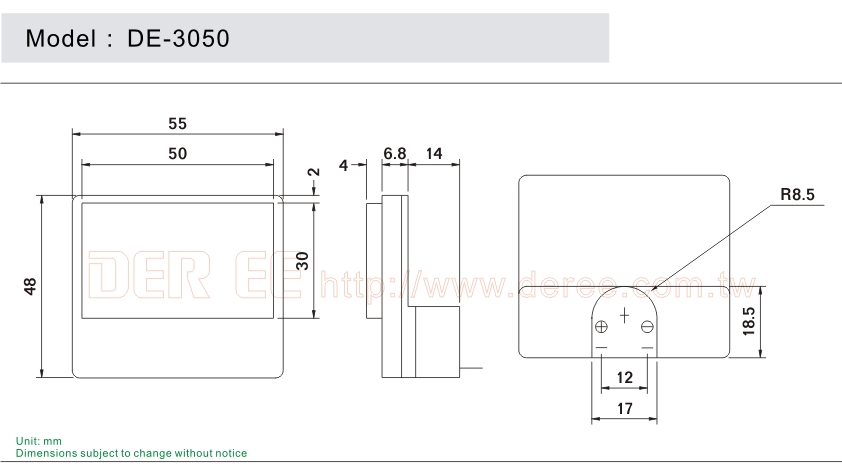

● SIZE : 55 x 48 x 24.8 mm
Model : DE-3050

When you order DER EE VU meter, please indicate about the following information:

 Meter Dimension

Please indicate meter size

 Internal Resistance

250Ω , 650Ω, 750Ω, 1200Ω

 Sensitivity

200µA , 250µA , 500µA, 1mA

 Pointer Color

As your color request

 Scale Plate

Custom design according to your drawing

 Lamp

Standard type is 12V/55mA transparent.



If you request special specs., please indicate the voltage and current

 Install position of the level meter

Vertical or horizontal

 Popular spec

500µA/650Ω




proimages/edm_vu/DE_3050.jpg


● SIZE : 55 x 48 x 24.8 mm
