DE-2544-5 VU panel meter
When you order DER EE VU meter, please indicate about the following information: |
|

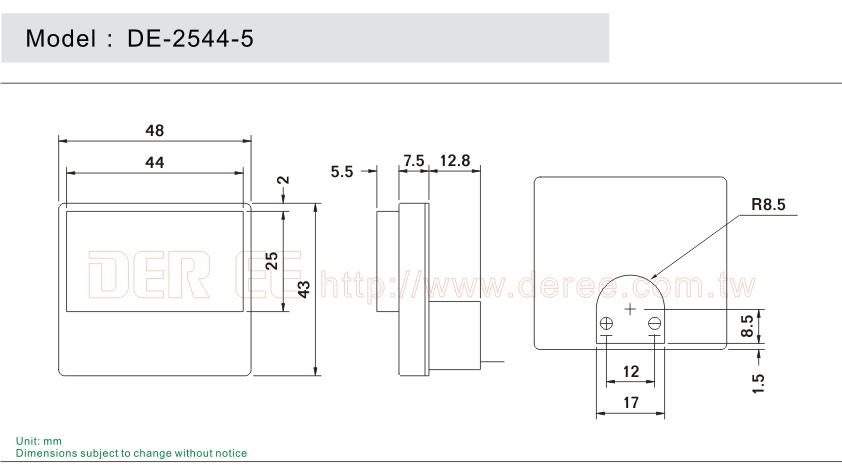

■ Meter Dimension |
Please indicate meter size |
■ Internal Resistance |
250Ω , 650Ω, 750Ω, 1200Ω |
■ Sensitivity |
200µA , 250µA , 500µA, 1mA |
■ Pointer Color |
As your color request |
■ Scale Plate |
Custom design according to your drawing |
■ Lamp |
Standard type is 12V/55mA transparent. |
|
If you request special specs., please indicate the voltage and current |
■ Install position of the level meter |
Vertical or horizontal |
■ Popular spec |
500µA/650Ω |
