Specifications

• Primary Current Range: 10mA~120A RMS (50/60Hz), RL≦10Ω
• Application frequency: 10~5KHz
• Maximum Primary Current: 300A RMS continuous
• Primary Conductor Hole: φ16mm

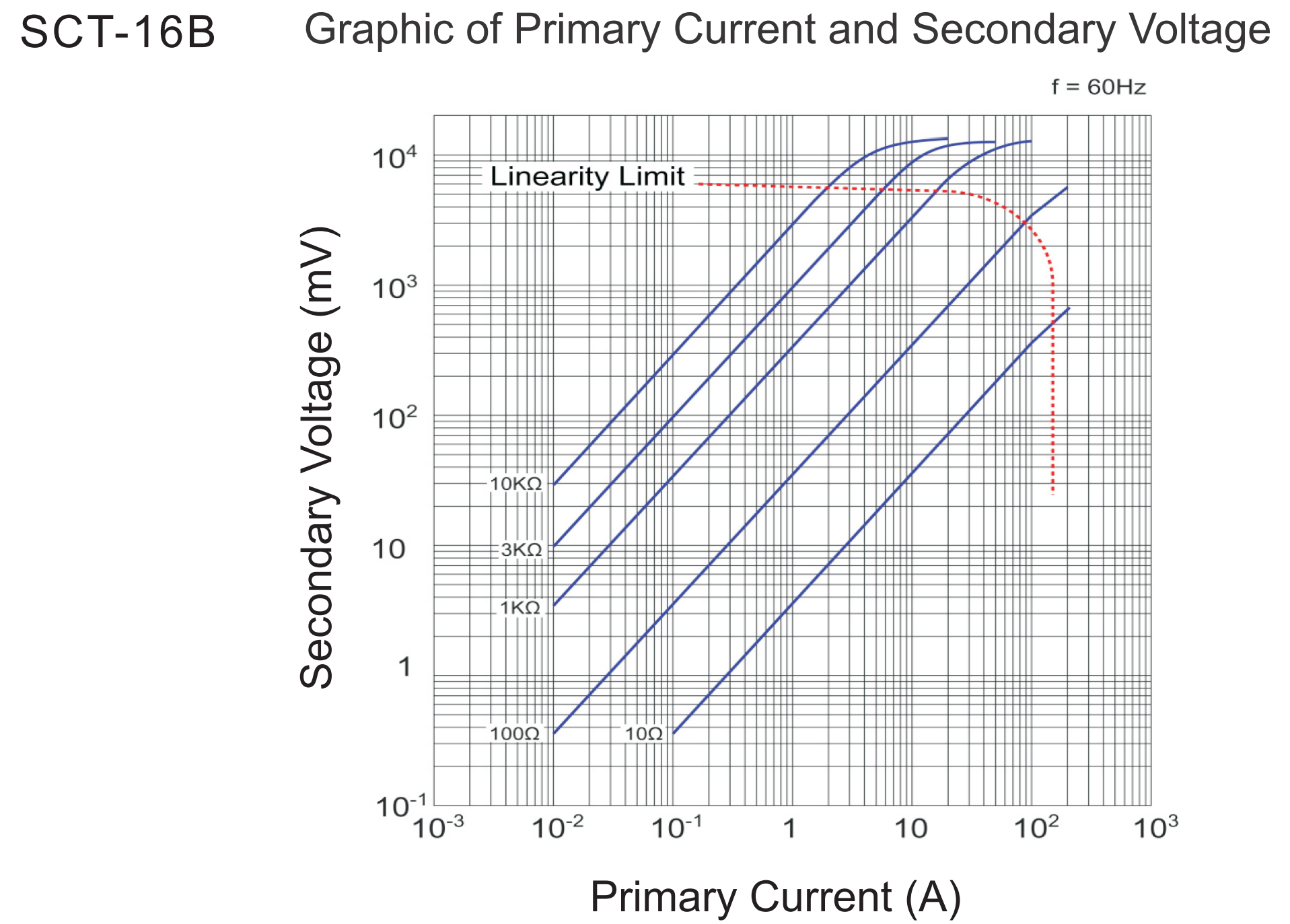

• Output Features: refer to graphic
• Coil of Secondary Circuit: 3000±2 turns (With 10.2V Suppressor inside)
• Coil Resistance of Secondary Circuit: 290Ω±10% (at 25℃)
• Enclosure Material: NYLON Flame Retardant (UL-94V0)
• Output Cord Length: Typical 700mm (different lengths also available with customer’s request)
• Max circuit voltage: AC 600V
• Dielectric Strength: 1,000V AC / 1min between primary conductor hole and output
• Open circuit protection: 10.2V (Zener diode)
• Insulation Resistance: ＞100MΩ at 500V DC between primary conductor hole and output
• Weight: approx. 70g
• Operating Condition: -20~60℃, below 80% R.H. no condensation

• Storage Condition: -30~70℃, below 70% R.H. no condensation

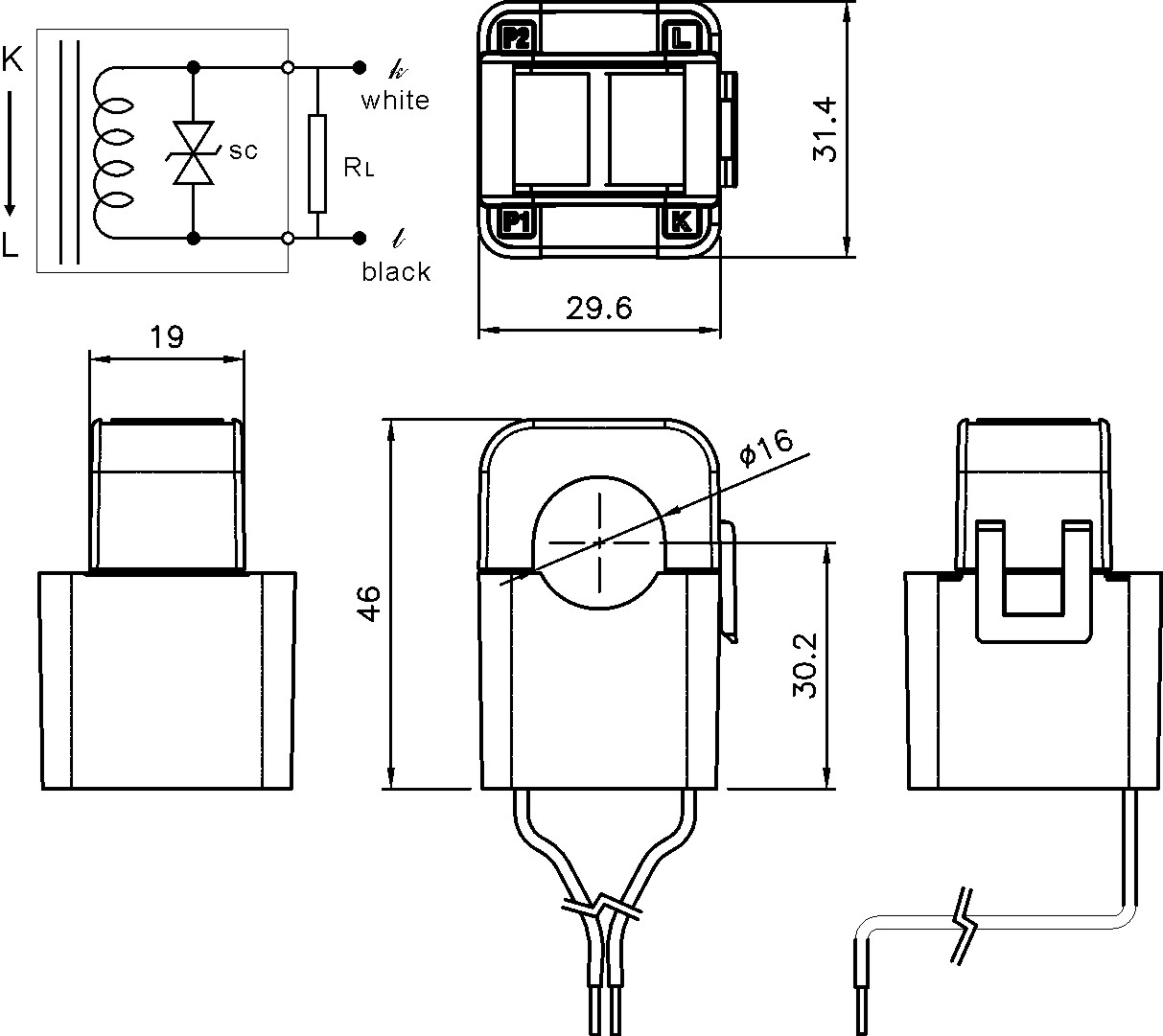

Dimension:

Features

• Split-core type with clip-on design, easy installation at set-up devices and distribution board.
• Built-in circuit protection from over voltage even secondary circuit open.
• Compact size works up to 120A AC.
• Cost-effective solution.
• Applicable for power-saving facilities and overload protection systems.
• Applicable for 5A secondary output of current transformer.
• Isolated plastic case recognized according to UL 94-V0.
