SCT-10S split core current transformer

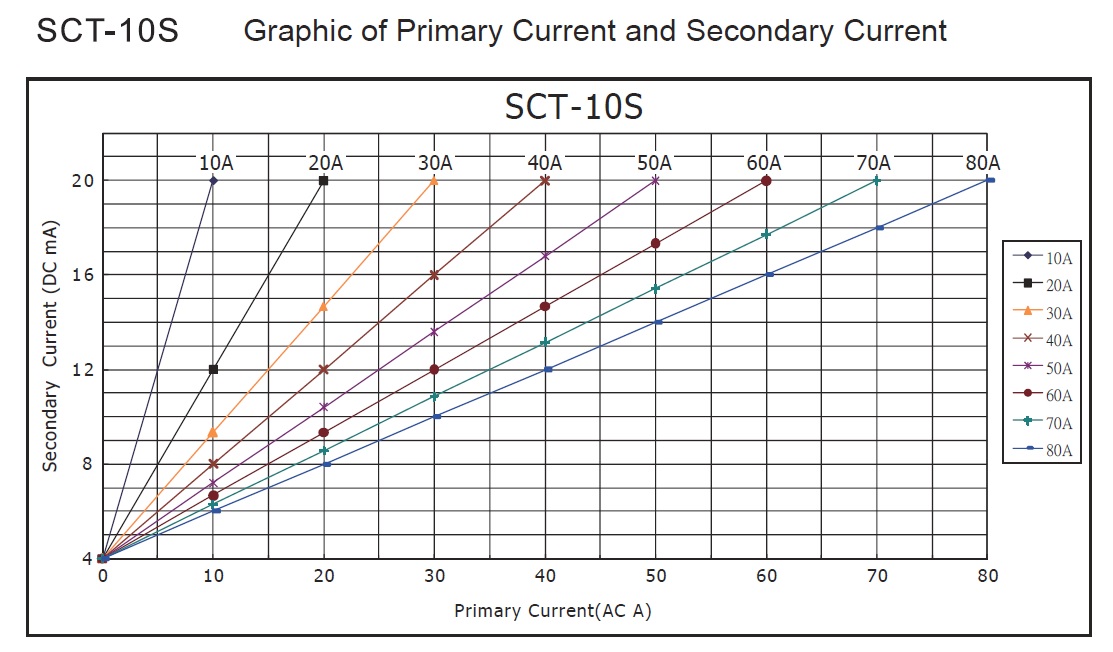

Primary Rated Current:AC 10A/20A/30A/40A/50A/60A/70A/80A(50/60Hz)
Secondary Output Current:DC 4~20mA ,2-wire Loop Powered
Accuracy:CLASS 0.5 (±0.5% of full scale) ,RL<300Ω
Compact size works up to 80A AC
Model : SCT-10S


  • Primary Rated Current:AC 10A/20A/30A/40A/50A/60A/70A/80A(50/60Hz)
  • Secondary Output Current:DC 4~20mA ,2-wire Loop Powered
  • Accuracy:CLASS 0.5 (±0.5% of full scale) ,RL<300Ω
  • Temperature Coefficient:±0.02% of full scale / ℃
  • Power Supply:DC 24V (±20%)
  • Primary Conductor Hole:φ10mm
  • Enclosure Material:NYLON Flame Retardant (UL-94V0)
  • Dielectric Strength:1000V AC / 1min between primary conductor hole and output
  • Insulation Resistance:>100MΩ at 500V DC between primary conductor hole and output
  • Weight:approx. 49g
  • Operating Condition:-10~50℃, below 80% R.H. no condensation
  • Storage Condition:-20~60℃, below 70% R.H. no condensation

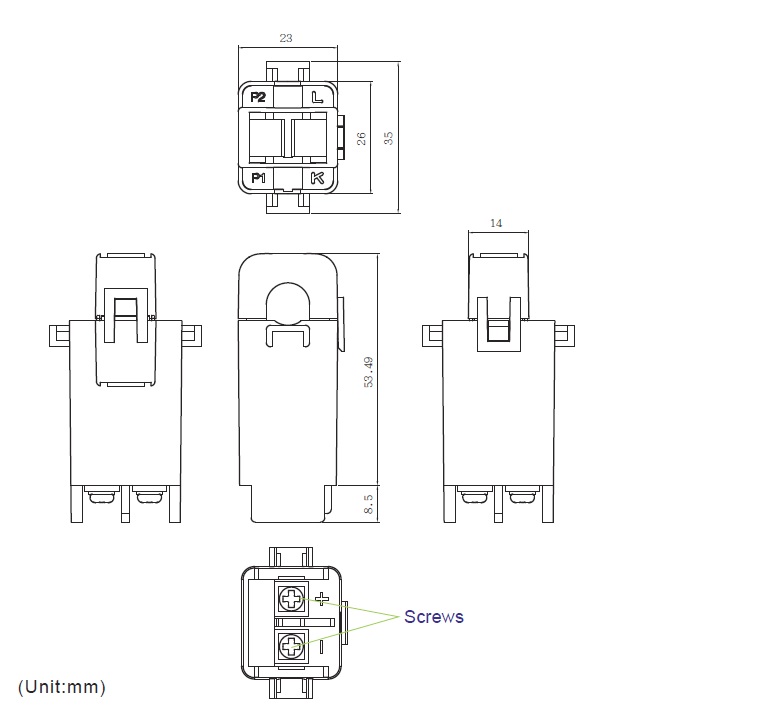

  Dimension:





  • Split-core type with clip-on design, easy installation at set-up devices and distribution board
  • Compact size works up to 80A AC
  • Cost-effective solution
  • Two ends hook attached to secure primary conductor with cable-ties
  • Applicable for power saving facilities and overload protection systems
  • Isolated plastic case recognized according to UL 94-V0
