• DE-3260 VU panel meter

DE-3260 VU panel meter

● SIZE : 65.2 x 53.2 x 27.3 mm
● LAMP : OPTION
Model : DE-3260

When you order DER EE VU meter, please indicate about the following information:

 Meter Dimension

Please indicate meter size

 Internal Resistance

250Ω , 650Ω, 750Ω, 1200Ω

 Sensitivity

200µA , 250µA , 500µA, 1mA

 Pointer Color

As your color request

 Scale Plate

Custom design according to your drawing

 Lamp

Standard type is 12V/55mA transparent.



If you request special specs., please indicate the voltage and current

 Install position of the level meter

Vertical or horizontal

 Popular spec

500µA/650Ω

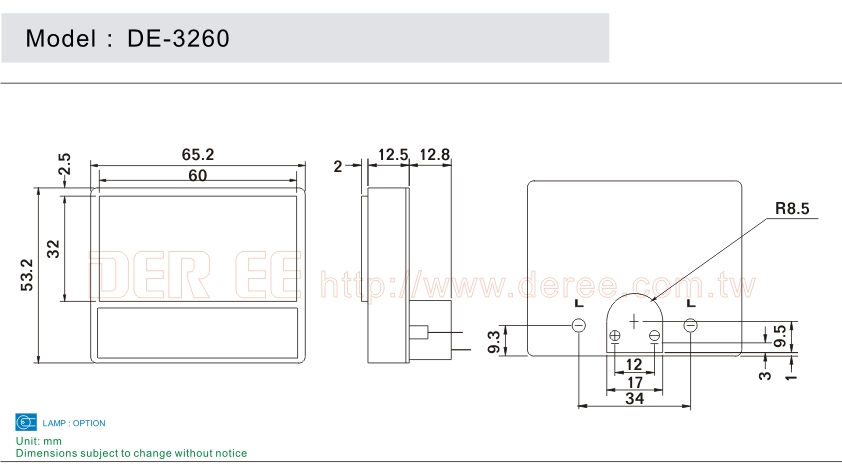

proimages/edm_vu/DE_3260.jpg


● SIZE : 65.2 x 53.2 x 27.3 mm
● LAMP : OPTION
