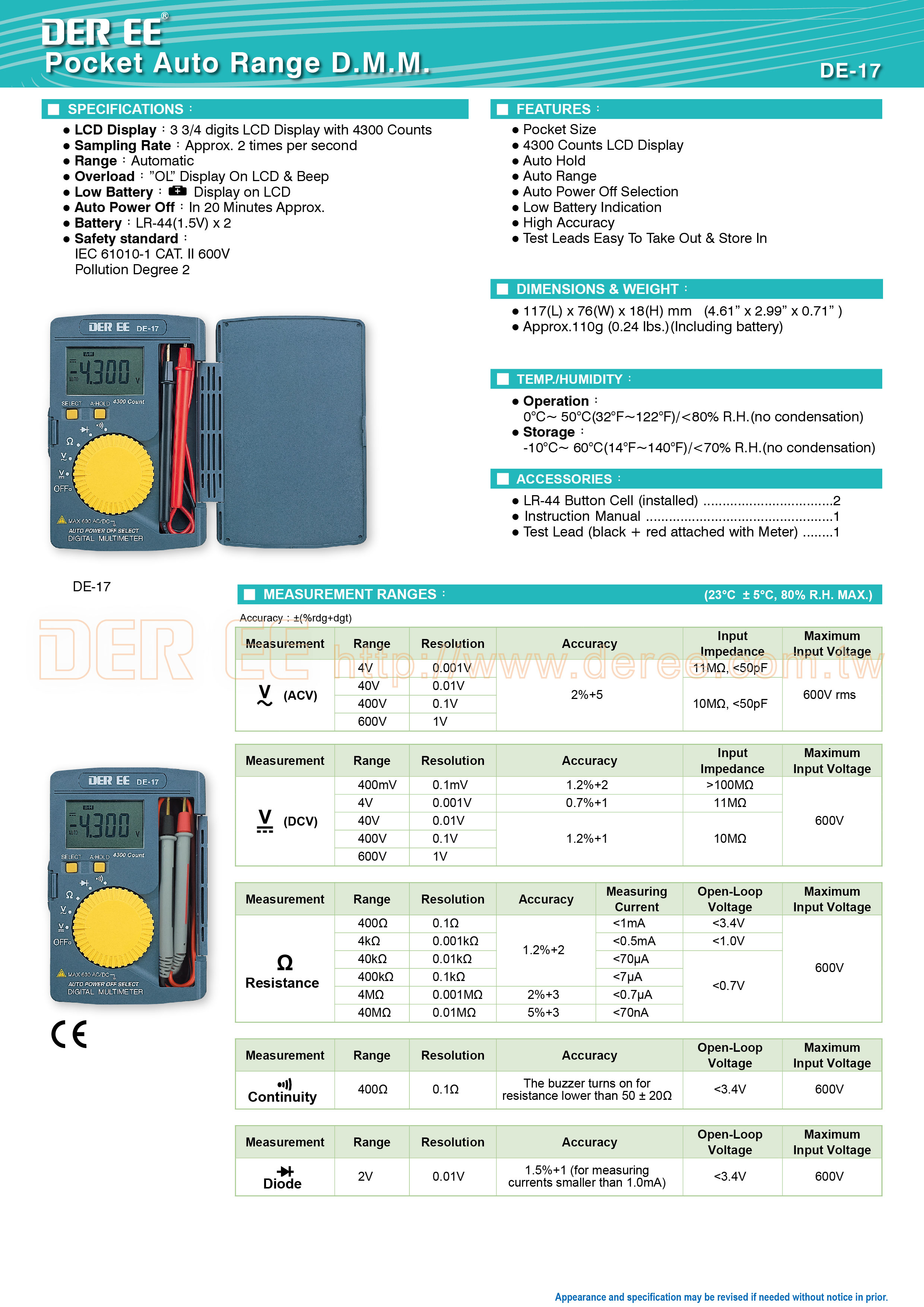

DE-17 Digital Multimeter (Pocket Size)
4300 Counts
Auto Hold; Auto Range
- Measurement Functions：DCV, ACV, Resistance, Diode, Buzzer
- LCD Display：3¾ digits LCD Display with 4300 Counts
- Sampling Rate：Approx. 2 Times/Sec.
- Range：Automatic
- Overload：”OL” Display On LCD & Beep
-
Low Battery：
Symbol Display
- Auto Power Off：In 20 Minutes Approx.
- Battery：LR-44 (1.5V) x2
-
Safety standard：IEC 61010-1 CAT. II 600V
Pollution Degree 2
Measurement Ranges：
23°C ±5°C, 80% R.H. MAX) Accuracy：±(%rdg+dgt)
|
Measurement |
Range |
Resolution |
Accuracy |
Input Impedance |
Maximum Input Voltage |
Open-Circuit Voltage |
|
DE-17 |
||||||
|
(DCV) |
400mV |
0.1mV |
1.2%+2 |
>100MΩ |
600V |
|
|
4V |
0.001V |
0.7%+1 |
11MΩ |
|||
|
40V |
0.01V |
1.2%+1 |
10MΩ |
|||
|
400V |
0.1V |
|||||
|
600V |
1V |
|||||
|
(ACV) |
4V |
0.001V |
2%+5 |
11MΩ ,<50pF |
600V rms |
|
|
40V |
0.01V |
10MΩ ,<50pF |
||||
|
400V |
0.1V |
|||||
|
600V |
1V |
|||||
|
(Resistance) |
400Ω |
0.1Ω |
1.2%+2 |
──── |
600V |
<3.4V |
|
4kΩ |
0.001kΩ |
<1.0V |
||||
|
40kΩ |
0.01kΩ |
<0.7V |
||||
|
400kΩ |
0.1kΩ |
|||||
|
4MΩ |
0.001MΩ |
2%+3 |
||||
|
40MΩ |
0.01MΩ |
5%+3 |
||||
|
(BUZZER) |
400Ω |
0.1Ω |
The buzzer turns on for resistance lower than 50±20Ω |
──── |
600V |
<3.4V |
|
(DIODE) |
2V |
0.01V |
1.5%+1 |
──── |
600V |
<3.4V |
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 117(L)x76(W)x18(H)mm
- Approx.110g (Including battery)
Accessories：
- LR-44 Button Cell (installed) x2
- Instruction Manual x1
- Test Lead (black + red attached with Meter) x1
- Pocket Size
- 4300 Counts LCD Display
- Auto Hold
- Auto Range
- Auto Power Off Selection
- Low Battery Indication
- High Accuracy
- Test Leads Easy To Take Out & Store In
