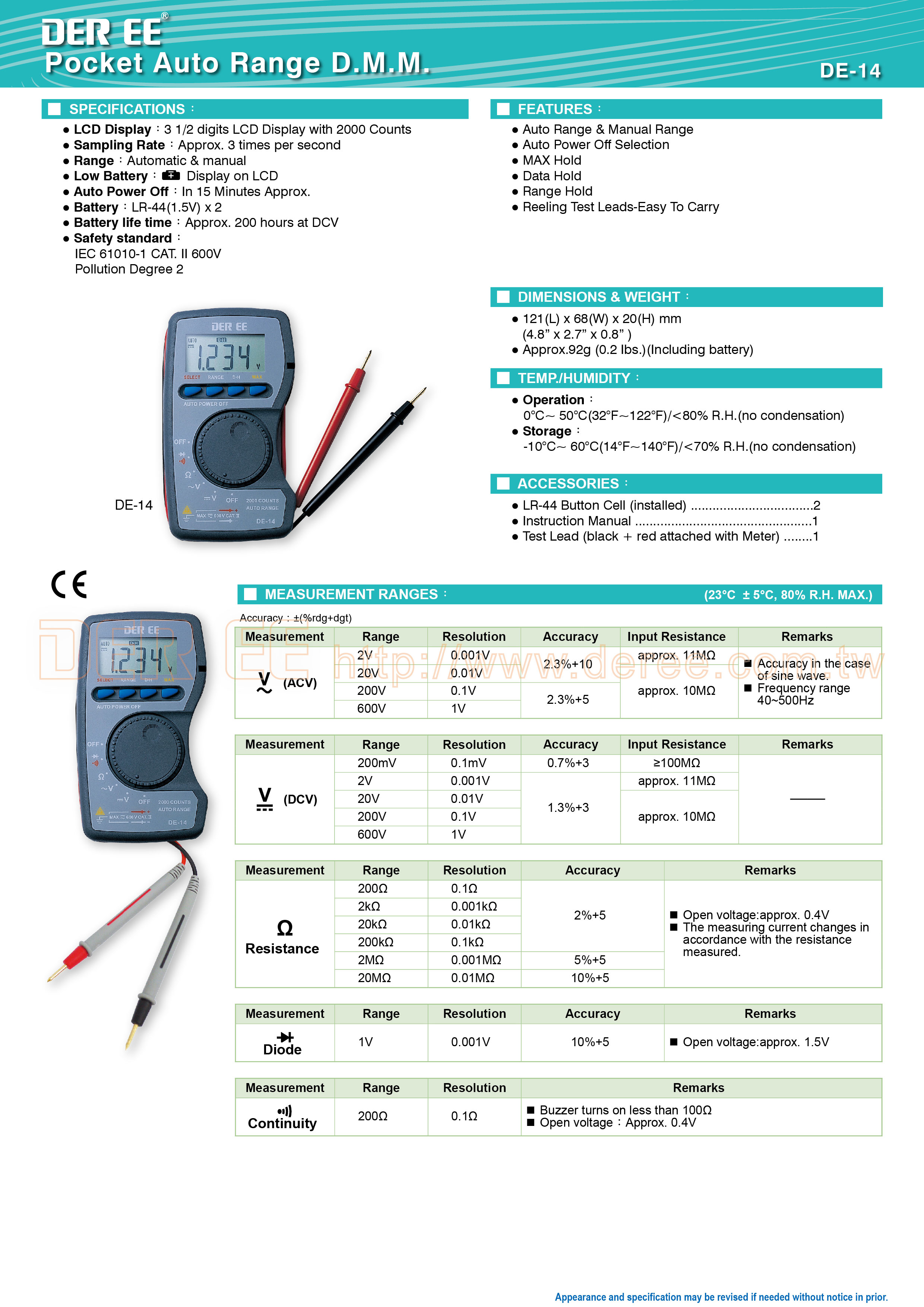

DE-14 Pocket Size Digital Multimeter
2000 Counts
Auto Range & Manual Range
Data Hold
- Measurement Functions：DCV, ACV, Resistance, Diode, Buzzer
- LCD Display：3 1/2 Digits LCD With 2000 Counts
- Range：Automatic & Manual
- Sampling Reading Rate：Approx. 3 Times/ Sec.
-
Low Battery：
Symbol Display
- Auto Power Off：In 15 Minutes Approx.
- Battery：LR-44x2
- Battery Life：Approx. 200 Hours At DCV
- Safety standard：IEC 61010-1 CAT. II 600V Pollution Degree 2
Measurement Ranges：
(23°C ±5°C, 80% R.H. MAX) Accuracy：±(%rdg+dgt)
|
Measurement |
Range |
Resolution |
Accuracy |
Input Resistance |
Remarks |
|
DE-14 |
|||||
|
(ACV) |
2V |
0.001V |
2.3%+10 |
approx. 11MΩ |
*Accuracy in the case of sine wave. *Frequency range 40~500Hz |
|
20V |
0.01V |
approx. 10MΩ |
|||
|
200V |
0.1V |
2.3%+5 |
|||
|
600V |
1V |
||||
|
(DCV) |
200mV |
0.1mV |
0.7%+3 |
≥100MΩ |
──── |
|
2V |
0.001V |
1.3%+3 |
approx. 11MΩ |
||
|
20V |
0.01V |
approx. 10MΩ |
|||
|
200V |
0.1V |
||||
|
600V |
1V |
||||
|
(Resistance) |
200Ω |
0.1Ω |
2%+5 |
──── |
*Open voltage:approx.0.4V *The measuring current changes in accordance with the resistance measured. |
|
2kΩ |
0.001kΩ |
||||
|
20kΩ |
0.01kΩ |
||||
|
200kΩ |
0.1kΩ |
||||
|
2MΩ |
0.001MΩ |
5%+5 |
|||
|
20MΩ |
0.01MΩ |
10%+5 |
|||
|
(DIODE) |
2V |
0.001V |
10%+5 |
──── |
Open voltage:approx.1.5V |
|
(BUZZER) |
200Ω |
0.1Ω |
──── |
──── |
*Buzzer turns on less than 100Ω *Open voltage：Approx. 0.4V |
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension
& Weight：
- 121(L)x68(W)x20(H)mm
- Approx.96g (Including battery)
Accessories：
- Instruction Manual x 1
- LR-44 Button Cell (installed) x 2
- Test Lead (black + red attached with Meter) x 1
- Auto Range & Manual Range
- Auto Power Off Selection
- MAX Hold
- Data Hold
- Range Hold
- Reeling Test Leads-Easy To Carry
