DE-15MCT Current Transformer
Insulation Impedance：DC 500V≧100MΩ
Applied Voltage：AC 2000V 1mA /1 Minute
Applied Voltage：AC 2000V 1mA /1 Minute
Model :
DE-15MCT
- Insulation Impedance：DC 500V≧100MΩ
- Withstand voltage：AC 2000V 1mA /1 Minute
- Operation ：0°C~40°C / <70% R.H.
- Storage：-10°C~50°C / <80% R.H.

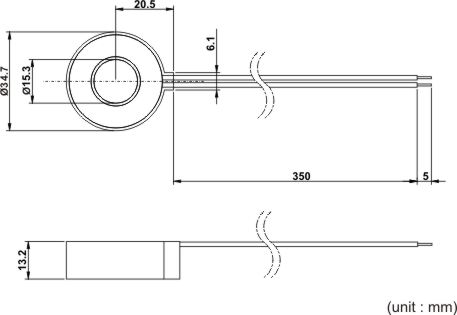

- Dimension (mm) : body - 15.3 (I.D.) x 34.7 (O.D.) x 13.2 (H) & wire - 350 (Length)
- Weight : 32g approx.
Standard Specification :
|
Model |
Primary Current (A) |
Secondary Current (mA) |
Accuracy |
|
30A / 50mA |
30A |
50mA |
±1% |
|
50A / 50mA |
50A |
50mA |
±1% |
|
100A / 50mA |
100A |
50mA |
±1% |
|
150A / 50mA |
150A |
50mA |
±1% |
