• DE-10MCT Current Transformer

DE-10MCT Current Transformer

Rating Current:AC 5A
Output:AC 2mA
Insulation Impedance:DC 500V≧100MΩ
Applied Voltage:AC 2000V 1mA /1 minute
Model : DE-10MCT

  • Rating Current:AC 5A
  • Output:AC 2mA
  • Insulation  Impedance:DC 500V≧100MΩ
  • Withstand voltage:AC 2000V 1mA /1 minute
  • Operation Environment:-10°C~50°C
  • Storage Environment:-20°C~75°C


  Measurement Ranges:


Model

Range

Primary current

(ACA)

Secondary current

(ACmA)

Accuracy

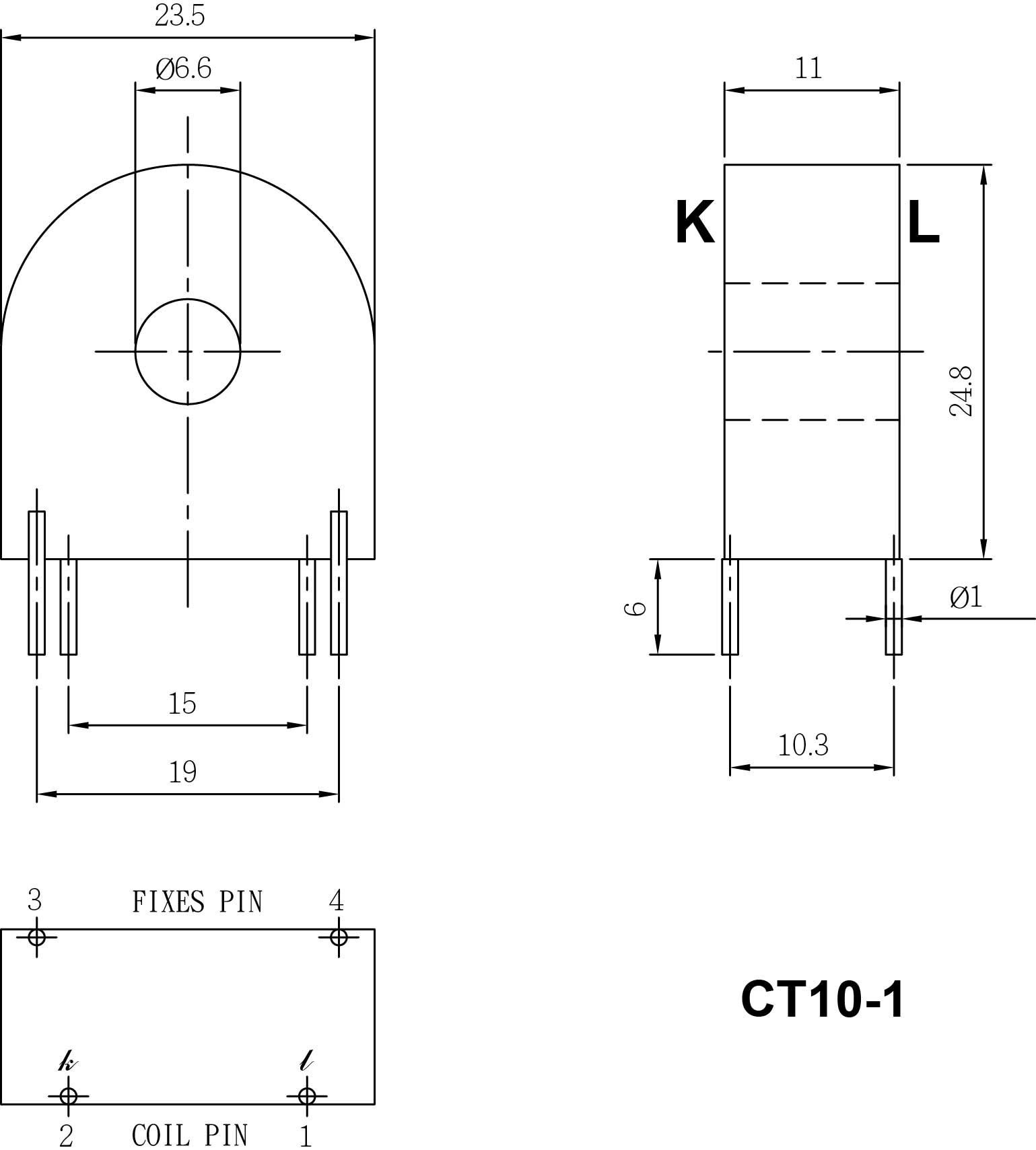

CT10-1

5A/2mA

5

2

±0.2%

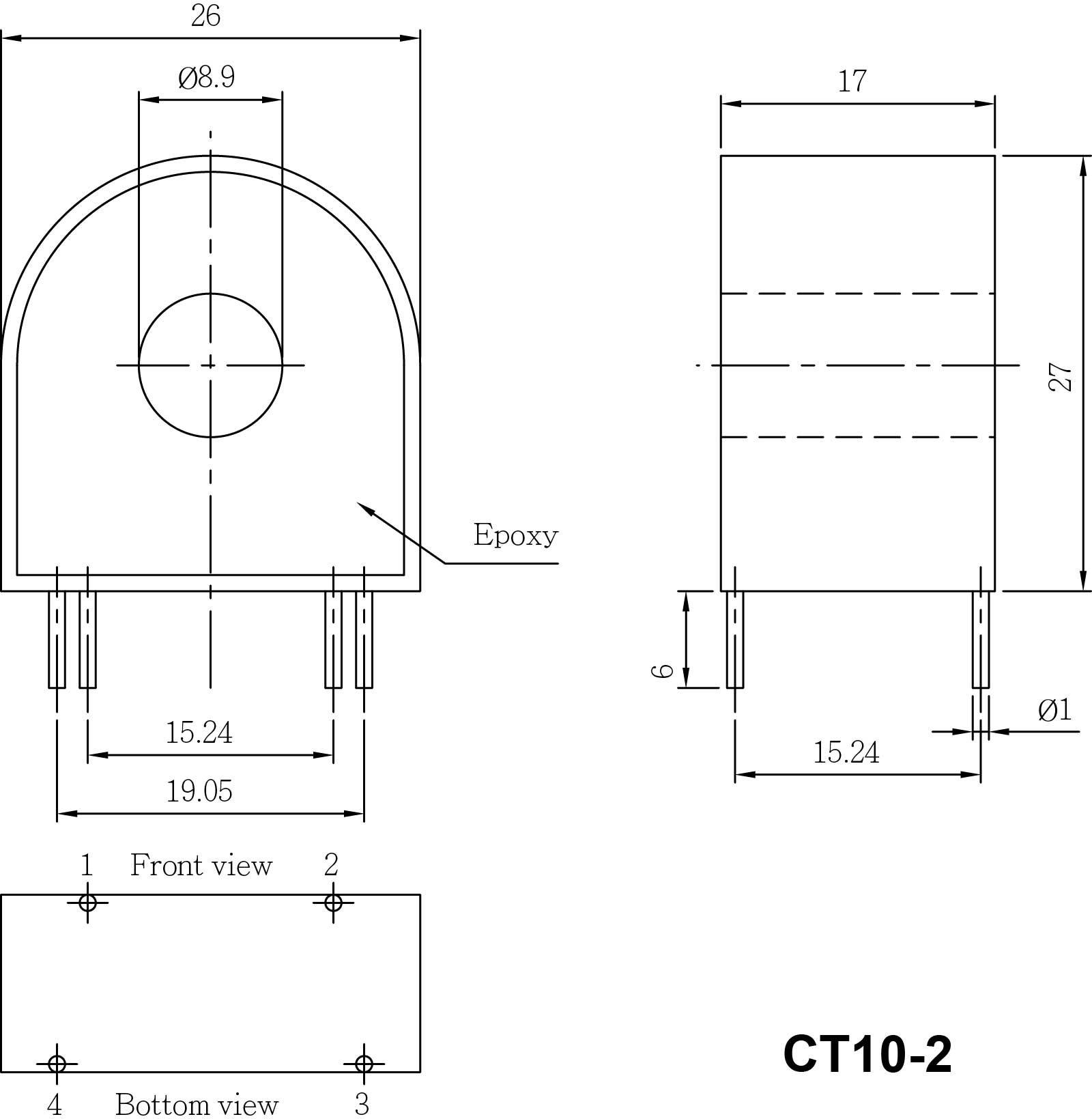

CT10-2

20A/25mA

20

25

±0.2%

40A/16mA

40

16

±0.2%
