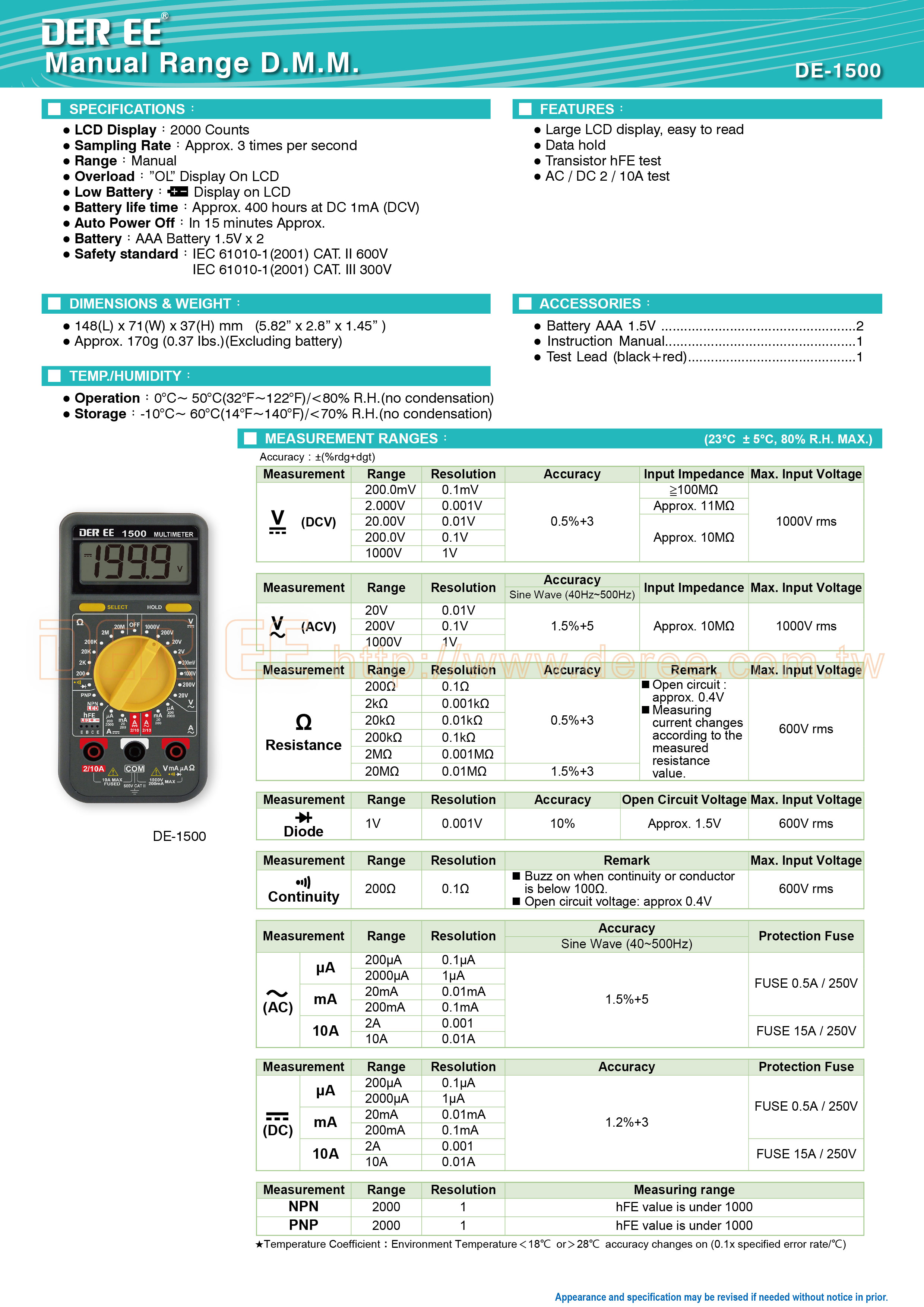

DE-1500 Digital Multimeter
Resistance, Diode, Buzzer
2000 Counts
- Measurement Functions：DCV, ACV, DCA, ACA, DCμA, ACμA, DCmA, ACmA,hFE, Resistance, Diode, Buzzer
-
LCD Display：2000 Counts
-
Sampling Rate：Approx. 3 times per second
-
Range： manual
-
Overload：”OL” Display On LCD
-
Low Battery：
Display on LCD
-
Auto Power Off：In 15 Minutes Approx.
- Battery：AAA 1.5V x2
-
Safety standard：IEC 61010-1(2001) CAT.II 600V
IEC 61010-1(2001) CAT.III 300V
Measurement Ranges：
23°C ± 5°C max. 75%R.H. Accuracy: ±(%rdg +dgt)
|
Measurement |
Range |
Resolution |
Accuracy |
Input Impedance |
Max. Input Voltage |
|
DC Voltage |
200.0mV |
0.1mV |
0.5%+3 |
≧100MΩ |
1000V rms |
|
2.000V |
0.001V |
Approx. 11MΩ |
|||
|
20.00V |
0.01V |
Approx. 10MΩ |
|||
|
200.0V |
0.1V |
||||
|
1000V |
1V |
|
Measurement |
Range |
Resolution |
Accuracy |
Input Impedance |
Max. Input Voltage |
|
AC Voltage |
20V |
0.01V |
1.0%+5 Sine Wave (40Hz~500Hz) |
Approx. 10MΩ |
1000V rms |
|
200V |
0.1V |
||||
|
1000V |
1V |
|
Measurement |
Range |
Resolution |
Accuracy |
Remark |
Max. Input Voltage |
|
Resistance |
200Ω |
0.1Ω |
0.5%+3 |
l Open circuit : l Measuring current changes according to the measured resistance value. |
600V rms |
|
2kΩ |
0.001kΩ |
||||
|
20kΩ |
0.01kΩ |
||||
|
200kΩ |
0.1kΩ |
||||
|
2MΩ |
0.001MΩ |
||||
|
20MΩ |
0.01MΩ |
1.5%+3 |
|
Measurement |
Range |
Resolution |
Accuracy |
Open Circuit Voltage |
Max. Input Voltage |
|
|
1V |
0.001V |
10% |
Approx. 1.5V |
600V rms |
|
Measurement |
Range |
Resolution |
Remark |
Max. Input Voltage |
|
|
200Ω |
0.1Ω |
l Buzz on when continuity or conductor is below 100Ω. l Open circuit voltage: approx 0.4V |
600V rms |
|
Measurement |
Range |
Resolution |
Accuracy |
Protection Fuse |
|
|
AC Current |
μA |
200μA |
0.1μA |
1.5%+5 Sine Wave (40~500Hz) |
FUSE 0.5A/250V |
|
2000μA |
1μA |
||||
|
mA |
20mA |
0.01mA |
|||
|
200mA |
0.1mA |
||||
|
10A |
2A |
0.001 |
FUSE 15A/250V |
||
|
10A |
0.01A |
||||
|
Measurement |
Range |
Resolution |
Accuracy |
Protection Fuse |
|
|
DC Current |
μA |
200μA |
0.1μA |
1.2%+3 |
FUSE 0.5A/250V |
|
2000μA |
1μA |
||||
|
mA |
20mA |
0.01mA |
|||
|
200mA |
0.1mA |
||||
|
10A |
2A |
0.001 |
FUSE 15A/250V |
||
|
10A |
0.01A |
||||
|
Measurement |
Range |
Resolution |
Measuring range |
Remark |
|
NPN |
2000 |
1 |
hFE value is under 1000 |
─ |
|
PNP |
2000 |
1 |
hFE value is under 1000 |
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 148(L)x76(W)x37(H)mm
- Approx.170g (Excluding battery)
Accessories：
- Battery AAA 1.5V x 2
- Instruction Manual x 1
- Test Lead (red + black) x 1
- Large LCD display, easy to read
- Data hold
- Transistor hFE test
- AC / DC 2 / 10A test
