Multimeters are widely used by professionals and DIY enthusiasts alike, offering a quick and efficient method to identify electrical faults, verify connections, and ensure systems operate safely. With different types available—analog for monitoring fluctuating signals and digital for precise numerical readings—choosing the right multimeter depends on specific needs.

This article explores what a multimeter is, how it works, the various types available, and its essential applications in home, industrial, and educational settings. Whether you’re a beginner or an expert, understanding how to use a multimeter effectively can save time, enhance safety, and improve troubleshooting accuracy.

What Is a Multimeter? Definition and Functions

A multimeter is a fundamental tool in electrical and electronic work, designed to measure key electrical parameters with precision. Whether used by electricians, engineers, or hobbyists, this versatile device helps diagnose, troubleshoot, and maintain electrical systems efficiently.

At its core, a multimeter performs three primary functions:

• Voltage Measurement (AC/DC): This function determines the electrical potential difference in a circuit, ensuring proper voltage levels in power sources, outlets, and electronic components. It helps detect overvoltage or undervoltage issues that could damage sensitive equipment.
• Current Measurement: By measuring electrical current (in amperes), a multimeter helps evaluate whether a circuit is drawing the correct amount of power. This is crucial for identifying overloads or inefficiencies in electrical systems.
• Resistance Measurement: A multimeter tests resistance (measured in ohms) to determine whether a component or wire is functioning properly. High resistance may indicate a damaged or faulty component, while low resistance ensures a proper electrical connection.

Beyond these core functions, modern digital multimeters (DMMs) offer advanced capabilities:

• Capacitance Measurement: Determines the ability of a capacitor to store electrical charge, essential in circuit design and maintenance.
• Frequency Measurement: Checks the frequency of alternating current (AC) signals, vital for verifying the performance of power supplies and oscillators.
• Temperature Measurement: Some models include a thermocouple input for monitoring temperature, useful in HVAC and industrial applications.
• Continuity Testing: Emits an audible beep when a continuous path is detected in a circuit, simplifying troubleshooting.

Multimeter Structure: Key Components

A multimeter is designed with several essential components that work together to provide accurate electrical measurements. Understanding these key parts is crucial for effective operation and troubleshooting.

• Display: The display presents measurement readings in either analog or digital format. Analog multimeters use a moving needle to indicate values on a scale, requiring careful interpretation. Digital multimeters (DMMs) feature an LCD or LED screen that provides precise numerical readings, often with additional indicators such as battery status or measurement mode.
• Measurement Circuits: These internal electronic components process input signals and convert them into readable values. The accuracy and speed of these circuits determine the reliability of the multimeter. High-quality multimeters feature advanced circuitry to minimize errors and interference.
• Selection Dial/Switch: The central dial or rotary switch allows users to select the desired function—voltage, current, resistance, or additional features like continuity or capacitance. Some auto-ranging multimeters automatically adjust the measurement range, while manual models require users to select the appropriate scale.
• Input Ports: Multimeters have multiple input terminals, usually labeled as COM (common, black probe) and VΩmA (voltage, resistance, milliampere, red probe). Some models include specialized ports for high-current or frequency measurements.
• Test Leads: These insulated probes establish contact with electrical components for measurement. They typically come in red (positive) and black (negative) and are designed for durability and safety. High-end models may include interchangeable probe tips for different applications.

Types of Multimeters

Multimeters are broadly classified into two main types: analog multimeters and digital multimeters (DMMs). Each has distinct advantages, making them suitable for different applications.

1. Analog Multimeters (Needle Display)

Analog multimeters use a moving needle to display readings on a graduated scale. These devices operate by deflecting a needle in response to the measured electrical parameter.
Key features:

• Ideal for monitoring fluctuating signals, such as varying voltage or current in AC circuits.
• Provides a real-time response to changes, which is useful in diagnosing unstable circuits.
• Requires careful interpretation of scale markings, which may lead to reading errors if not handled properly.

Analog multimeters are still used in some applications, particularly where a smooth signal response is necessary. However, they have largely been replaced by digital models due to the latter's ease of use and accuracy.

2. Digital Multimeters (DMMs)

Digital multimeters have become the industry standard due to their accuracy, reliability, and additional features. They display measurement values numerically on an LCD or LED screen, eliminating the potential for reading errors associated with analog scales.
Key features:

• Provides precise numerical readings, improving measurement accuracy.
• Equipped with auto-ranging capabilities, allowing the device to automatically select the appropriate measurement range.
• Offers advanced features, such as frequency, capacitance, and temperature measurement, making them versatile for various applications.

Due to their ease of use and accuracy, DMMs are the preferred choice for professionals and hobbyists alike, whether for home electrical testing, industrial maintenance, or laboratory work.

How to Use a Multimeter & Safety Precautions

How to Use a Multimeter

Using a multimeter correctly ensures accurate readings and prevents damage to both the device and the circuit. Follow these steps for safe and effective measurements:
1. Select the appropriate measurement mode – Choose the correct setting based on what you need to measure (voltage, current, resistance, etc.). Some digital multimeters have an auto-ranging feature that simplifies this step.
2. Insert test leads into the correct input terminals – The black lead always goes into the COM (common) port, while the red lead is inserted into the appropriate port (VΩ for voltage and resistance, mA/A for current measurements).
3. Place the probes on the component or circuit being tested – Ensure proper contact with the test points for accurate readings.
4. Read the measurement displayed on the screen – Digital models will show a precise numerical value, while analog meters require interpreting the needle position.
5. Switch off the multimeter after use – This helps conserve battery life and ensures the device is ready for the next use.

Safety Precautions

• Always start with the highest range setting to prevent overloading the meter.
• Never measure resistance in a powered circuit to avoid damaging the multimeter.
• Use insulated probes and handle them carefully to prevent electrical shocks.
• Follow safety standards, especially when working with high voltage, and always wear appropriate protective gear.

Multimeter Applications

Multimeters are versatile tools used across various fields, from home maintenance to industrial and educational settings. Their ability to measure voltage, current, and resistance makes them indispensable for diagnosing and troubleshooting electrical issues.

1. Home Electrical Testing

Multimeters are commonly used in household electrical maintenance to ensure appliances and power sources are functioning correctly.

• Checking outlet voltage helps verify whether power supply levels are within a safe range, preventing potential damage to electronics.
• Testing batteries allows users to determine if they still hold a charge, helping avoid unexpected power failures in essential devices.
• Diagnosing malfunctions in household appliances such as refrigerators, washing machines, and microwaves can save time and repair costs.

2. Electronic Component Testing & Troubleshooting

For electronics enthusiasts, technicians, and engineers, multimeters are crucial in diagnosing and repairing circuit issues.

• Testing resistors, capacitors, and transistors helps identify faulty components that could be disrupting a circuit’s performance.
• Checking circuit continuity ensures proper connections between components, preventing failures due to loose wiring or broken traces.
• Measuring voltage drops across components can pinpoint power supply inconsistencies, helping diagnose malfunctioning circuit boards.

3. Industrial Equipment Maintenance

In industrial settings, multimeters play a vital role in maintaining and repairing electrical systems and machinery.

• Used in preventive maintenance, they help technicians inspect electrical panels, wiring, and motors before failures occur.
• Identifying malfunctions in motor circuits prevents costly downtime and extends the lifespan of industrial machines.
• Troubleshooting power supply issues and automation systems ensures that control circuits and sensors function correctly.

4. Education & Learning

Multimeters are widely used as educational tools in electrical engineering and technical training programs.

• Instructors use them to teach students how to measure electrical parameters and understand circuit behavior.
• Students gain hands-on experience in building and troubleshooting circuits, preparing them for real-world applications.

Multimeters: the Essential Tool for Electrical Testing

Multimeters are invaluable for measuring voltage, current, and resistance in homes, electronics, and industrial applications. They help diagnose electrical issues, ensure safety, and optimize performance. Whether troubleshooting a household appliance, testing circuit components, or maintaining industrial machinery, a reliable multimeter is a must-have tool.

Founded in 1981, DER EE is a Taiwanese company based in New Taipei City, specializing in electrical instruments. Initially focused on analogue meters, DER EE has expanded our product range to include clamp meters, True RMS multimeters, insulation testers, and more. The company holds ISO 9001:2000 certification and operates with a dedicated R&D team.

For expert advice on choosing the best multimeter, Contact DER EE.  If you need a versatile and high-precision model, the DE-208A Digital Multimeter is a top recommendation. Investing in the right multimeter ensures safer troubleshooting, accurate measurements, and long-term reliability for any electrical task.

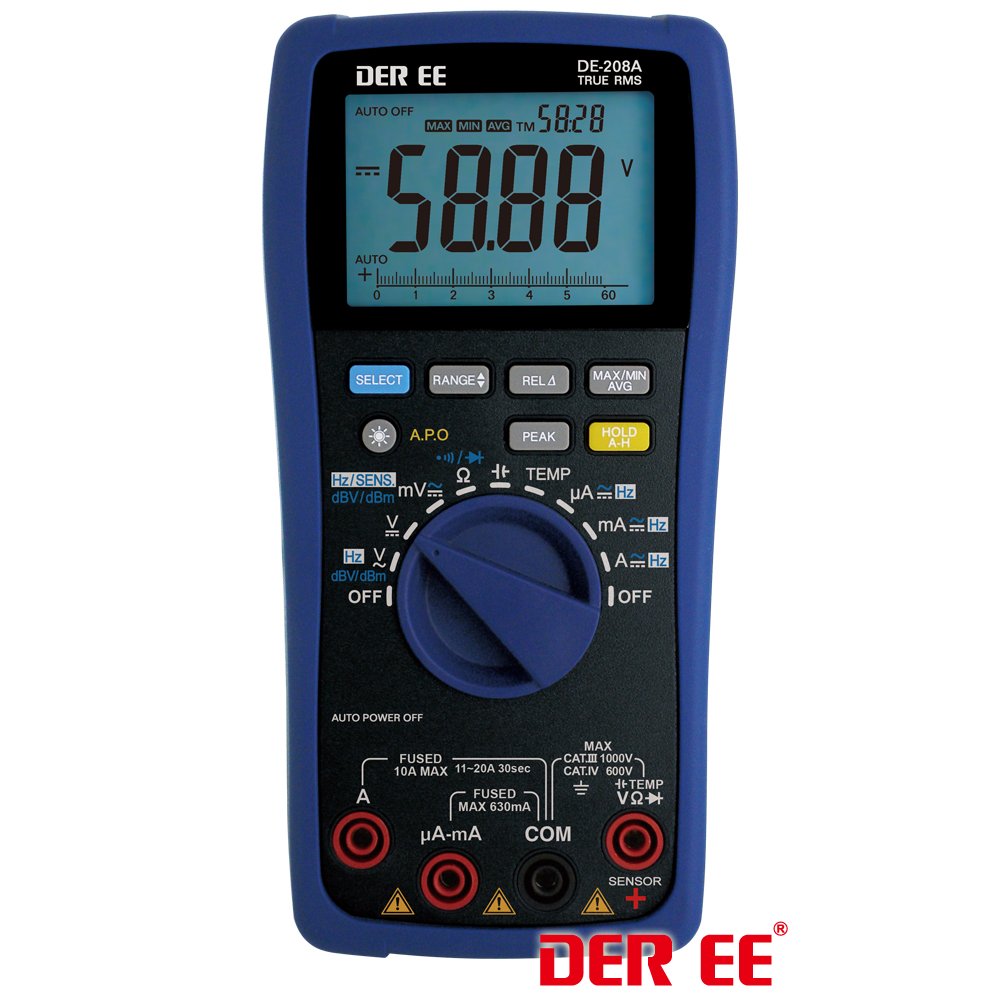

▲The DE-208A Multimeter is a durable, accurate, and user-friendly tool for electricians. Drawing from decades of experience with various multimeters, the DE-208A is a robust, semi-rugged option that adheres to the latest safety standards, including CAT III ratings and HRC fuses. It offers easy fuse and battery replacement and supports advanced features like data logging and automatic current measurement, making it a reliable choice for everyday electrical tasks.
