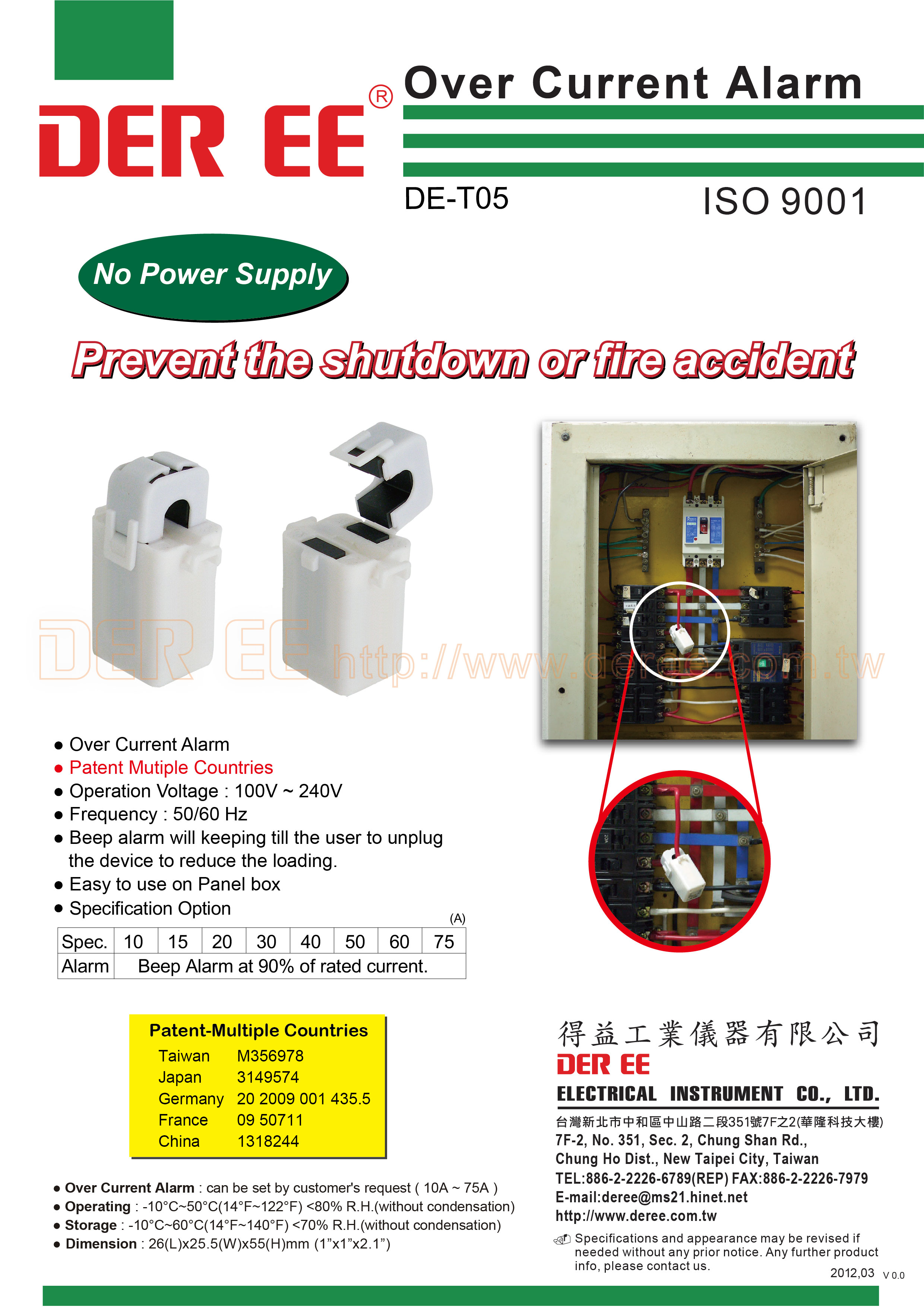

DE-T05 Over Current Alarm
Operation Voltage: 100V~240V.
Frequency: 50/60 Hz.
Spec.: 10, 15, 20, 30, 40, 50, 60, 75A.
Beep Alarm at 90% of rated current.
Frequency: 50/60 Hz.
Spec.: 10, 15, 20, 30, 40, 50, 60, 75A.
Beep Alarm at 90% of rated current.
Model :
DE-T05
Specifications
Operation Voltage: 100V~240V
Frequency: 50 / 60 Hz
| Spec. | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 75 |
| Alarm | Beep Alarm at 90% of rated current. | |||||||
Over Current Alarm:
- Can be set by customer’s request (10A~75A)
TEMP./Humidity:
- Operation: -10°C~ 50°C(14℉~122℉)/<80% R.H. (no condensation)
- Storage: -10°C~ 60°C(14℉~140℉)/<70%R.H. (no condensation)
Dimension:
- 26(L)*25.5(W)*55(H)mm
Features
- Patent Multiple Countries.
- Power supply free.
- Prevent the shutdown or fire accident.
- Beep alarm keeps beeping till the user to unplug the device to reduce the loading.

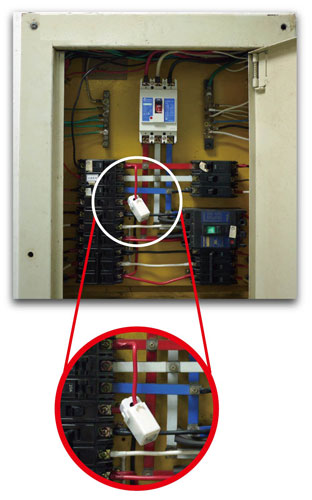

- Easy to use on Panel box.
- Specification Option.
Applications
