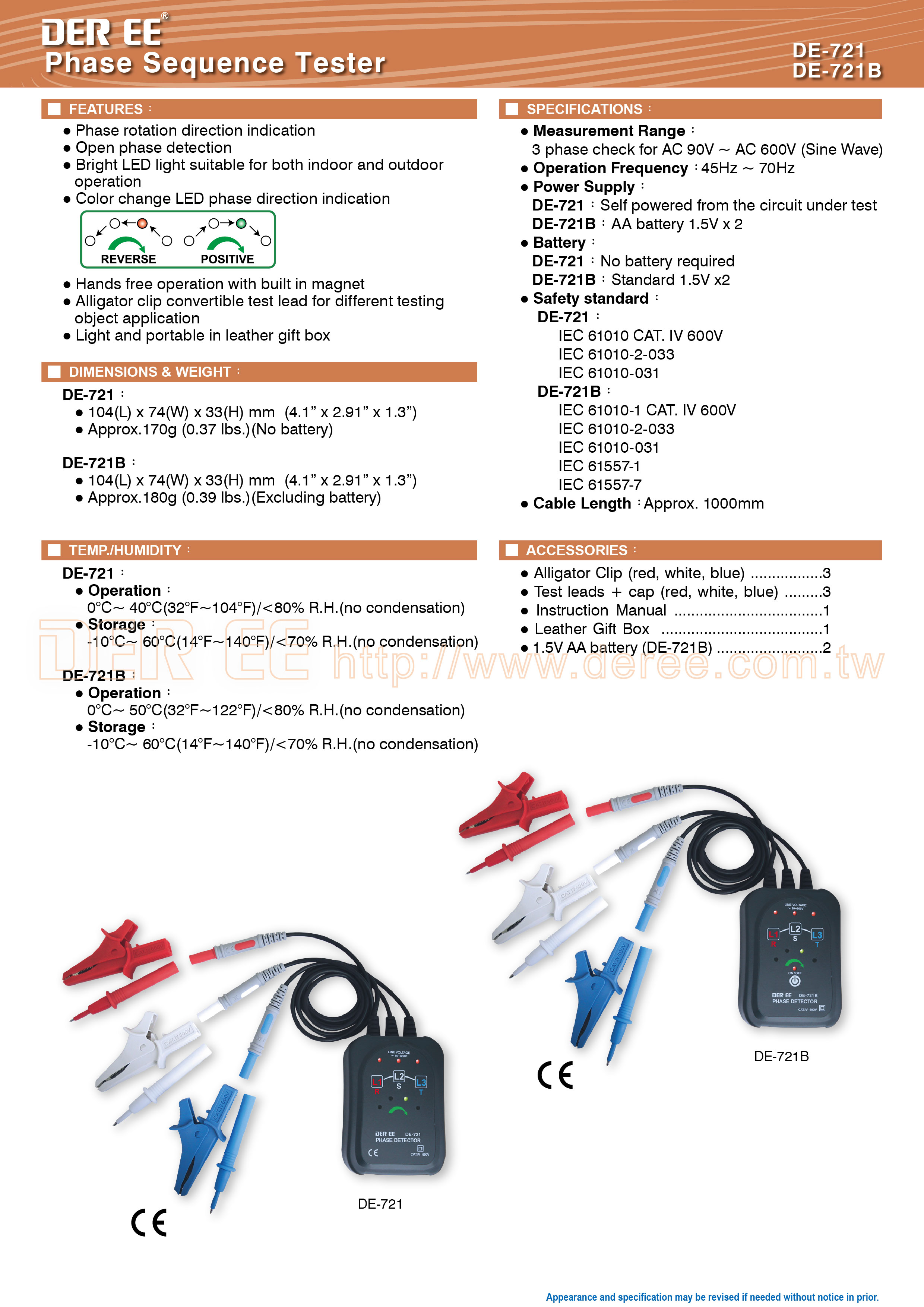

DE-721B Phase Sequence Tester
3 phase check for AC90V~600V
Open phase detection
Phase rotation direction Indication
Small light and portable in carrying pouch
Safety Standard:IEC61010, IEC61010-2-033, IEC61557-1, IEC61557-7,IEC-61010-031
Open phase detection
Phase rotation direction Indication
Small light and portable in carrying pouch
Safety Standard:IEC61010, IEC61010-2-033, IEC61557-1, IEC61557-7,IEC-61010-031
Model :
DE-721B
- Measurement Range:3 phase check for AC 90V ~ AC 600V (Sine Wave)
- Operation Frequency:45Hz ~ 70Hz
-
Power
Supply:AA 1.5V x 2
-
Safety Standard:
IEC 61010-1 CAT.IV 600V
IEC 61010-2-033
IEC 61010-031
IEC 61557-1
IEC 61557-7

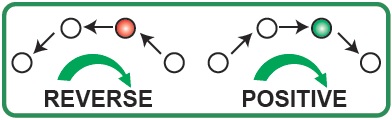

- Color change LED phase direction indication
TEMP./Humidity:
- Operation:0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage:-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight:
- 104(L)x74(W)x33(H)mm
- Approx. 310g (Excluding battery)
Accessories:
- Alligator Clip (red, white, blue) x 3
- Test leads + cap (red, white, blue) x 3
- Instruction Manual x 1
- Leather Gift Box x 1
- 1.5V AA battery x 2
- Phase rotation direction indication
- Open phase detection
- Bright LED light suitable for both indoor and outdoor operation
- Hands free operation with built in magnet
- Alligator clip convertible test lead for different testing object application
- Light and portable in leather gift box
