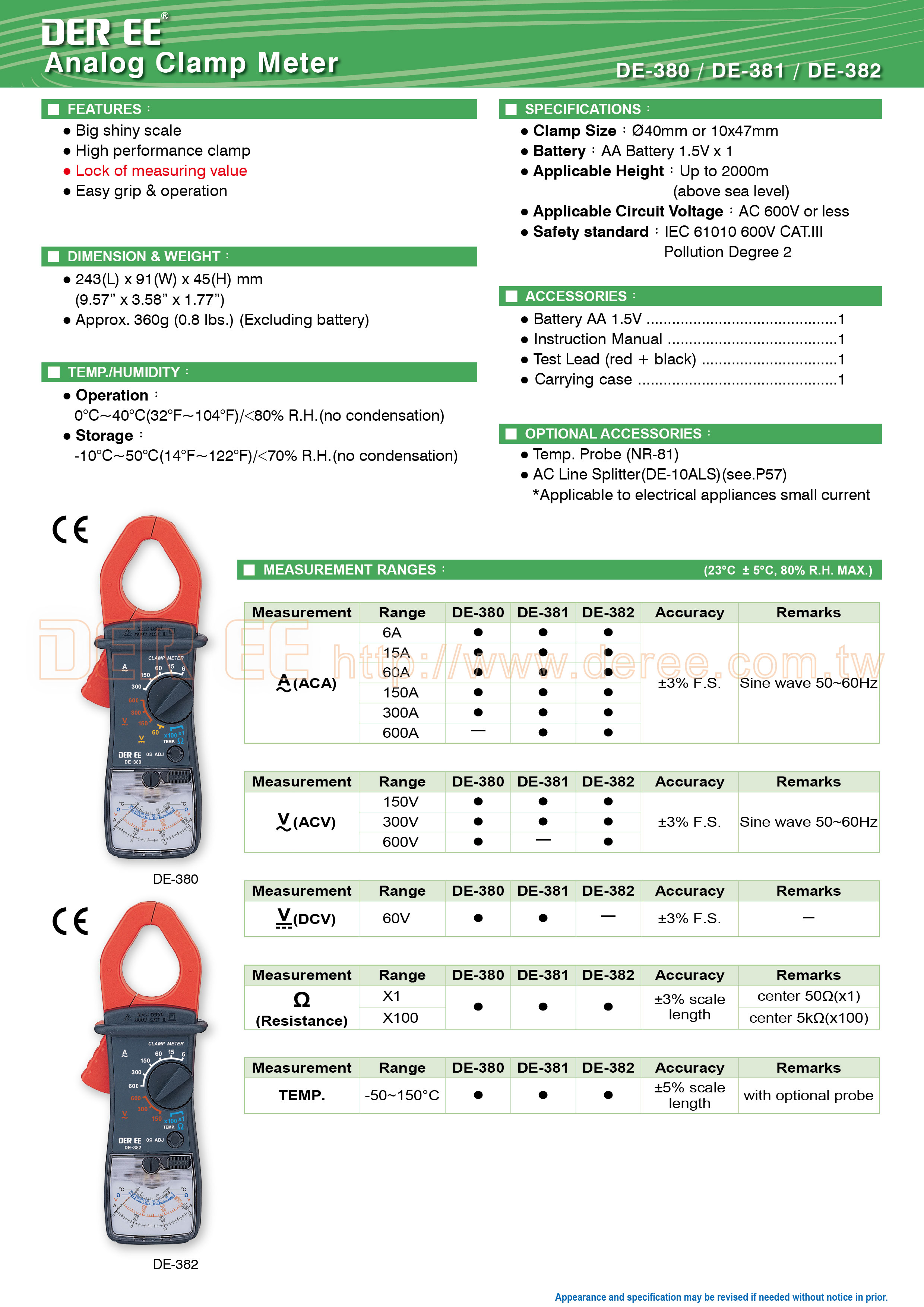

DE-380 Analog Clamp Meter
Clamp Size ∅40mm
Big shiny scale
High performance clamp
Lock of measuring value
- Clamp Size：Ø40mm or 10x47mm
- Battery： AA Battery 1.5V x 1
- Applicable Height：Up to 2000m (above sea level)
- Applicable Circuit Voltage：AC 600V or less
- Safety standard：IEC 61010 600V CAT.III Pollution Degree 2
Measurement Ranges：
23°C ± 5°C max. 80%R.H.
|
Measurement |
Range |
DE-380 |
DE-381 |
DE-382 |
Accuracy |
Remarks |
|
(ACA) |
6A |
● |
● |
● |
±3% F.S. |
Sine wave 50~60Hz |
|
15A |
● |
● |
● |
|||
|
60A |
● |
● |
● |
|||
|
150A |
● |
● |
● |
|||
|
300A |
● |
● |
● |
|||
|
600A |
|
● |
● |
|||
|
(ACV) |
150V |
● |
● |
● |
±3% F.S. |
Sine wave 50~60Hz |
|
300V |
● |
● |
● |
|||
|
600V |
● |
|
● |
|||
|
(DCV) |
60V |
● |
● |
|
±3% F.S. |
|
|
(Resistance) |
X1 |
● |
● |
● |
±3% scale length |
center 50Ω(x1) |
|
X100 |
center 5kΩ(x100) |
|||||
|
TEMP. |
-50°~150°C |
● |
● |
● |
±5% scale length |
with optional probe |
TEMP./Humidity：
- Operation：0°C~ 40°C(32℉~104℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 50°C(14℉~122℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 243(L)x91(W)x45(H)mm
- Approx.360g (Including battery)
Accessories：
- Battery AA 1.5V x1
- Instruction Manual x1
- Test Lead (red + black) x 1
- Carrying case x1
Optional Accessories：
- Temp. Probe (NR-81)
-
AC Line Splitter(DE-10ALS)
*Applicable to electrical appliances small current
