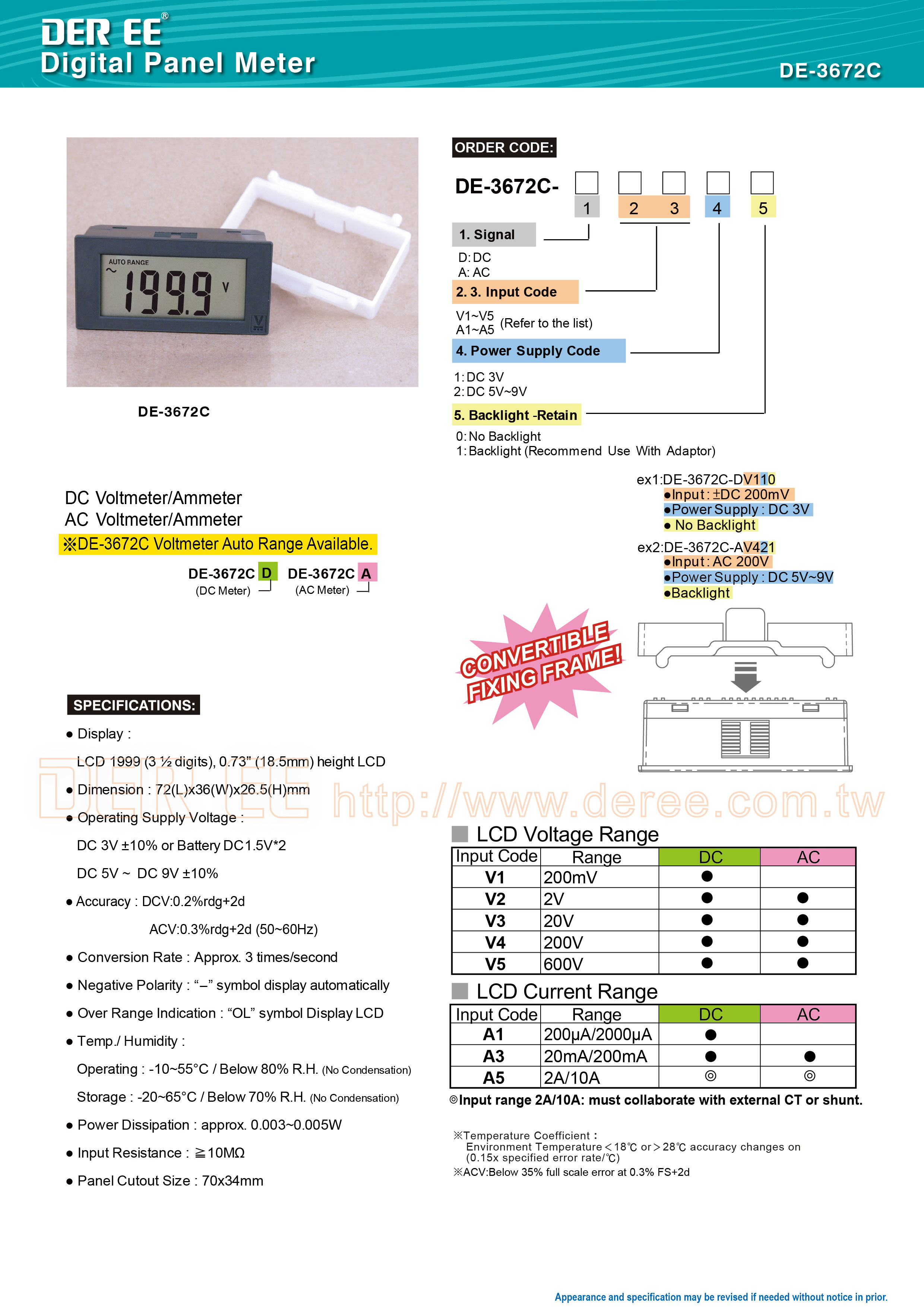

DE-3672C LCD Panel Meter
DE-3672CA LCD AC Voltmeter / Ammeter
Accuracy:DCV:0.2% rdg+2d,ACV:0.3% rdg+2d (50~60Hz)
- Display:LCD 3 ½ (1999) digits, 0.73" (18.5mm) height LCD
- Operating Supply Voltage:DC 3V ±10% or Battery 1.5V x 2, DC 5V~DC 9V ±10%
-
Accuracy:DCV:0.2%
rdg+2d
ACV:0.3% rdg+2d (50~60Hz) - Conversion Rate:Approx. 3 times / second
- Negative Polarity:“-” symbol display automatically
-
Over Range Indication:“OL”
symbol display LCD
- Power Dissipation:approx. 0.003~0.005W
- Input Resistance:≧10MΩ
LCD Voltage Range:
Input Code |
Range |
DC |
AC |
V1 |
200mV |
● |
|
V2 |
2V |
● |
● |
V3 |
20V |
● |
● |
V4 |
200V |
● |
● |
V5 |
600V |
● |
● |
LCD Current Range:
Input Code |
Range |
DC |
AC |
A1 |
200uA/2000uA |
● |
|
A3 |
20mA/200mA |
● |
● |
A5 |
2A/10A |
◎ |
◎ |
◎Input range 2A/10A:must collaborate with external CT or shunt.
Temp./ Humidity :
- Operating:-10~55°C / Below 80% R.H. (No Condensation)
- Storage: -20~65°C / Below 70% R.H. (No Condensation)
Dimension:
- Dimension:72x36x26.5mm
Panel Cutout Size:
- 70x34mm
- DE-3672CD LCD DC Voltmeter / Ammeter
- DE-3672CA LCD AC Voltmeter / Ammeter
