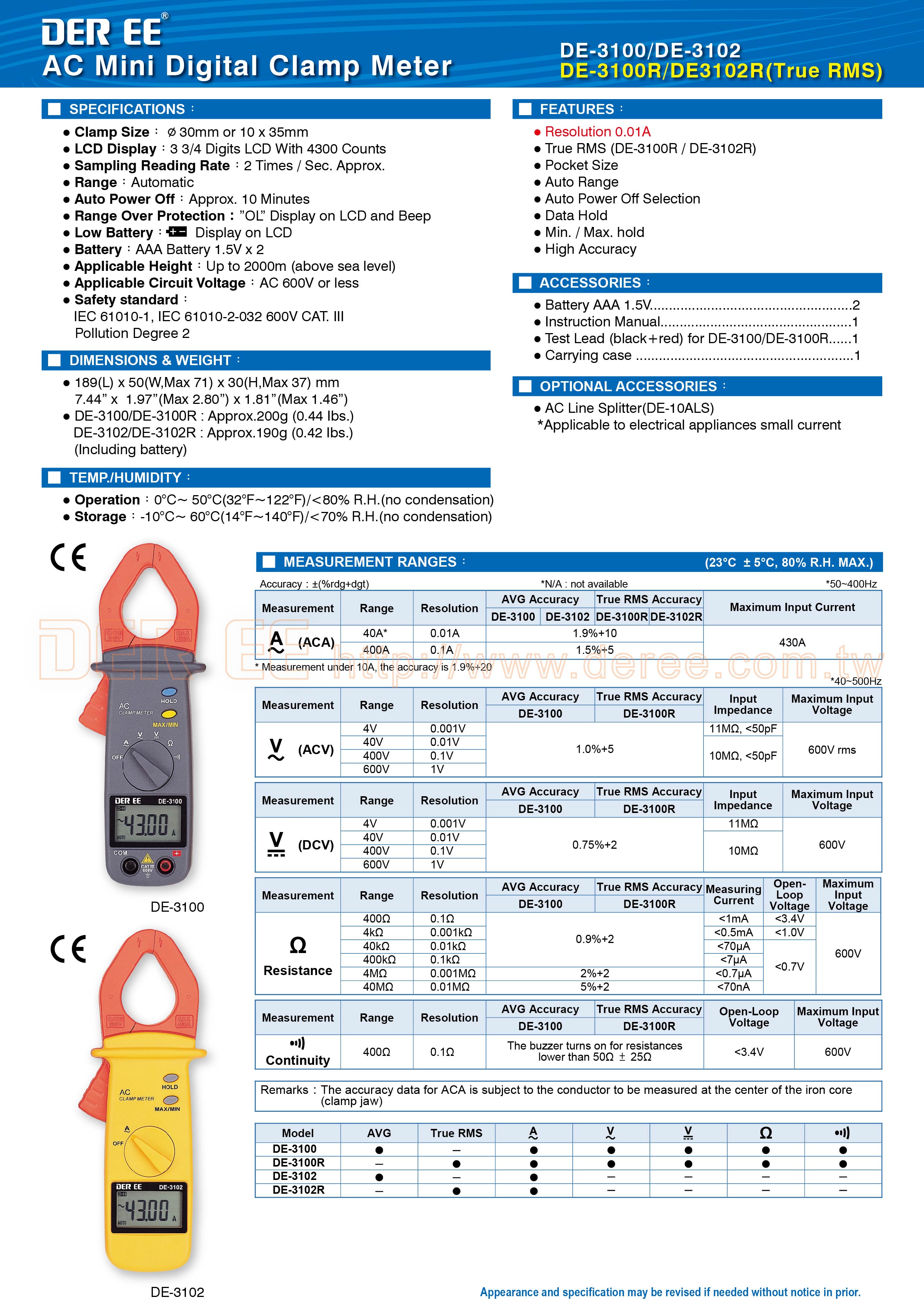

DE-3100R AC Clamp Meter (Pocket Size)
True RMS
Max. 400A; Clamp Size ∅30mm
Data, Max./Min. hold
Auto range
Over range indication: OL & beep
4300 counts
- Measurement Functions：ACA, ACV, DCV, Resistance, Buzzer
- Clamp Size : φ30mm or 10x35mm
- LCD Display : 3 3/4 Digits LCD With 4300 Counts
- Applicable Circuit Voltage : AC 600V or less
- Sampling Reading Rate : 2 Times/ Sec. Approx.
- Range : Automatic
- Applicable Height : Up to 2000m (above sea level)
- Auto Power Off : Approx. 10 Minutes
- Over Range Protection : “OL” Display on LCD and Beep
-
Low Battery :
Display on LCD
- Battery : AAA Battery 1.5V x2
- Safety standard : IEC 61010-1 ,IEC 61010-2-032 600V CAT III Pollution Degree 2
Measurement Ranges：
(23°C ±5°C, 80% R.H. MAX) Accuracy：±(%rdg+dgt)
Measurement
Range
Resolution
AVG Accuracy
True RMS
Accuracy
Input Impedance
Open-Loop Voltage
DE-3100
DE-3100R
(ACA)
40A
0.01A
1.9%+10
────
400A
0.1A
1.5%+5
(ACV)
4V
0.001V
1.0%+5
11MΩ, <50pF
40V
0.01V
10MΩ, <50pF
400V
0.1V
600V
1V
(DCV)
4V
0.001V
0.75%+2
11MΩ
40V
0.01V
10MΩ
400V
0.1V
600V
1V
(Resistance)
400Ω
0.1Ω
0.9%+2
────
<3.4V
4kΩ
0.001kΩ
<1.0V
40kΩ
0.01kΩ
<0.7V
400kΩ
0.1kΩ
4MΩ
0.001MΩ
2%+2
40MΩ
0.01MΩ
5%+2
(BUZZER)
400Ω
0.1Ω
The
buzzer turns on for resistances lower 50Ω±25Ω
────
<3.4V
※Remarks : The accuracy data for ACA is subject to the conductor to be measured at the center of the iron core (clamp jaw)
Temp./Humidity :
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension& Weight :
- 189(L)x50(W,Max71)x30(H,Max47)mm
- Approx.200g (Including battery)
Accessories :
- Battery AAA 1.5V x2
- Instruction Manual x1
- Test Leads (red+black)for DE-3100/DE3100R x1
- Carrying case x1
Optional Accessories :
- AC Line Splitter(DE-10ALS)
- Auto Power Off Selection
- Auto Range
- True RMS
- Data Hold
-
Max. / Min. Hold
- Resolution 0.01A
- Pocket Size
-
High Accuracy
