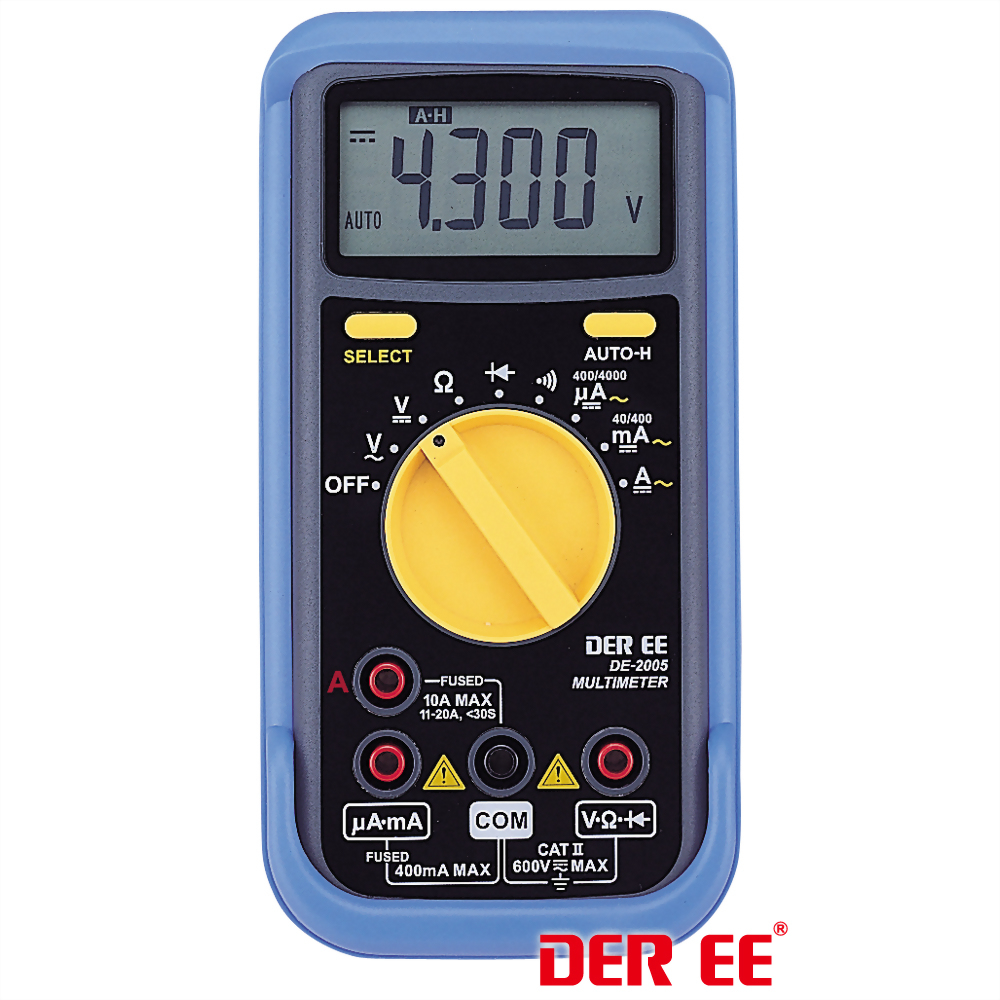

DE-2005 Digital Multimeter (D.M.M)
Resistance, Diode, Buzzer, Capacitance
4300 Counts
- Measurement Functions：DCV, ACV, DCA, ACA, Resistance, Diode, Buzzer, Capacitance
-
LCD Display：3 3/4 Digits With 4300 Counts Digits Display
(Capacitor Check：2300 Counts, Diode Test：210 Counts.) - Reading Rate：Approx. 2 Times/Sec.
- Range：Automatic
- Overload：”OL” Display On LCD
-
Low Battery：
Symbol Display on LCD
- Auto Power Off：In 20 Minutes Approx.
- Battery：9V x 1
-
Safety standard：EN 61010-1 & EN 61010-2-031 600V CAT.II
EN 55011 Class B & EN 50082-1
Measurement Ranges：
23°C ± 5°C max. 80%R.H. Accuracy: ±(%rdg +dgt)
|
Measurement |
Range |
Resolution |
Accuracy |
Input Impedance |
Max. Input Voltage |
Open-Loop Voltage |
|
|
DE-2005 |
DE-2006 |
||||||
|
|
400mV |
0.1mV |
0.5%+1 |
0.5%+1 |
>100MΩ |
600V |
──── |
|
4V |
0.001V |
11MΩ |
|||||
|
40V |
0.01V |
0.75%+1 |
10MΩ |
||||
|
400V |
0.1V |
||||||
|
600V |
1V |
||||||
|
|
4V |
0.001V |
1%+5 |
11MΩ; <50pF |
600V |
──── |
|
|
40V |
0.01V |
10MΩ; <50pF |
|||||
|
400V |
0.1V |
||||||
|
600V |
1V |
||||||
|
|
400Ω |
0.1Ω |
0.75%+2 |
──── |
600V |
<3.4V |
|
|
4kΩ |
0.001kΩ |
0.75%+1 |
<1.0V |
||||
|
40kΩ |
0.01kΩ |
<0.7V |
|||||
|
400kΩ |
0.1kΩ |
||||||
|
4MΩ |
0.001MΩ |
2%+1 |
|||||
|
40MΩ |
0.01MΩ |
5%+2 |
|||||
|
|
400Ω |
0.1Ω |
The buzzer turns on for resistances lower than ≦50±20Ω. |
──── |
600V |
<3.4V |
|
|
|
2V |
0.01V |
1%+1 |
──── |
600V |
<3.4V |
|
|
Measurement |
Range |
Resolution |
Accuracy |
Input Impedance |
Max. Input Voltage |
Protection Fuse |
|
|
DE-2005 |
DE-2006 |
||||||
|
|
20nF |
0.01nF |
──── |
2%+5 |
──── |
─── |
500mA/250V |
|
200nF |
0.1nF |
||||||
|
2μF |
0.001μF |
||||||
|
20μF |
0.01μF |
||||||
|
200μF |
0.1μF |
||||||
|
Measurement |
Range |
Resolution |
Accuracy |
Voltage Drop |
Max. Input Current |
||
|
DE-2005 |
DE-2006 |
||||||
|
|
μA |
400μA |
0.1μA |
1%+2 |
<0.17mV/μA |
400mA |
|
|
4000μA |
1μA |
||||||
|
mA |
40mA |
0.01mA |
<3mV/mA |
||||
|
400mA |
0.1mA |
||||||
|
A |
10A |
0.01A |
2%+2 |
<0.04V/A |
10A (15A/250V) fuse |
||
|
|
|
|
|
|
|
|
|
|
Measurement |
Range |
Resolution |
Accuracy |
Voltage Drop |
Max. Input Current |
||
|
DE-2005 |
DE-2006 |
||||||
|
|
μA |
400μA |
0.1μA |
2%+20 |
<0.17mV/μA |
400mA |
|
|
4000μA |
1μA |
2%+5 |
|||||
|
mA |
40mA |
0.01mA |
2%+20 |
<3mV/mA |
|||
|
400mA |
0.1mA |
2%+5 |
|||||
|
A |
10A |
0.01A |
2.5%+20 |
<0.04V/A |
10A (15A/250V) fuse |
||
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 148(L)x71(W)x37(H)mm
- Approx.220g (Including battery)
Accessories：
- Battery 9V x 1
- Instruction Manual x 1
- Test Lead (red + black) x 1
- Rubber Holster + Stand Rack x 1
- Auto Hold
- Auto Power Off Selection
- Auto Range
- Big Current Under Protection
- High Accuracy
