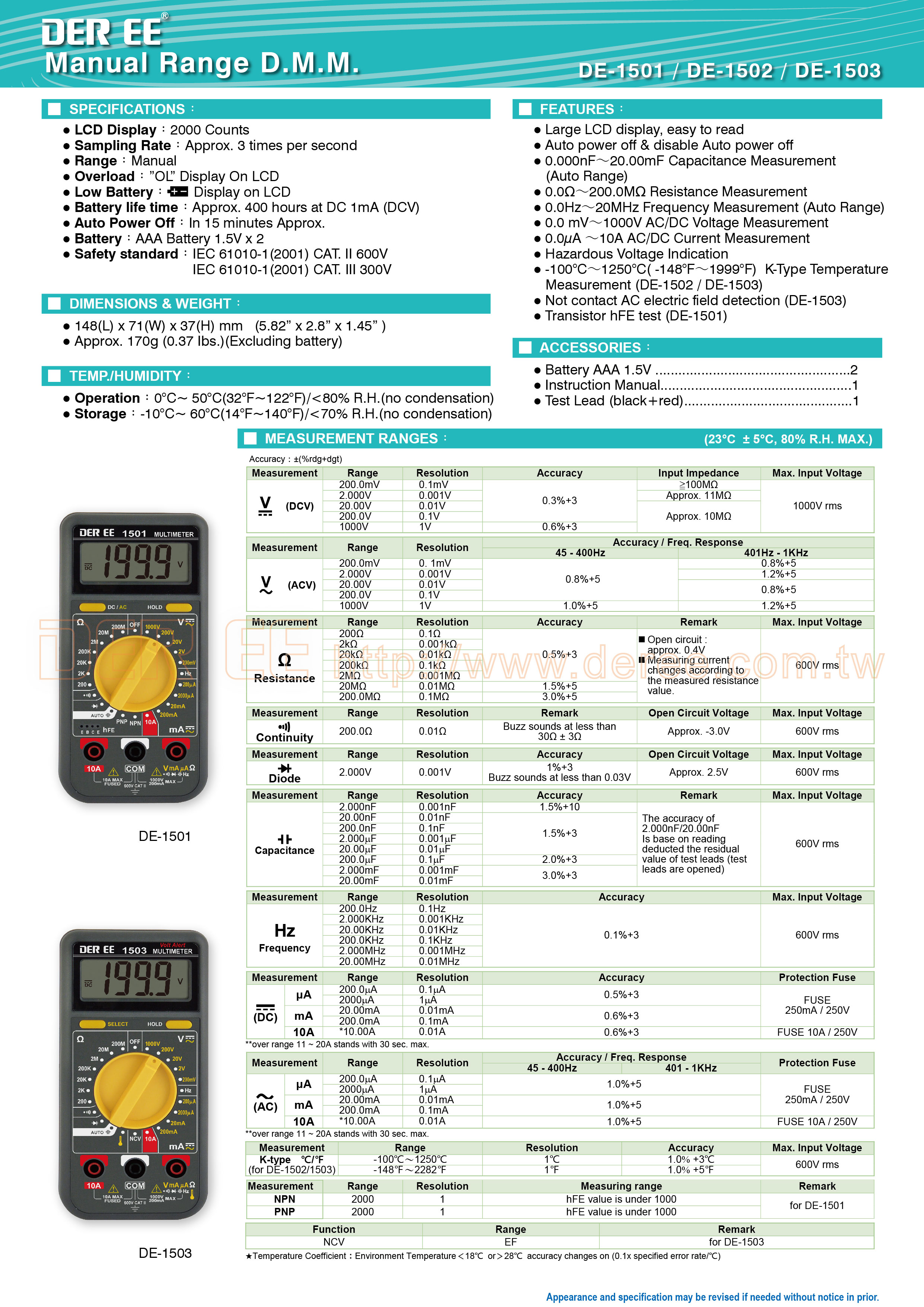

DE-1501 Digital Multimeter
Resistance, Diode, Buzzer
2000 Counts
-
Measurement Functions：DCV, ACV, DCA, ACA, DCμA, ACμA, DCmA, ACmA,hFE, Resistance, Diode, Buzzer
- LCD Display：2000 Counts
- Sampling Rate：Approx. 3 times per second
- Range： manual
- Overload：”OL” Display On LCD
-
Low Battery：
Display on LCD
- Auto Power Off：In 15 Minutes Approx.
- Battery：AAA 1.5V x2
-
Safety Standard：IEC 61010-1(2001) CAT.II 600V
IEC 61010-1(2001) CAT.III 300V
Measurement Ranges：
23°C ± 5°C max. 80%R.H. Accuracy: ±(%rdg +dgt)
|
Measurement |
Range |
Resolution |
Accuracy |
Input Impedance |
Max. Input Voltage |
|
DC Voltage |
200.0mV |
0.1mV |
0.3%+3 |
Approx. 10MΩ |
1000V rms |
|
2.000V |
0.001V |
||||
|
20.00V |
0.01V |
||||
|
200.0V |
0.1V |
||||
|
1000V |
1V |
0.6%+3 |
|
Measurement |
Range |
Resolution |
Accuracy / Freq. Response |
Max. Input Voltage |
|
|
45- 400Hz |
401Hz- 1KHz |
||||
|
AC Voltage |
200.0mV |
0. 1mV |
0.8%+5 |
0.8%+5 |
1000V rms |
|
2.000V |
0.001V |
1.2%+5 |
|||
|
20.00V |
0.01V |
0.8%+5 |
|||
|
200.0V |
0.1V |
||||
|
1000V |
1V |
1.0%+5 |
1.2%+5 |
||
|
Measurement |
Range |
Resolution |
Accuracy |
Remark |
Max. Input Voltage |
|
Resistance |
200Ω |
0.1Ω |
0.5%+3 |
l Open circuit : l Measuring current changes according to the measured resistance value. |
600V rms |
|
2kΩ |
0.001kΩ |
||||
|
20kΩ |
0.01kΩ |
||||
|
200kΩ |
0.1kΩ |
||||
|
2MΩ |
0.001MΩ |
||||
|
20MΩ |
0.01MΩ |
1.5%+5 |
|||
|
200.0MW |
0.1MW |
3.0%+5 |
|
Measurement |
Range |
Resolution |
Remark |
Max. Input Voltage |
|
|
200Ω |
0.1Ω |
l Bz sounds at less than 30Ω±3Ω l Open circuit voltage: approx -3.0V |
600V rms |
|
Measurement |
Range |
Resolution |
Accuracy |
Open Circuit Voltage |
Max. Input Voltage |
|
|
2.000V |
0.001V |
1%+3 Bz sounds at less than 0.03V |
Approx. 2.5V |
600V rms |
|
Measurement |
Range |
Resolution |
Accuracy |
Remark |
Max. Input Voltage |
|
Capacitance |
2.000nF |
0.001nF |
1.5%+10 |
The accuracy of Is base on reading deducted the residual value of test leads (test leads are opened) |
600V rms |
|
20.00nF |
0.01nF |
1.5%+3 |
|||
|
200.0nF |
0.1nF |
||||
|
2.000μF |
0.001μF |
||||
|
20.00μF |
0.01μF |
2.5%+3 |
|||
|
200.0μF |
0.1μF |
||||
|
2.000mF |
0.001mF |
3.5%+3 |
|||
|
20.00mF |
0.01mF |
|
Measurement |
Range |
Resolution |
Accuracy |
Remark |
Max. Input Voltage |
|
Hz |
200.0Hz |
0.1Hz |
1.0%+3 |
Accuracy based on square wave. |
600V rms |
|
2.000KHz |
0.001KHz |
||||
|
2.000KHz |
0.001KHz |
||||
|
20.00KHz |
0.01KHz |
||||
|
200.0KHz |
0.1KHz |
||||
|
2.000MHz |
0.001MHz |
||||
|
20.00MHz |
0.01MHz |
|
Measurement |
Range |
Resolution |
Accuracy |
Protection Fuse |
|
|
DC Current |
μA |
200.0μA |
0.1μA |
0.5%+3 |
FUSE 250mA/ 250V |
|
2000μA |
1μA |
||||
|
mA |
20.00mA |
0.01mA |
0.6%+3 |
||
|
200.0mA |
0.1mA |
||||
|
10A |
10.00A |
0.01A |
0.6%+3 |
FUSE 15A/250V |
|
|
Measurement |
Range |
Resolution |
Accuracy / Freq. Response |
Protection Fuse |
||
|
45- 400Hz |
401- 1KHz |
|||||
|
AC Current |
μA |
200.0μA |
0.1μA |
1.5%+5 |
FUSE 250mA/ 250V |
|
|
2000μA |
1μA |
1.0%+5 |
||||
|
mA |
20.00mA |
0.01mA |
1.5%+5 |
|||
|
200.0mA |
0.1mA |
1.0%+5 |
||||
|
10A |
10.00A |
0.01A |
1.0%+5 |
FUSE 15A/250V |
||
|
|
|
|
|
|
|
|
|
Measurement |
Range |
Resolution |
Accuracy |
Max. Input Voltage |
|
K-type ℃/℉ (for DE-1502/1503) |
-100℃～1250℃ |
1℃ |
1.0% +3℃ |
600V rms |
|
-148℉～1999℉ |
1℉ |
1.0% +5℉ |
|
Measurement |
Range |
Resolution |
Measuring range |
Remark |
|
NPN |
2000 |
1 |
hFE value is under 1000 |
for DE-1501 |
|
PNP |
2000 |
1 |
hFE value is under 1000 |
|
Function |
Range |
Remark |
|
NCV |
EF |
for DE-1503 |
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 148(L)x76(W)x37(H)mm
- Approx.170g (Excluding battery)
Accessories：
- Battery AAA 1.5V x 2
- Instruction Manual x 1
- Test Lead (red + black) x 1
- Large LCD display, easy to read
- Auto power off & disable Auto power off
- 0.000nF～20.00mF Capacitance Measurement (Auto Range)
- 0.0Ω～200.0MΩ Resistance Measurement
- 0.0Hz～20MHz Frequency Measurement (Auto Range)
- 0.0 mV～1000V AC/DC Voltage Measurement
- 0.0μA ～10A AC/DC Current Measurement
- Hazardous Voltage Indication
- -100℃～1250℃( -148℉～1999℉) K-Type Temperature Measurement (1502/ 1503)
- Not contact AC electric field detection (1503)
- Transistor hFE test ( 1501)
