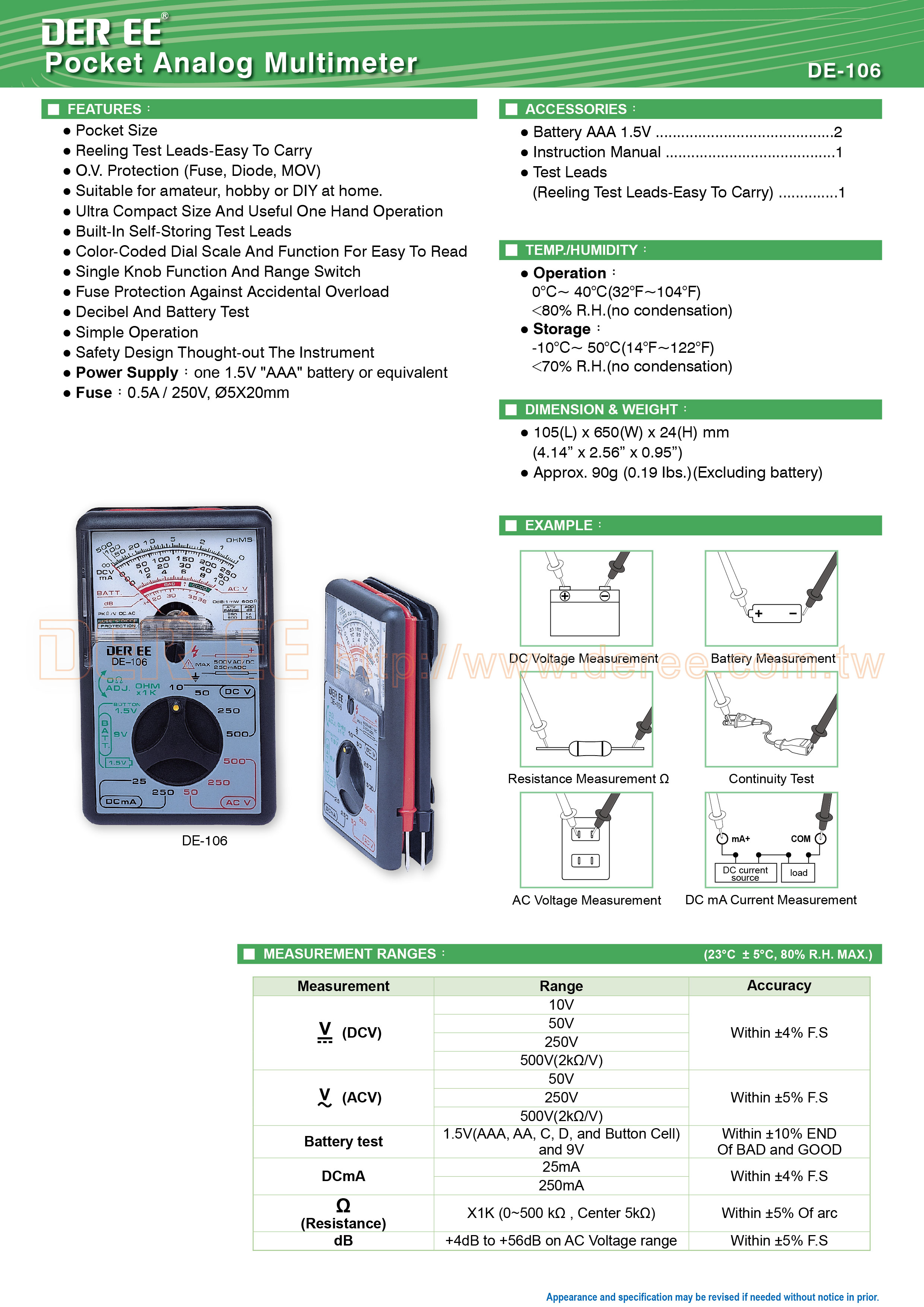

DE-106 Pocket Size Analog Multimeter
Pocket size
O.V. Protection (Fuse, Diode, MOV)
Suitable for amateur, hobby or DIY at home.
Measurement Ranges：
23°C ± 5°C max. 80%R.H.
|
Measurement |
Range |
Accuracy |
|
DCV |
10V |
Within ±4% F.S |
|
50V |
||
|
250V |
||
|
500V(2kΩ/V) |
||
|
ACV |
50V |
Within ±5% F.S |
|
250V |
||
|
500V(2kΩ/V) |
||
|
Battery test |
1.5V(AAA, AA, C, D, and Button Cell) and 9V |
Within ±10% END Of BAD & GOOD |
|
DCmA |
25mA |
Within ±4% F.S |
|
250mA |
||
|
(Resistance) |
X1K (0~500 kΩ , Center 5kΩ) |
Within ±5% Of arc |
|
dB |
+4dB to +56dB on AC Voltage range |
Within ±5% F.S |
TEMP./Humidity：
- Operation：0°C~ 40°C(32℉~104℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 50°C(14℉~122℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 105(L)x65(W)x24(H)mm
- Approx.89g (Excluding battery)
Accessories：
- Battery AAA 1.5V x 1
- Instruction Manual x 1
- Test Lead (Reeling Test Leads-Easy To Carry) x 1
- Pocket Size
- Reeling Test Leads-Easy To Carry
- O.V. Protection (Fuse, Diode, MOV)
- Suitable for amateur, hobby or DIY at home.
