Ammeter shunt

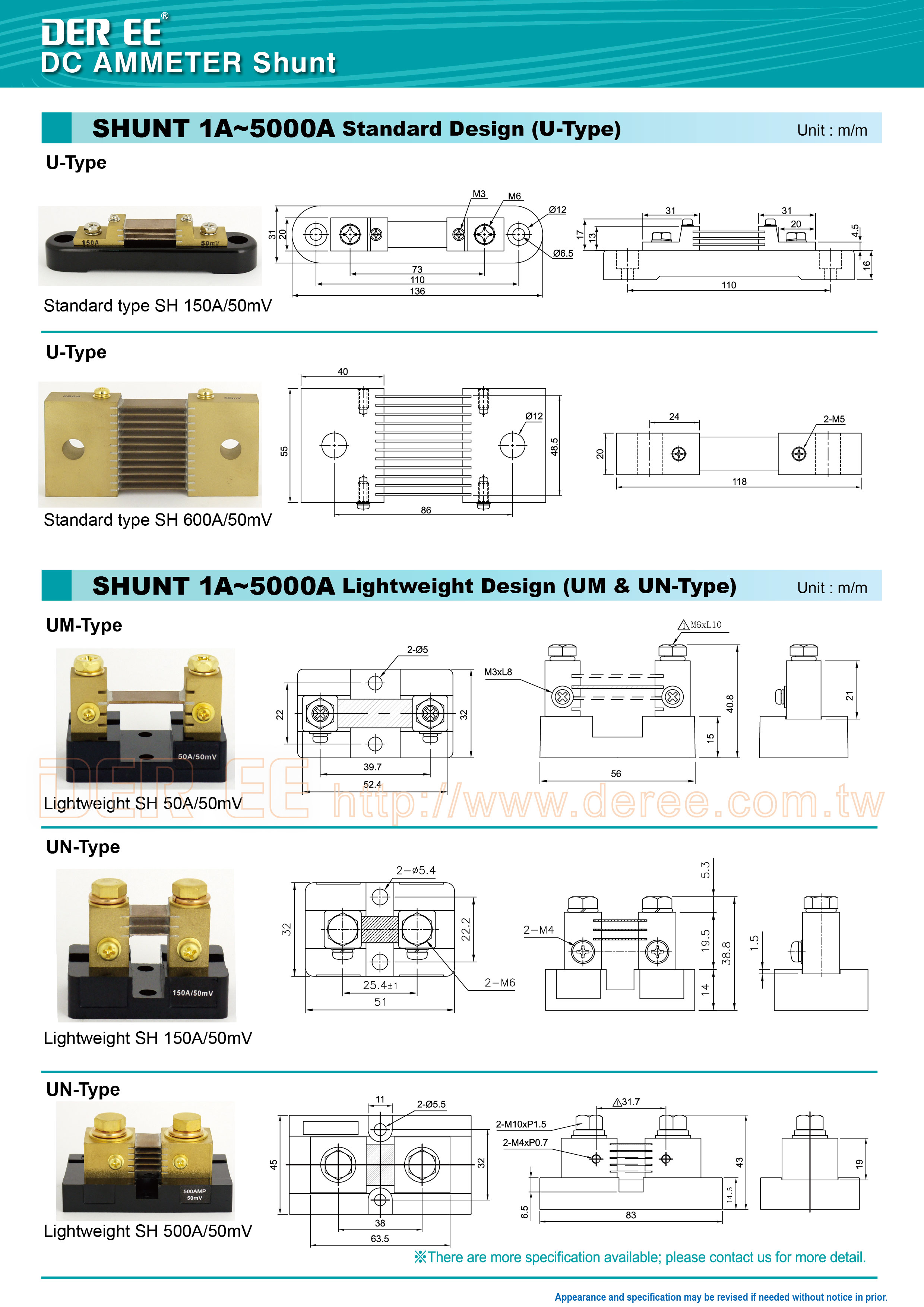

High-quality Shunt series DC ammeter shunts with measuring ranges from 1A up to 5000A in different types such as lightweight, with or without base.
Model :
Shunt
Specifications
| Type | Specification | Drawing No. |
|---|---|---|

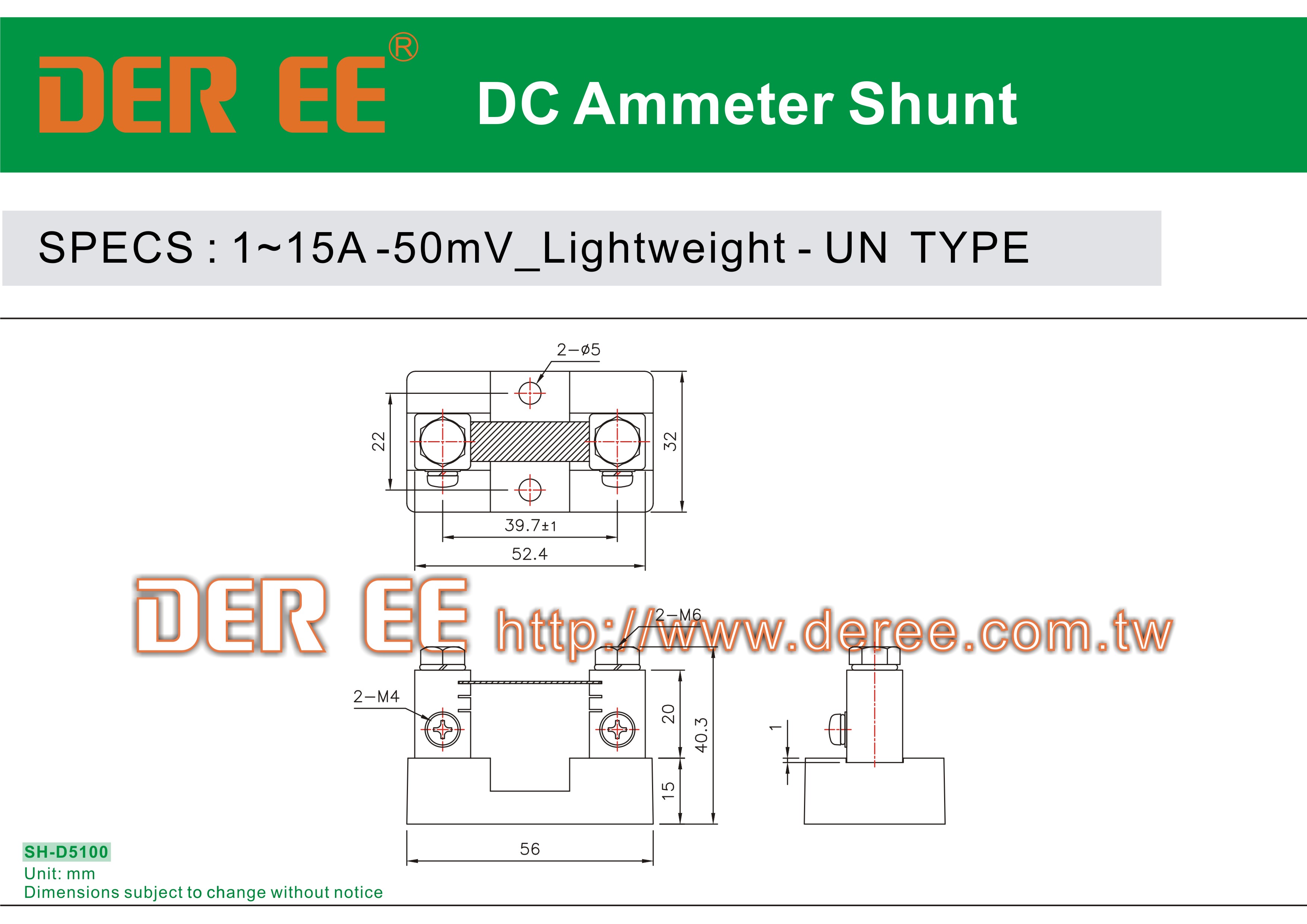

| DC Ammeter Shunt - Light weight | 1 ~ 15Amp / 50mV | SH-D5100 |

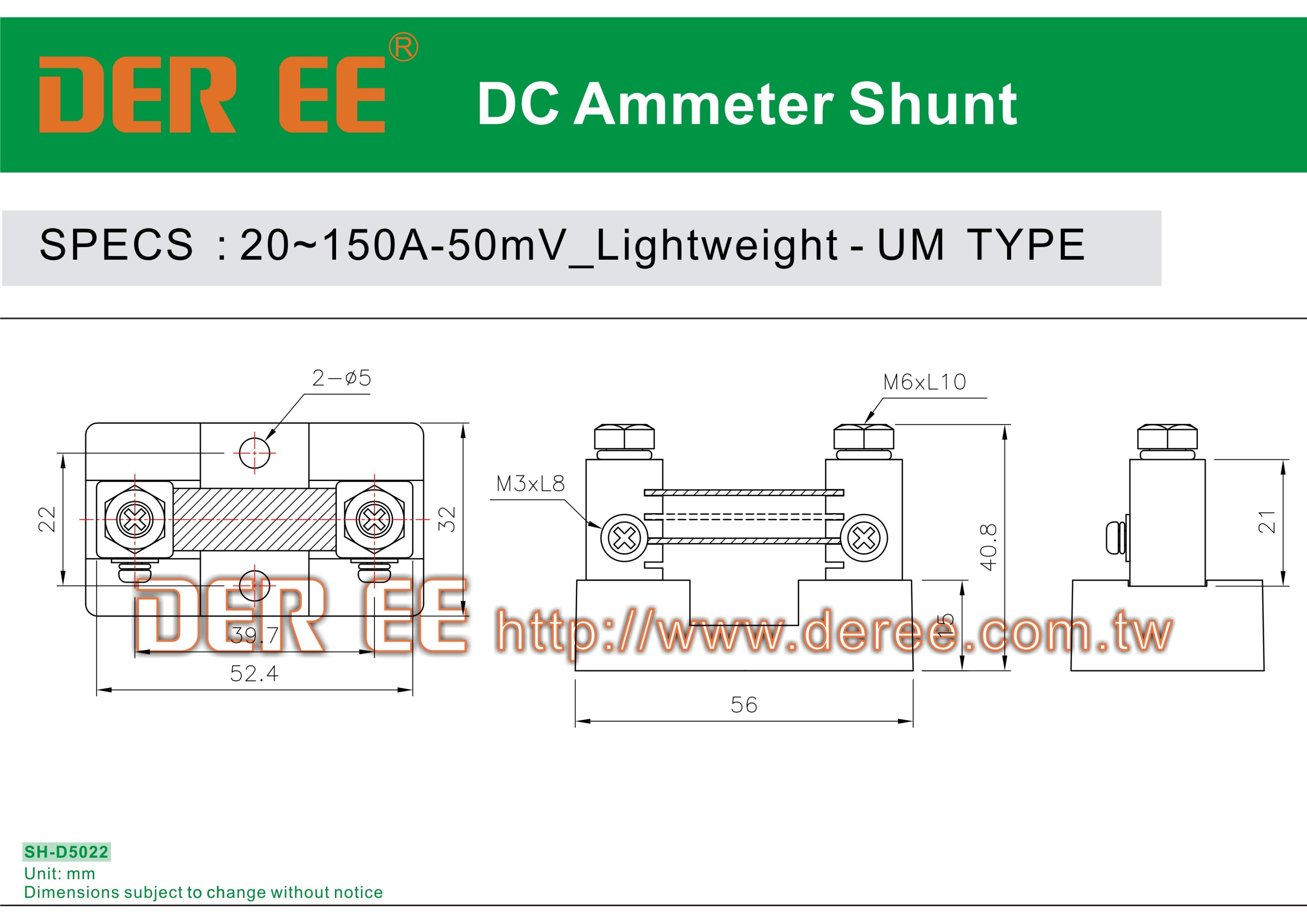

| 20 ~ 150Amp / 50mV * | SH-D5022 | |

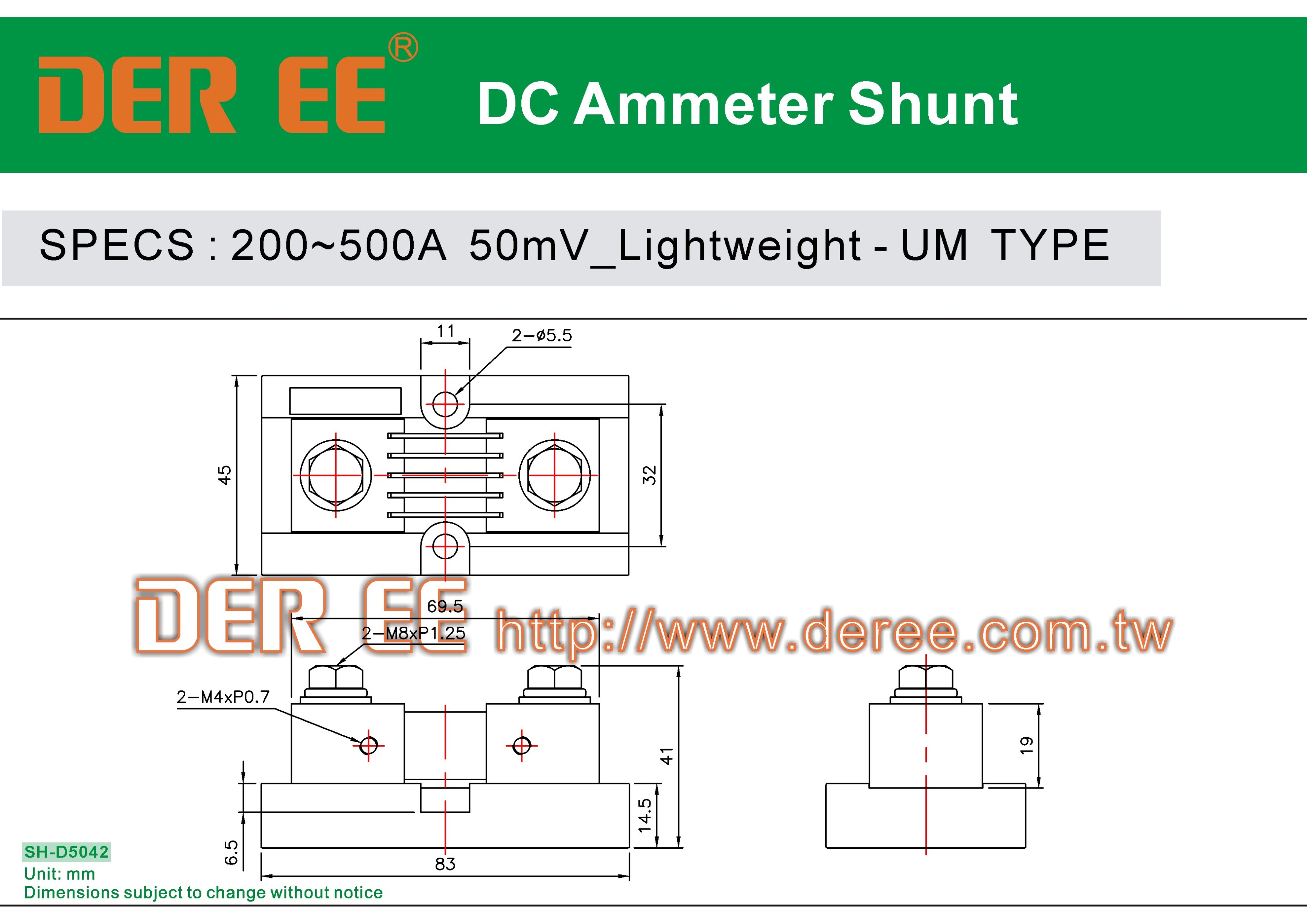

| 200 ~ 500Amp / 50mV | SH-D5042 | |

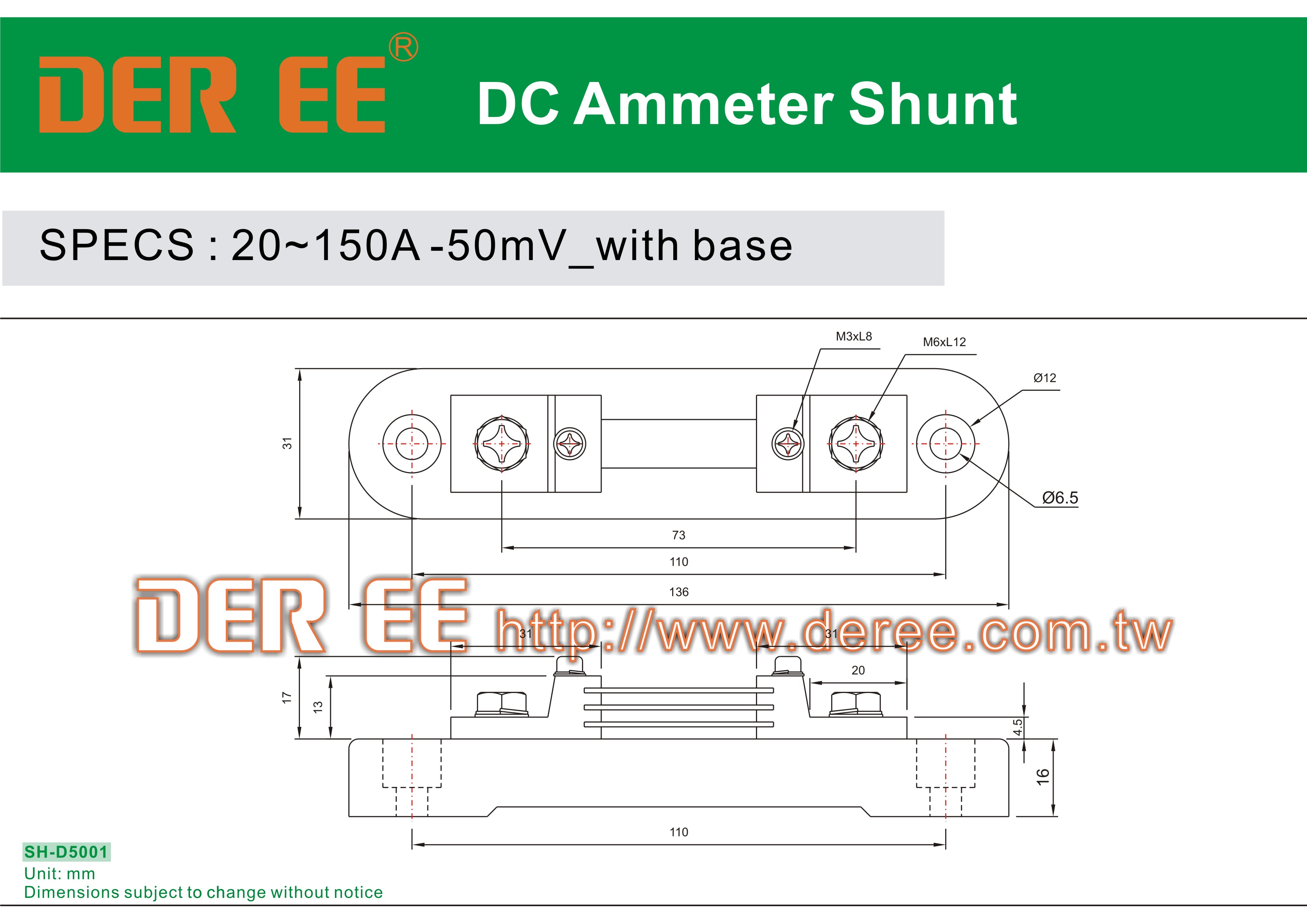

| DC Ammeter Shunt with base | 20 ~ 150 Amp / 50mV * | SH-D5001 |

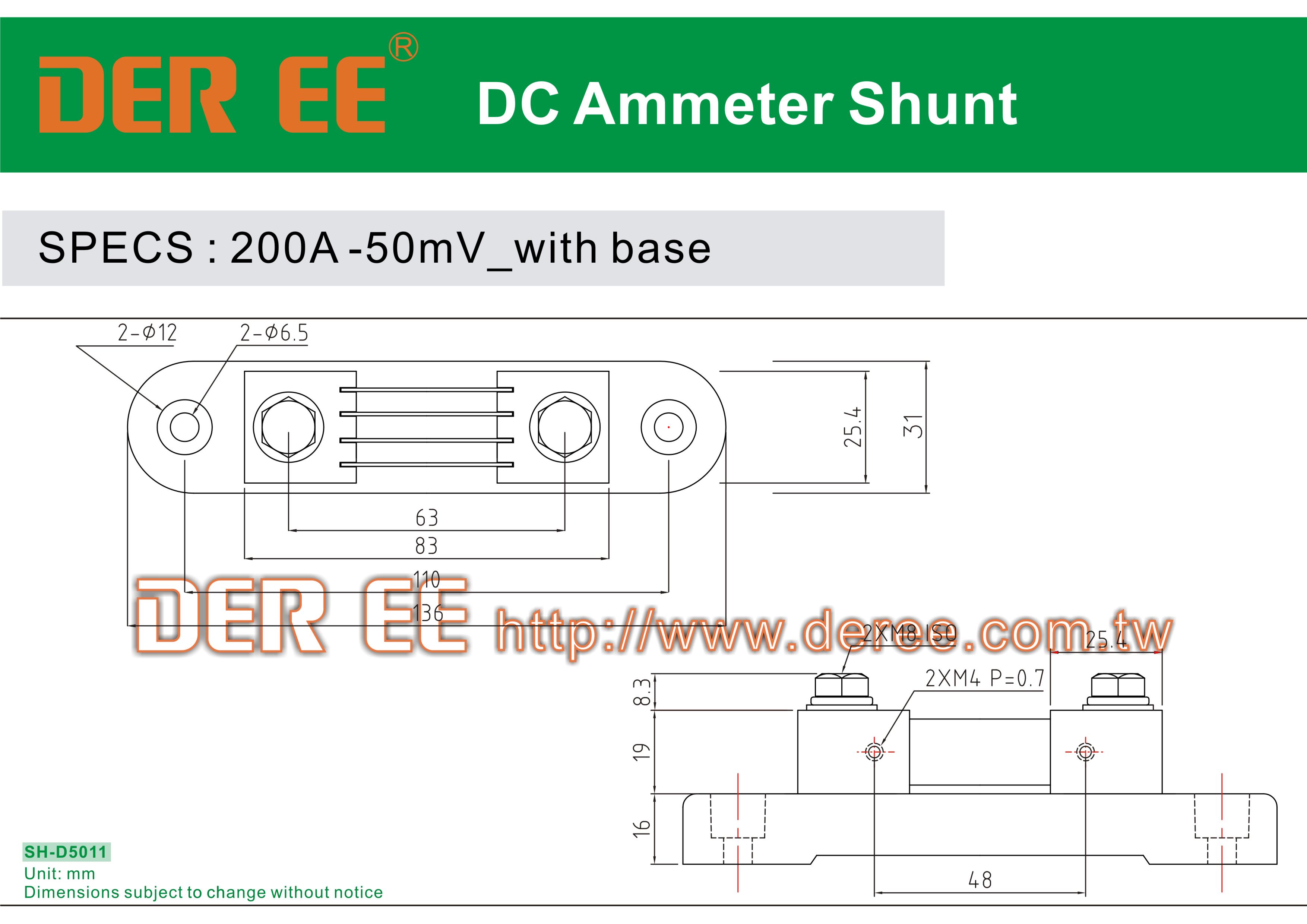

| 200Amp / 50mV | SH-D5011 | |
| * <20Amp/50mV: please refer SH-D5100 | ||

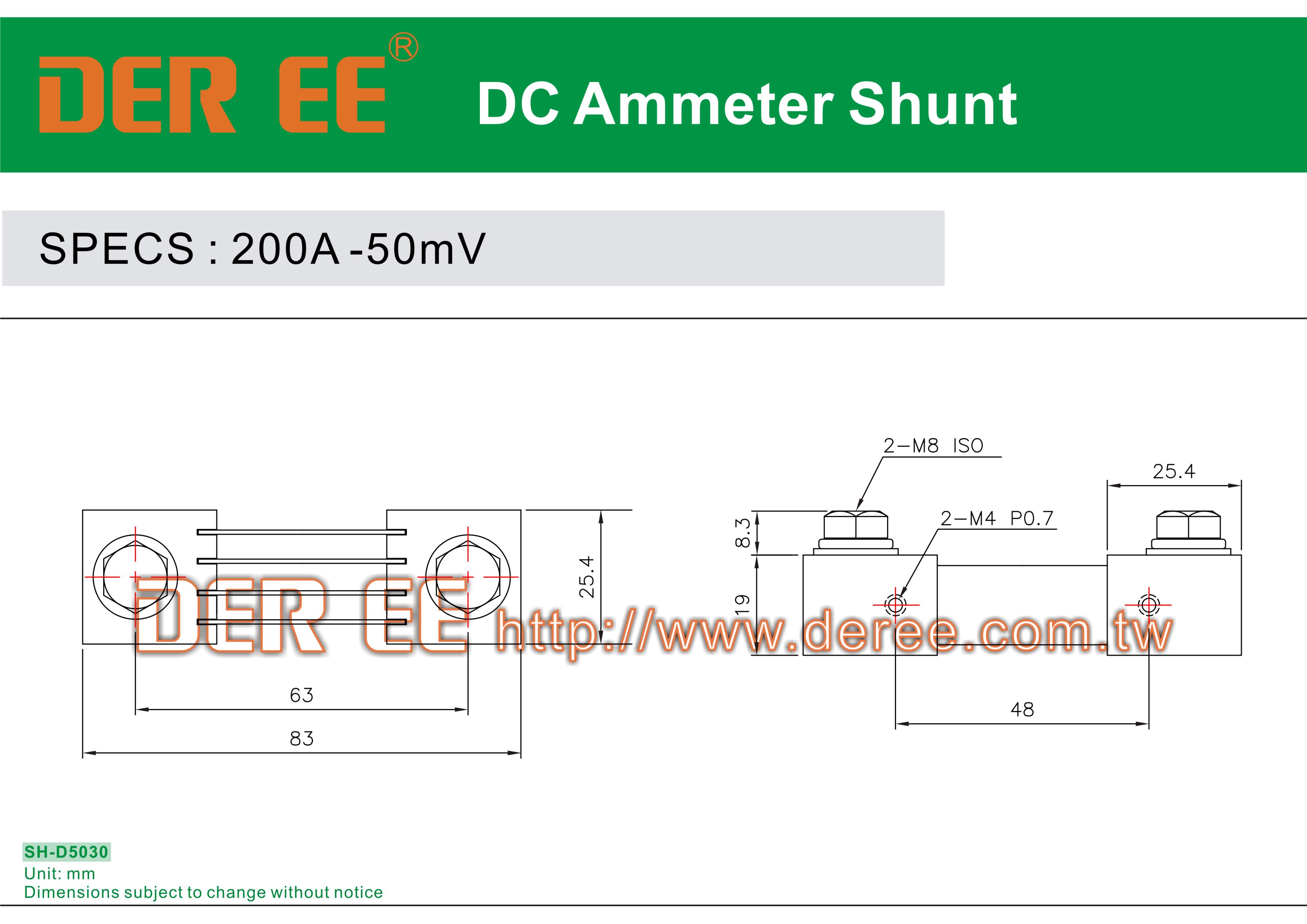

| DC Ammeter Shunt without base | 200Amp / 50mV | SH-D5030 |

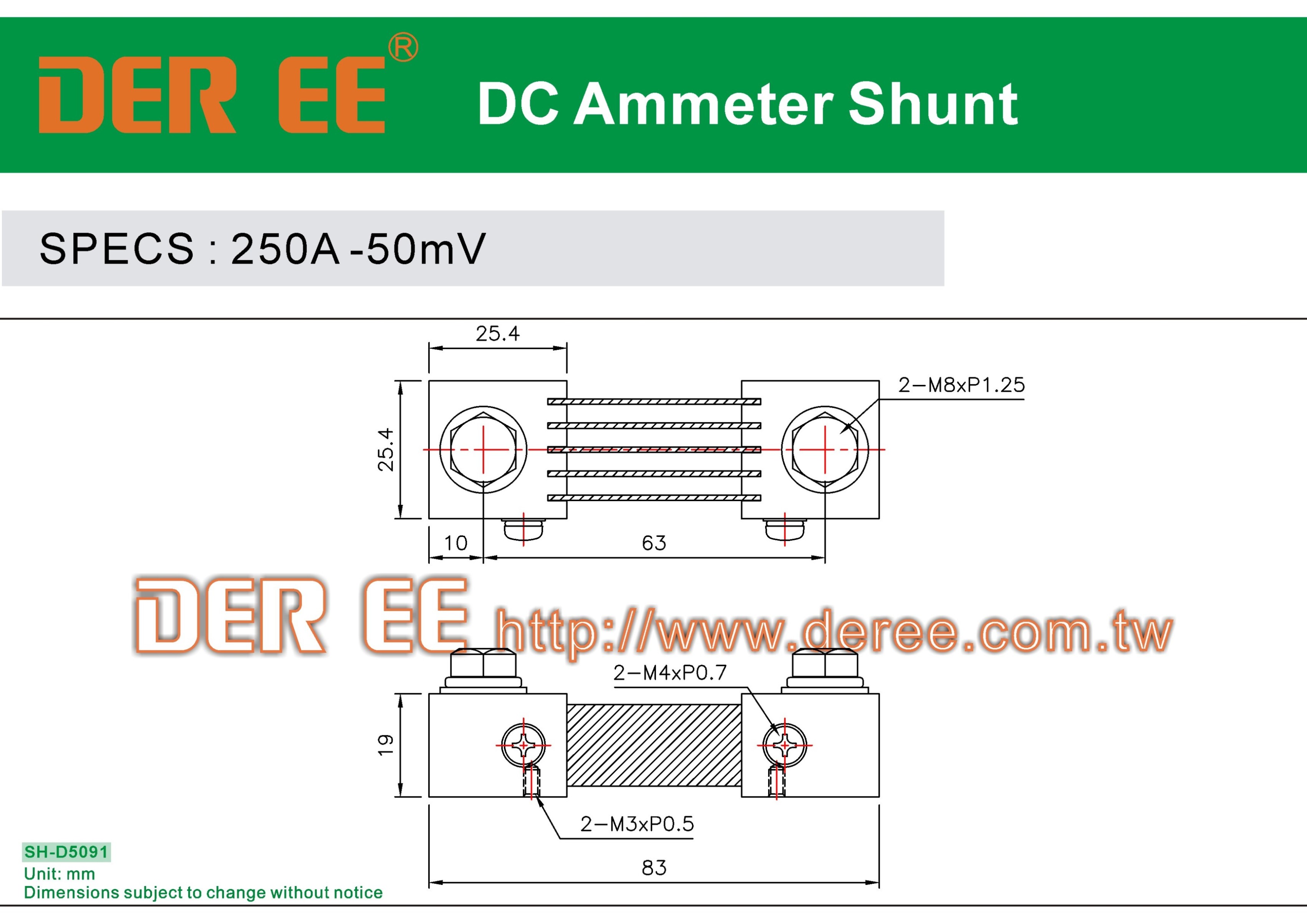

| 250Amp / 50mV | SH-D5091 | |

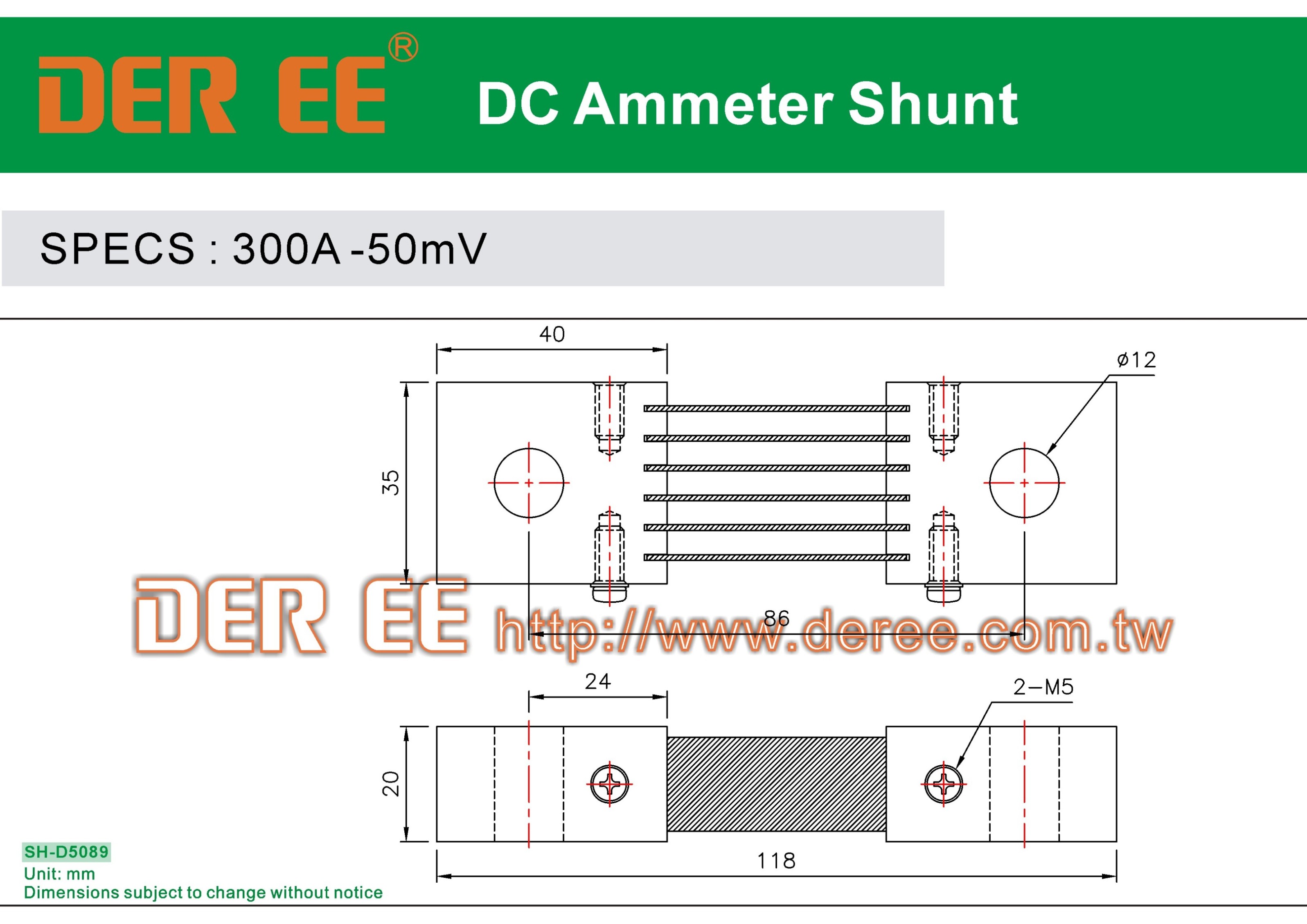

| 300Amp / 50mV | SH-D5089 | |

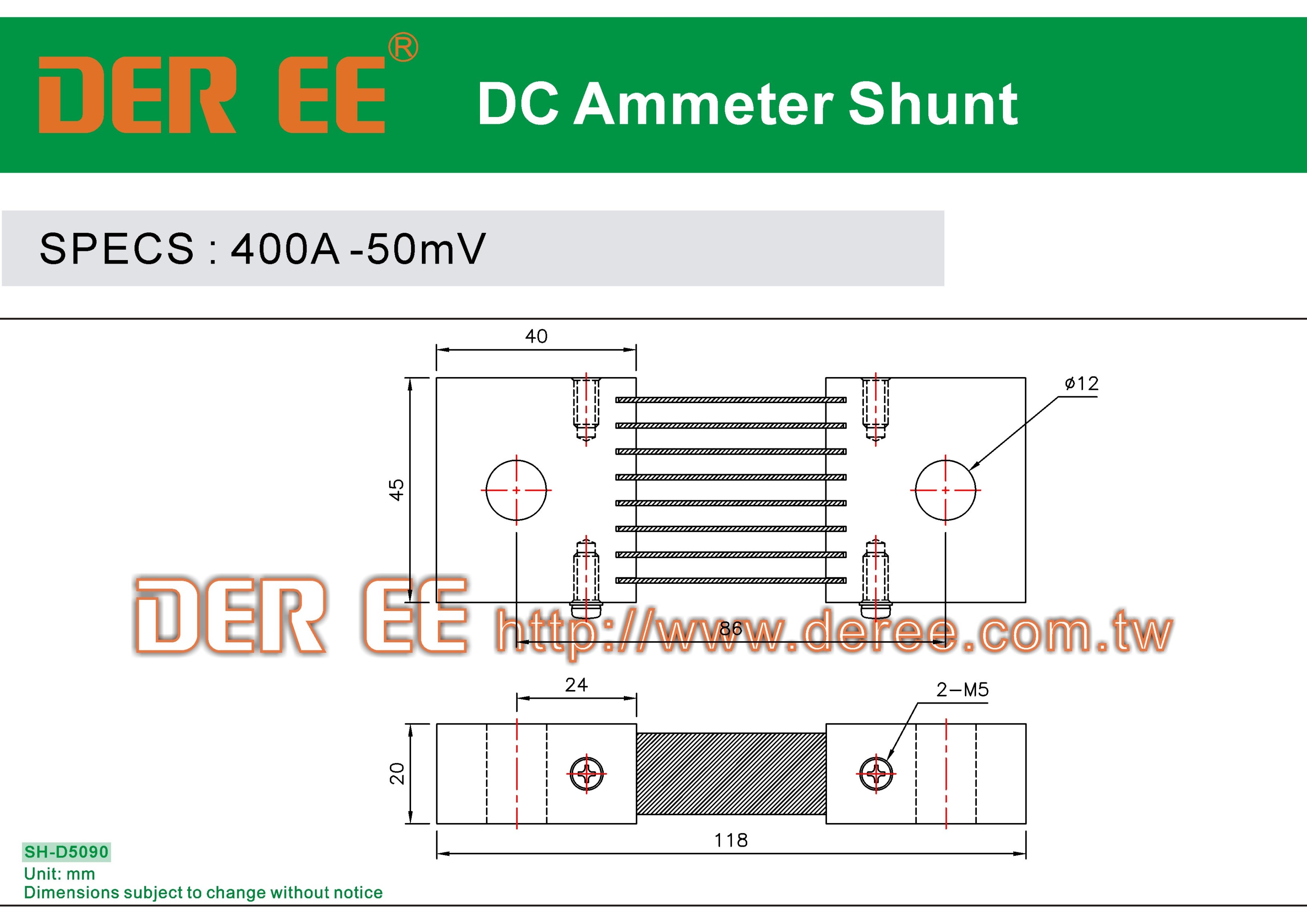

| 400Amp / 50mV | SH-D5090 | |

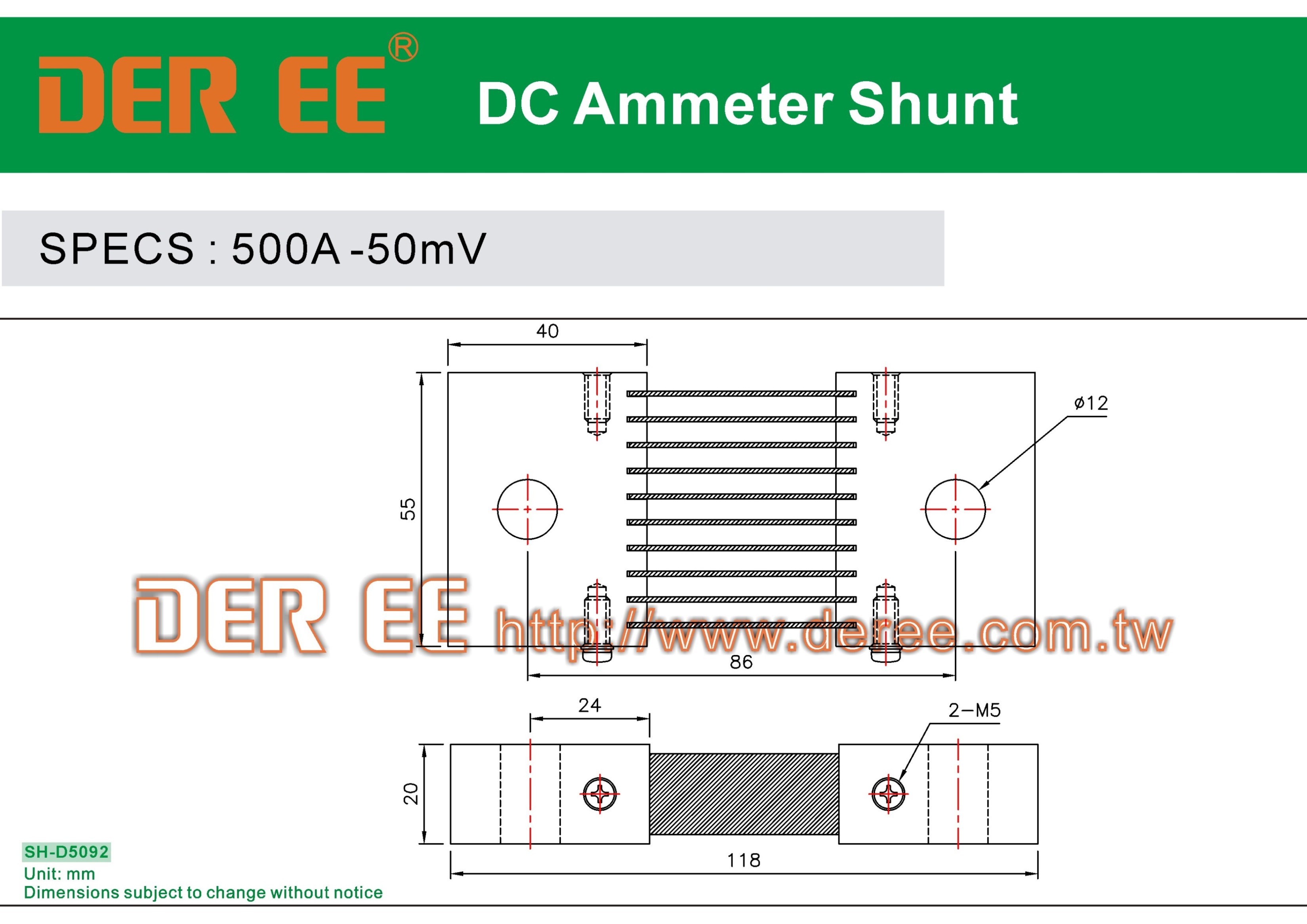

| 500Amp / 50mV | SH-D5092 | |

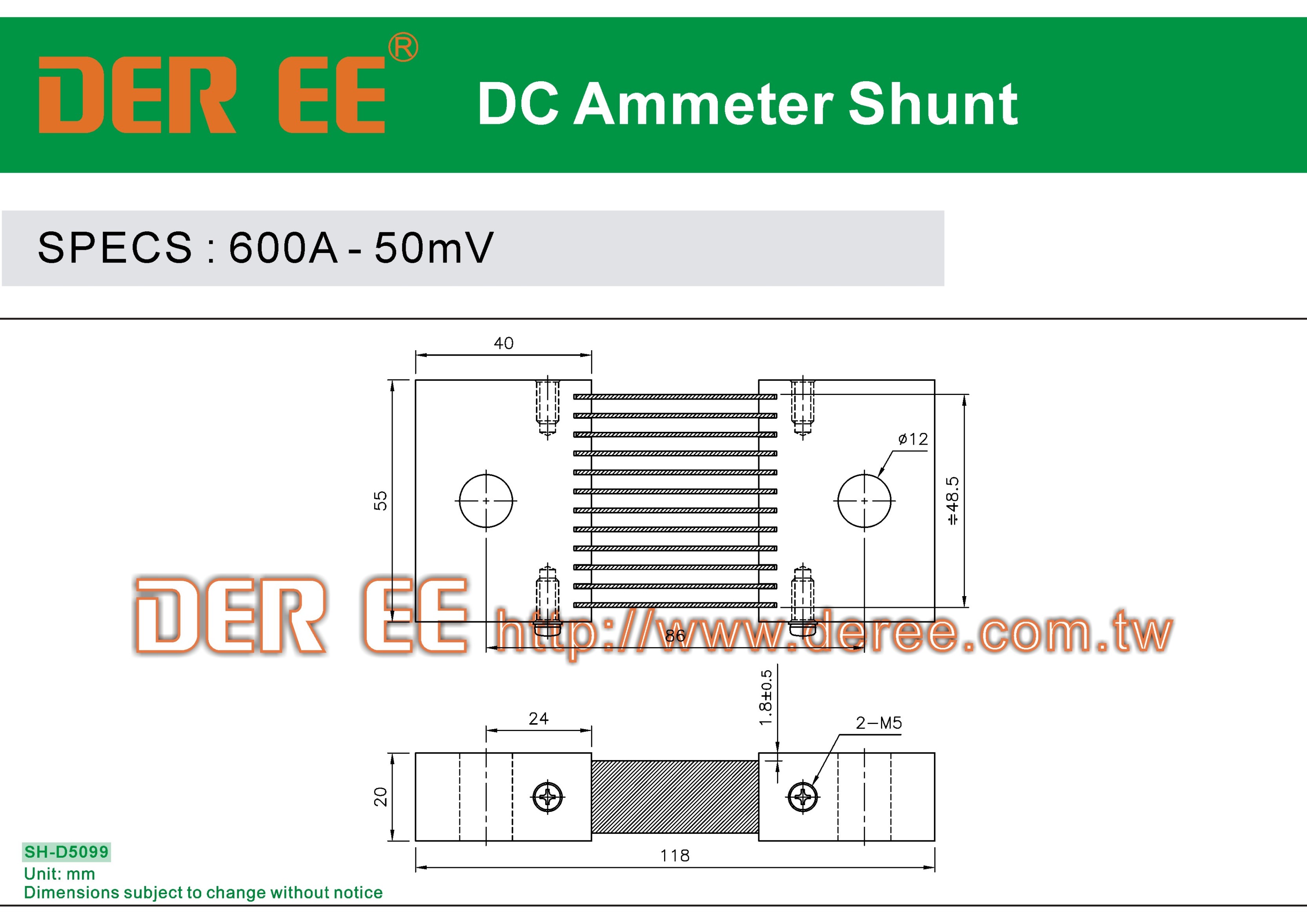

| 600Amp / 50mV | SH-D5099 | |

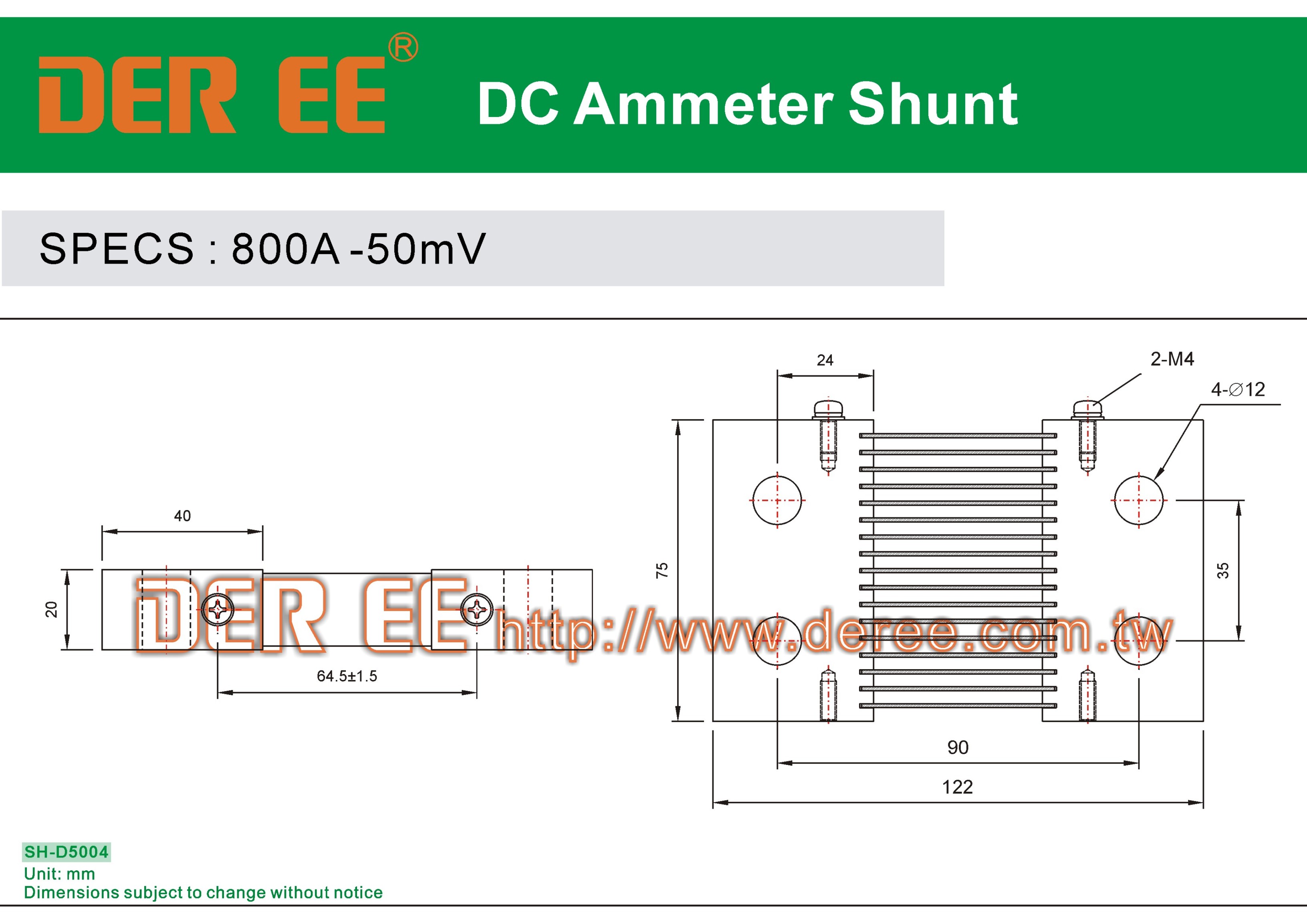

| 800Amp / 50mV | SH-D5004 | |

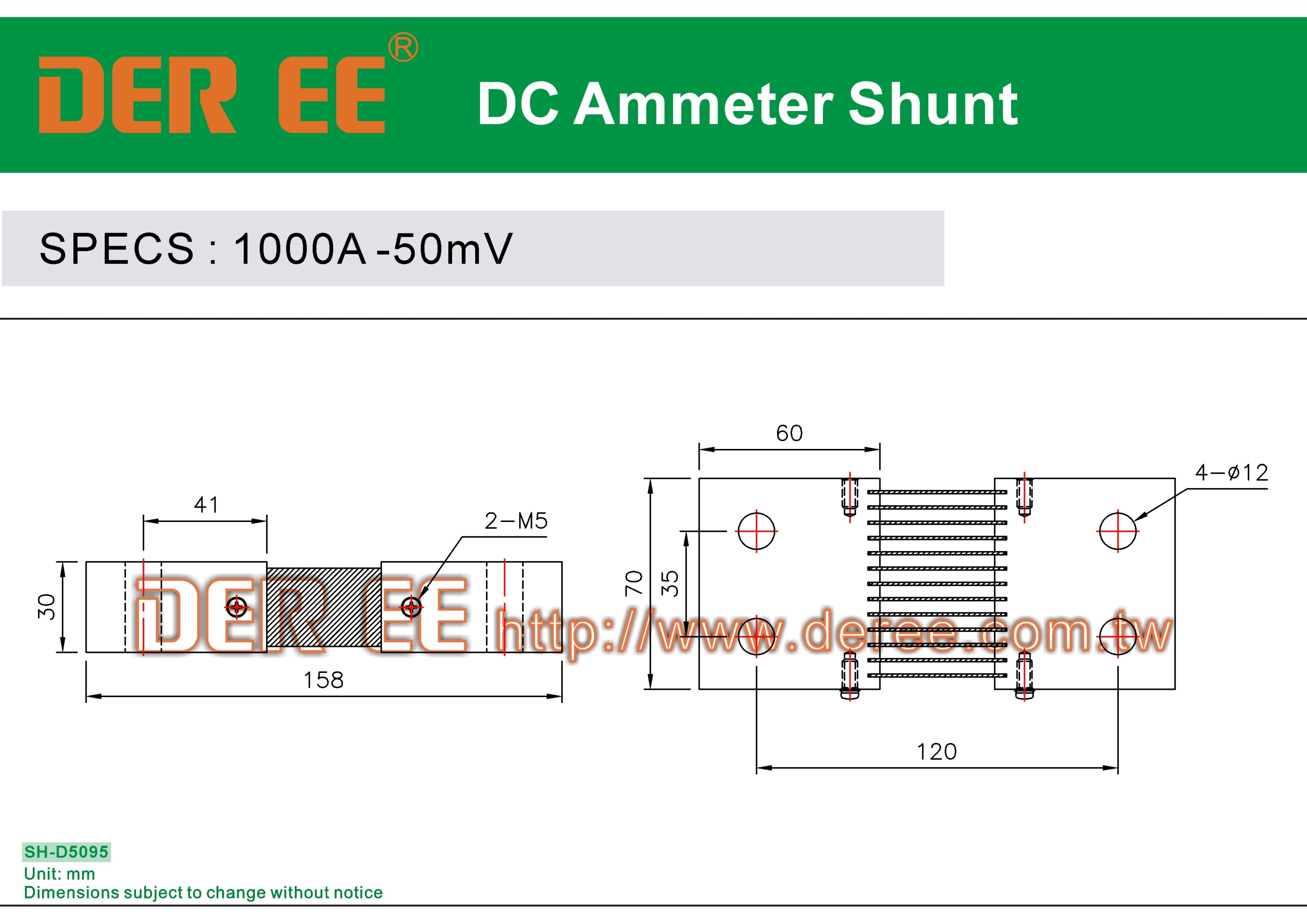

| 1000Amp / 50mV | SH-D5095 | |

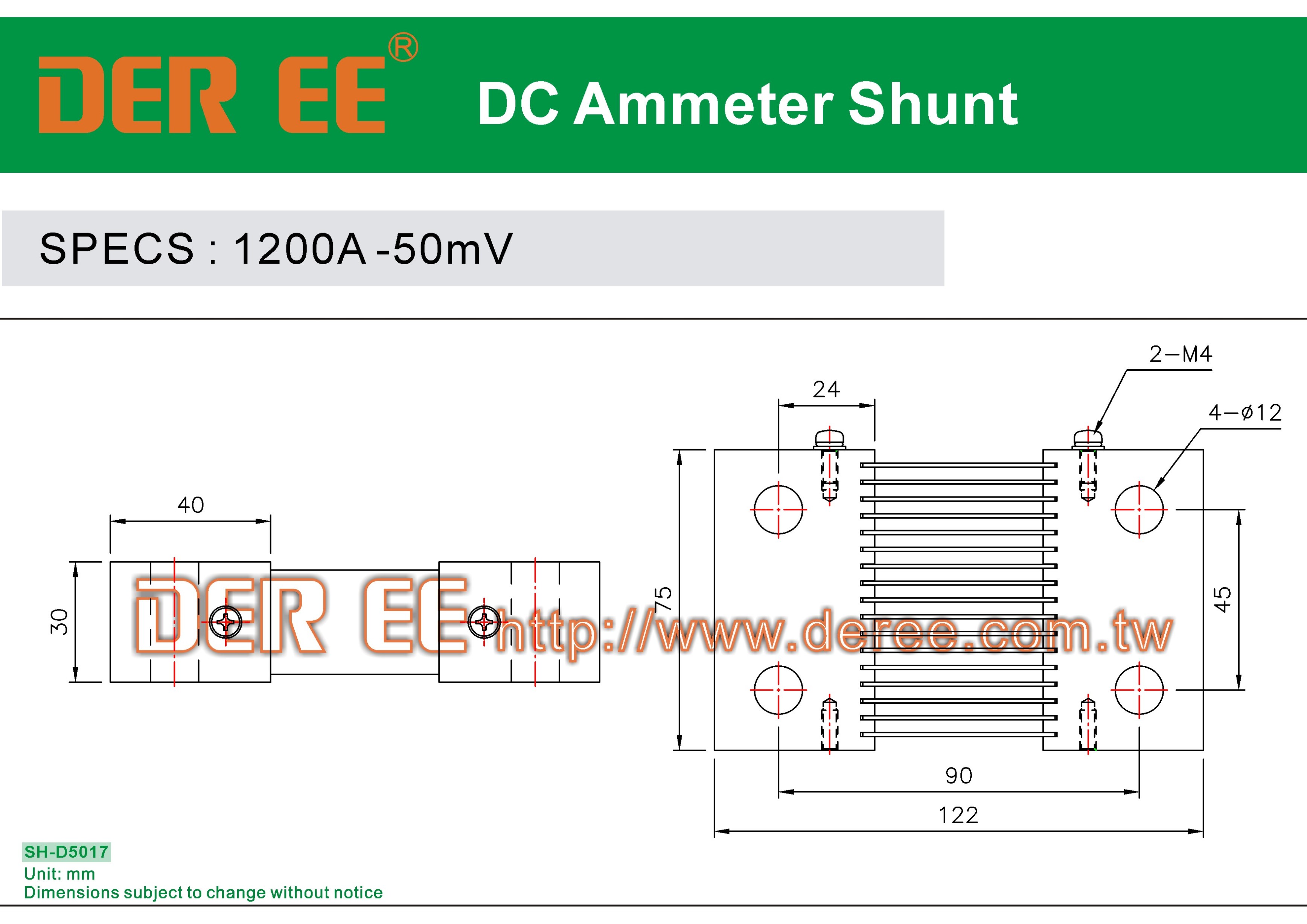

| 1200Amp / 50mV | SH-D5017 | |

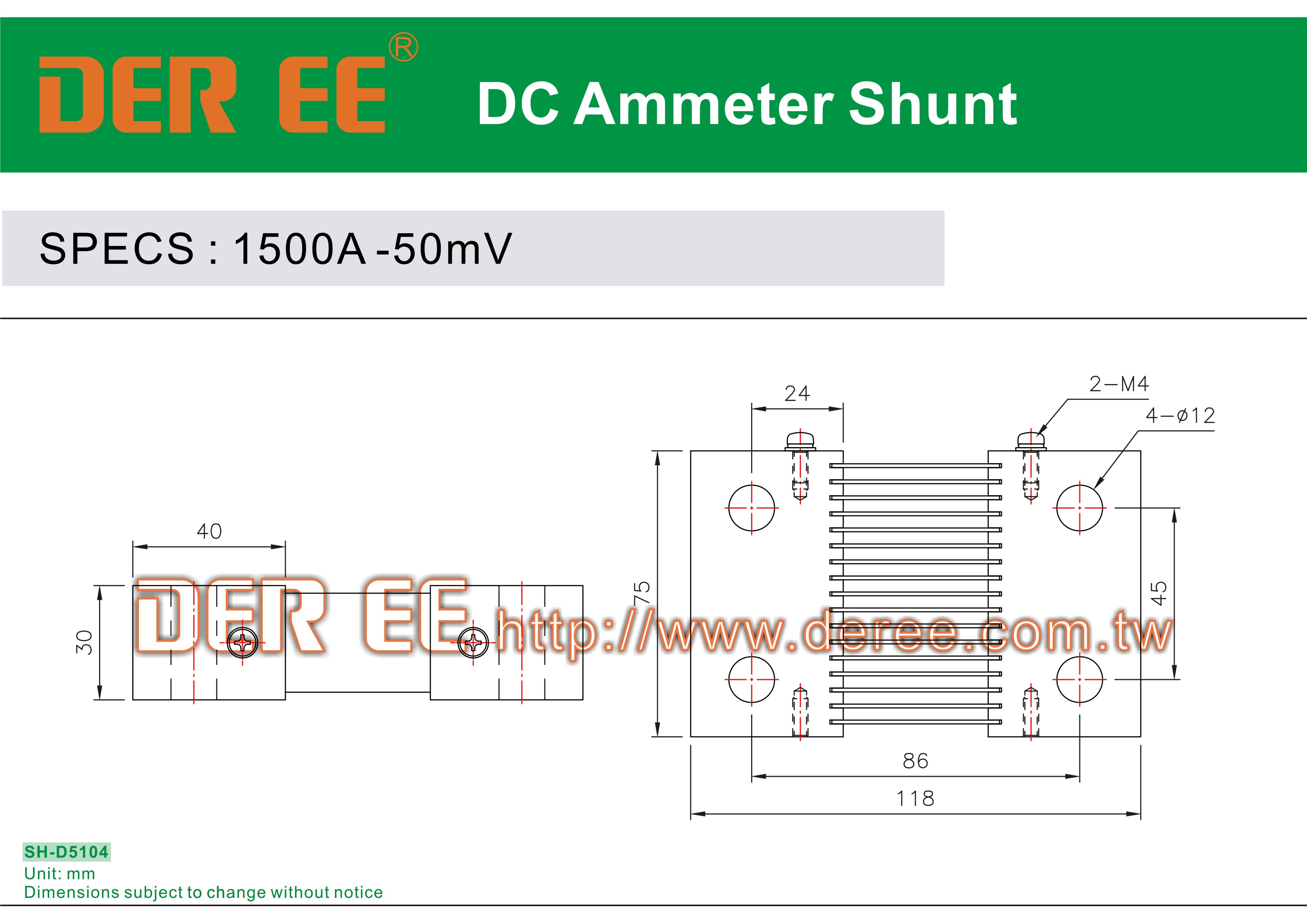

| 1500Amp / 50mV | SH-D5104 | |

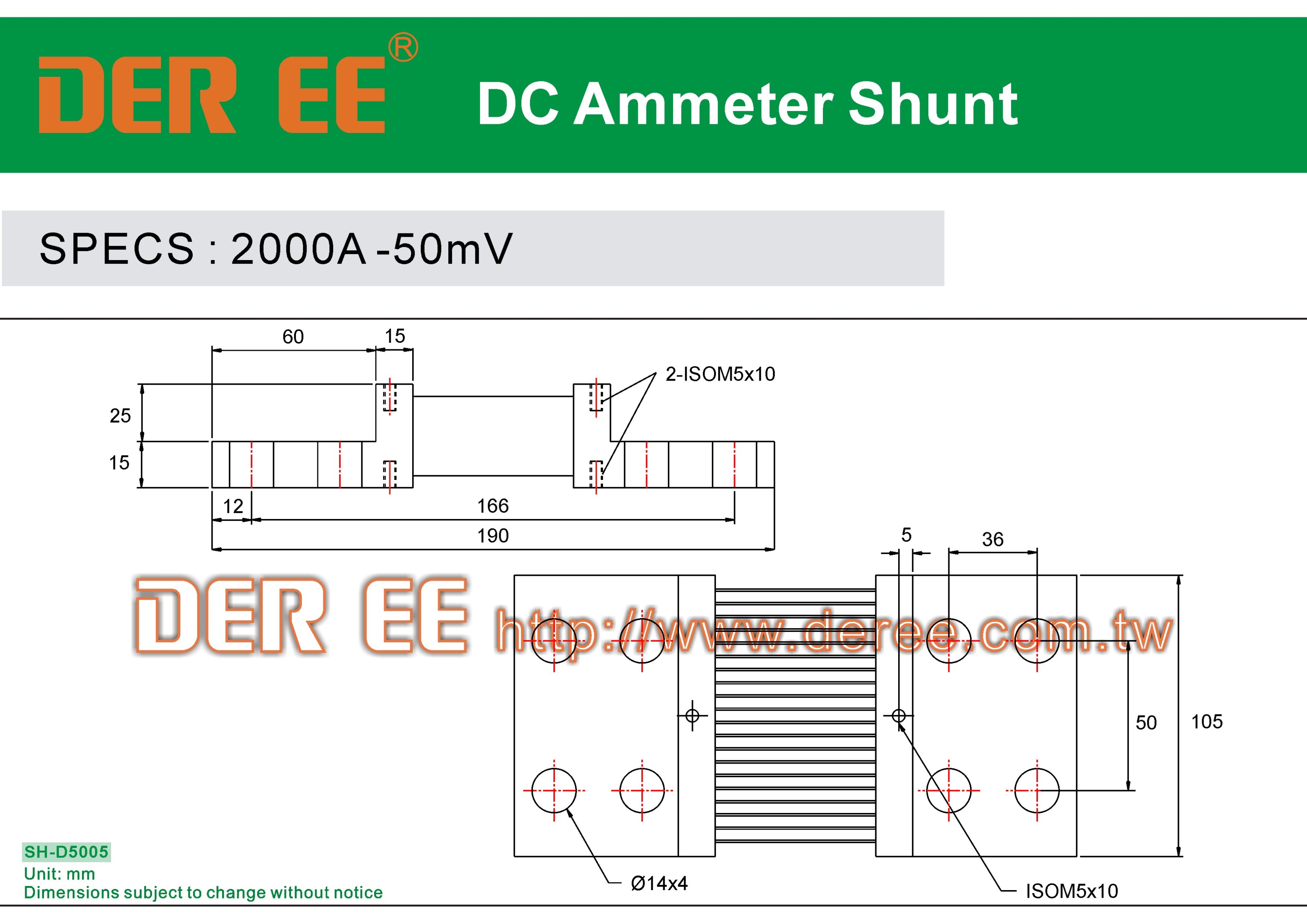

| 2000Amp / 50mV | SH-D5005 | |

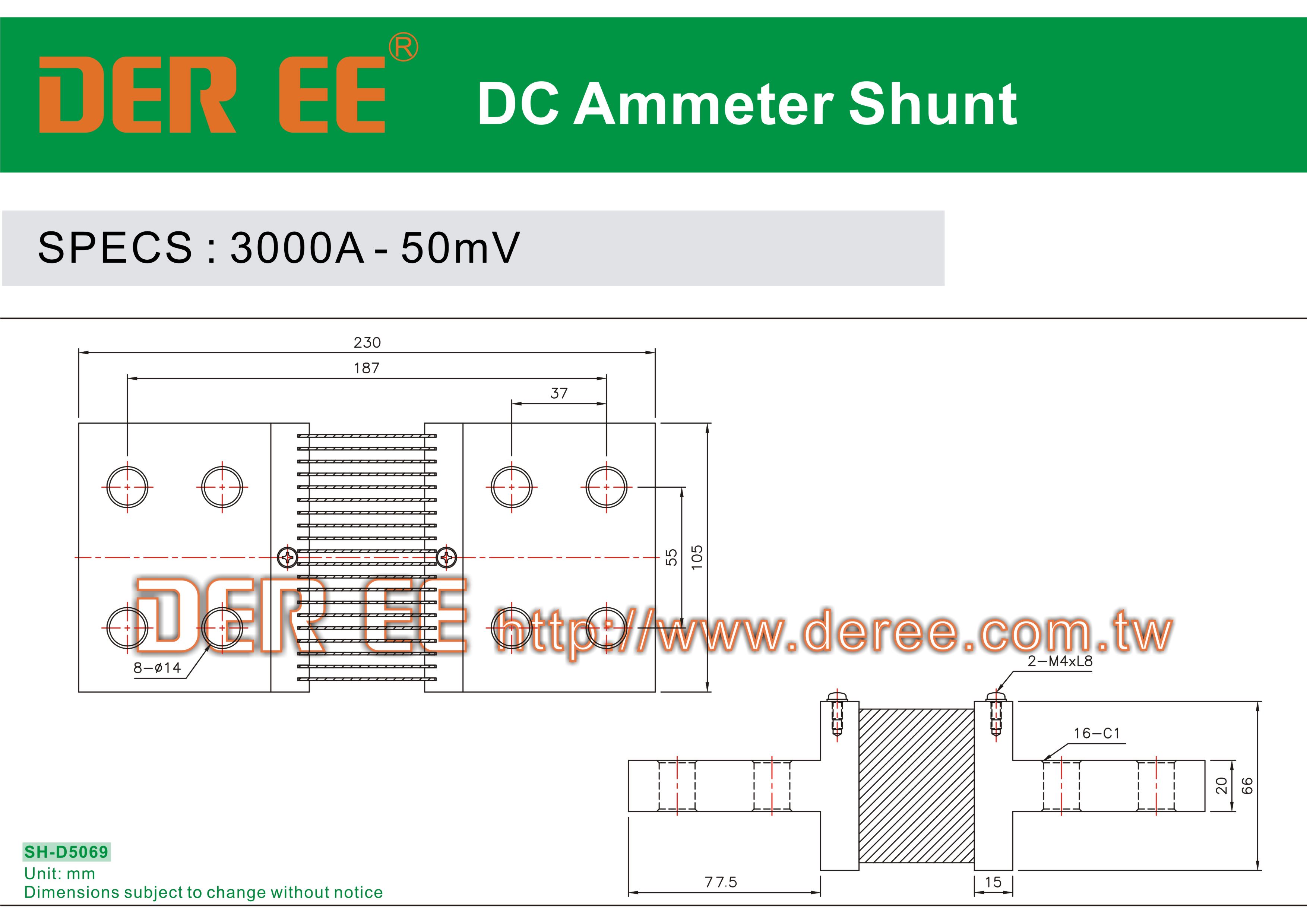

| 3000Amp / 50mV | SH-D5069 | |

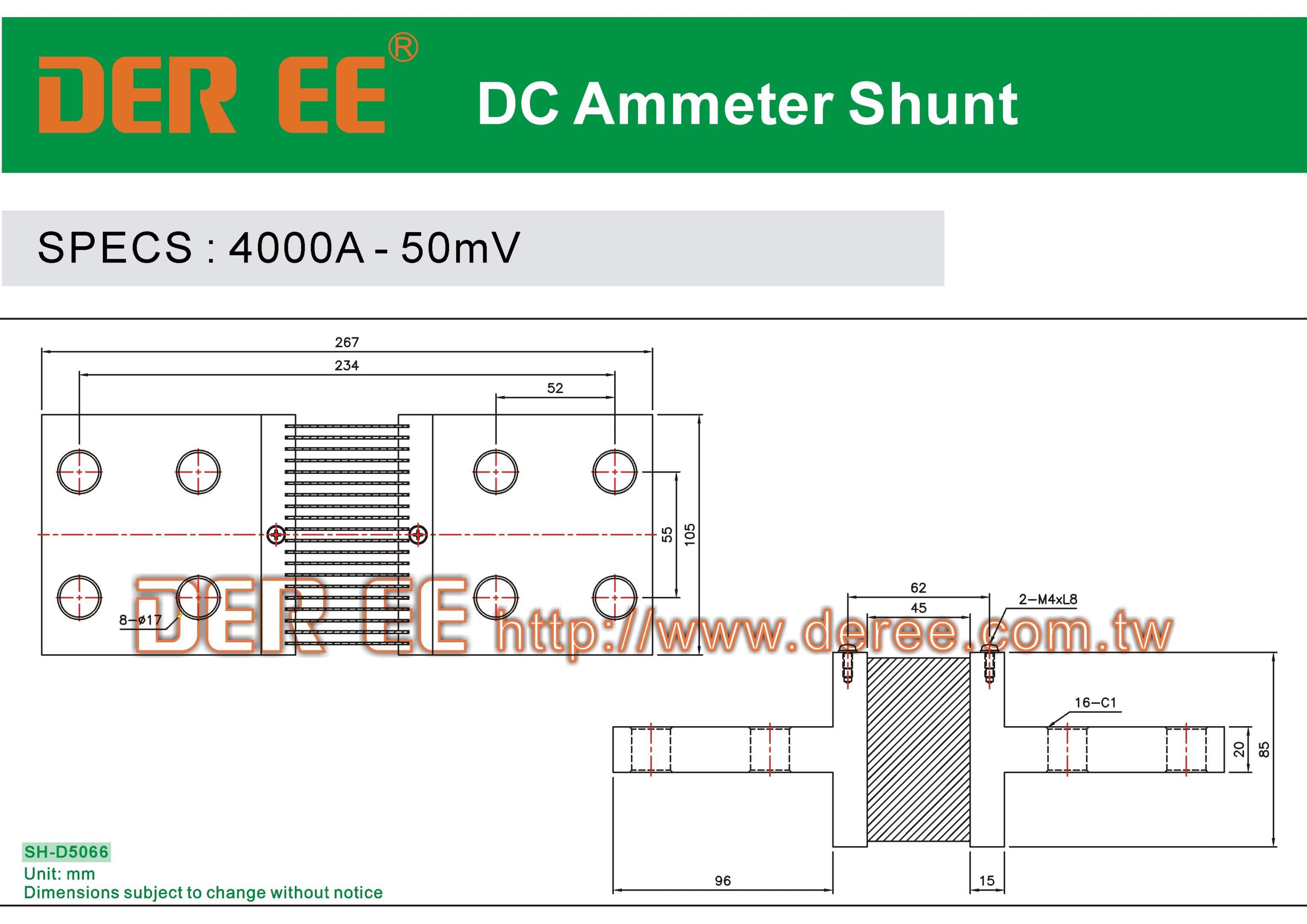

| 4000Amp / 50mV | SH-D5066 | |

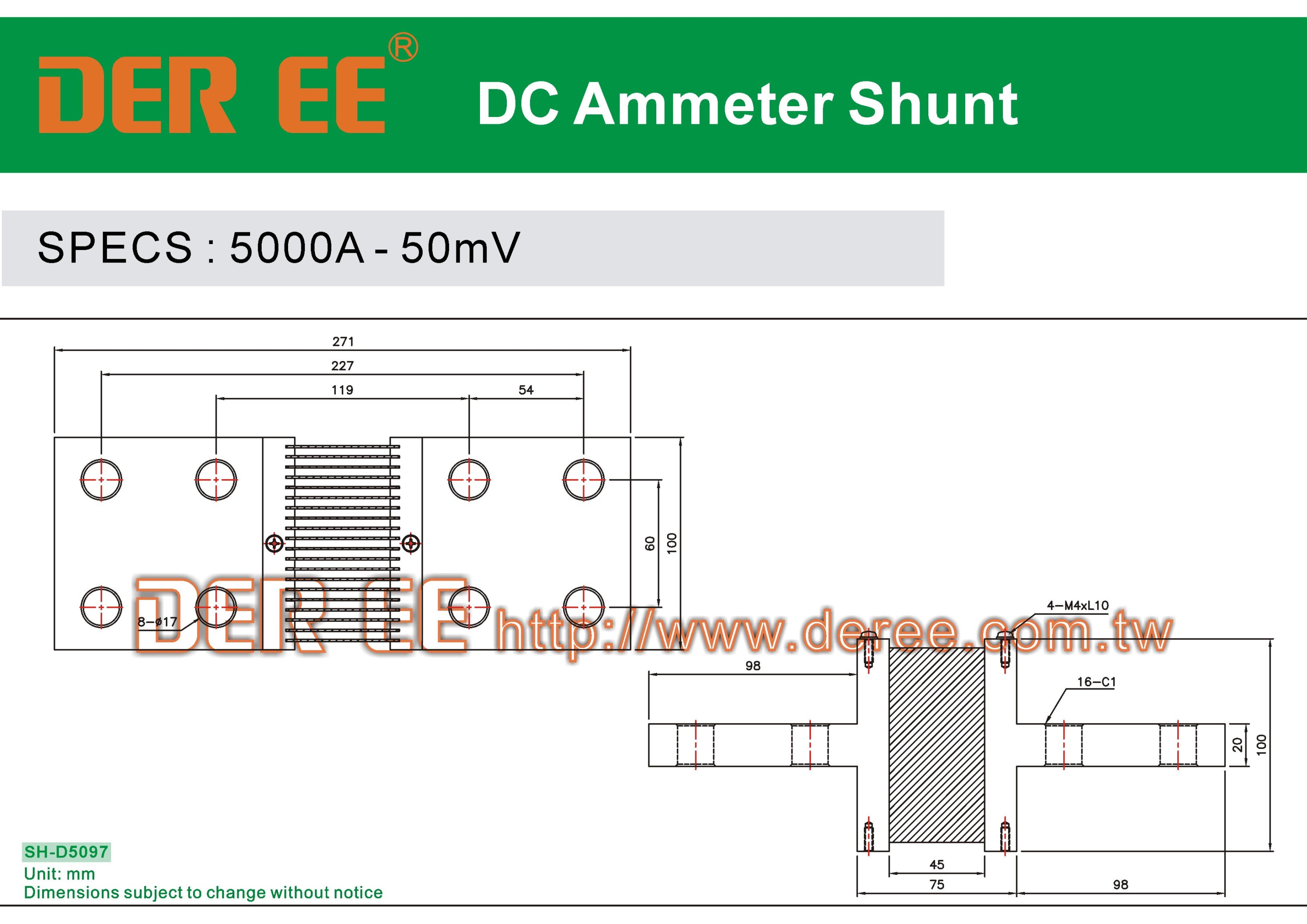

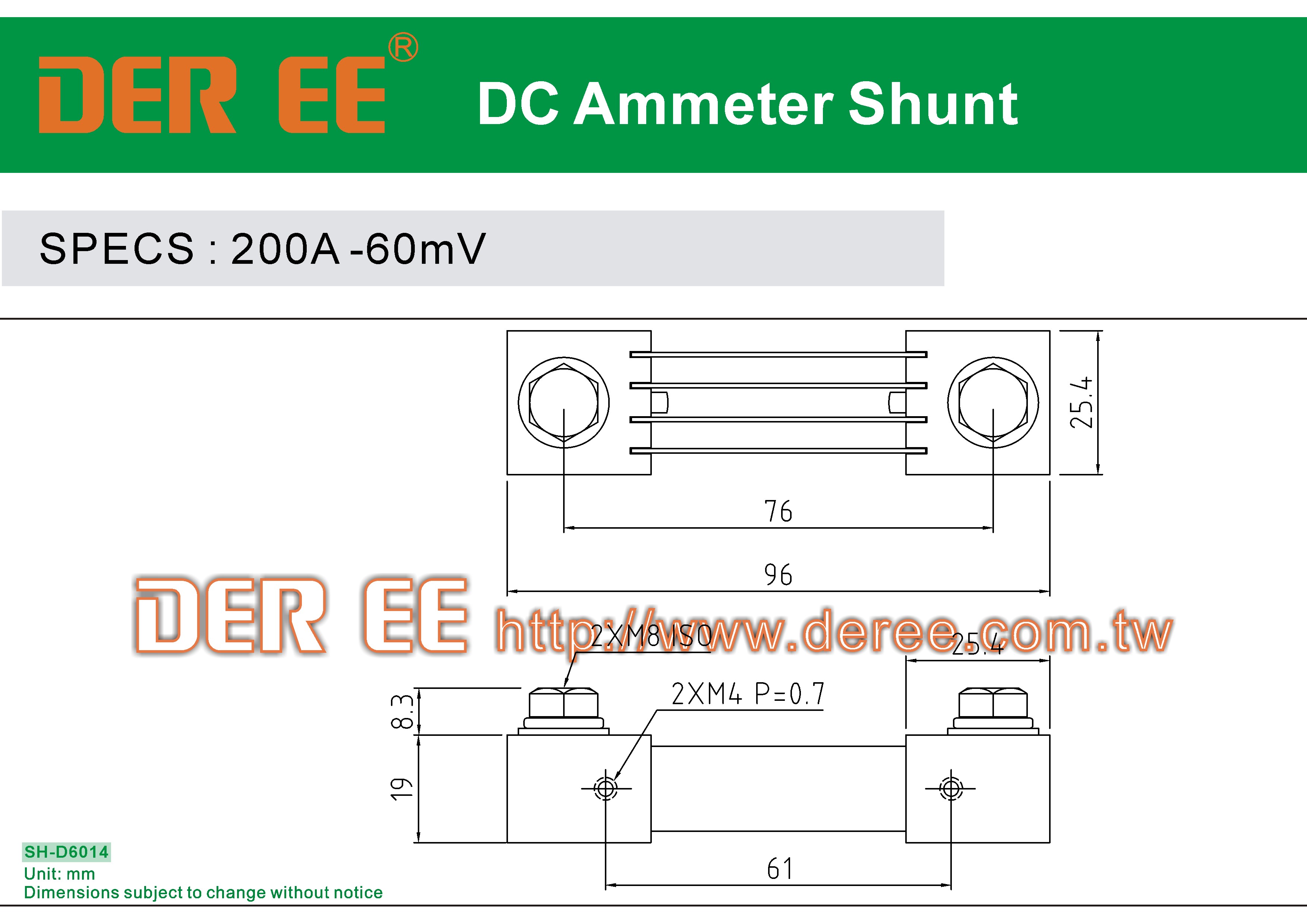

| 5000Amp / 50mV | SH-D5097 | |
| DC Ammeter Shunt Without Base | 200Amp / 60mV | SH-D6014 |

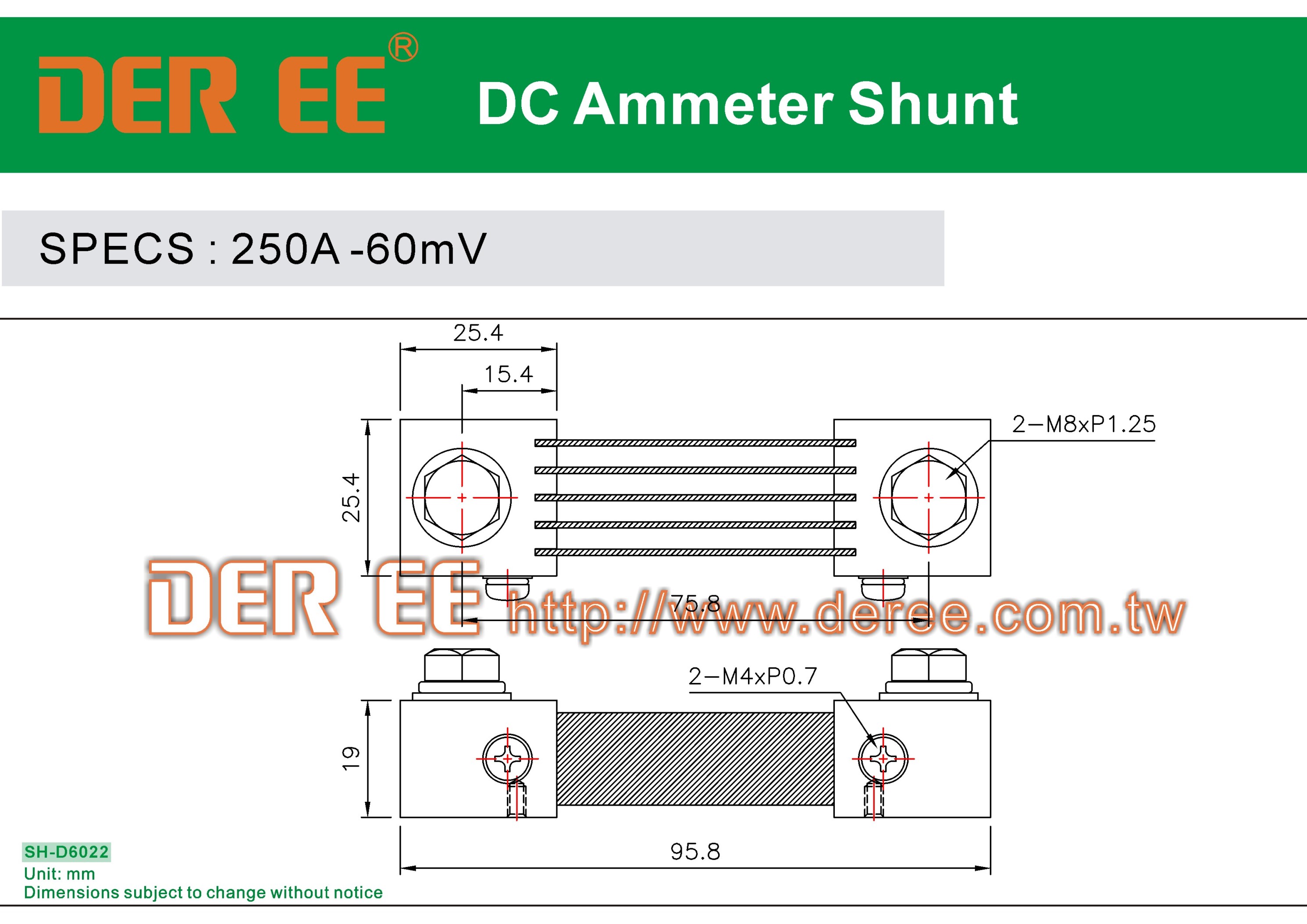

| 250Amp / 60mV | SH-D6022 | |

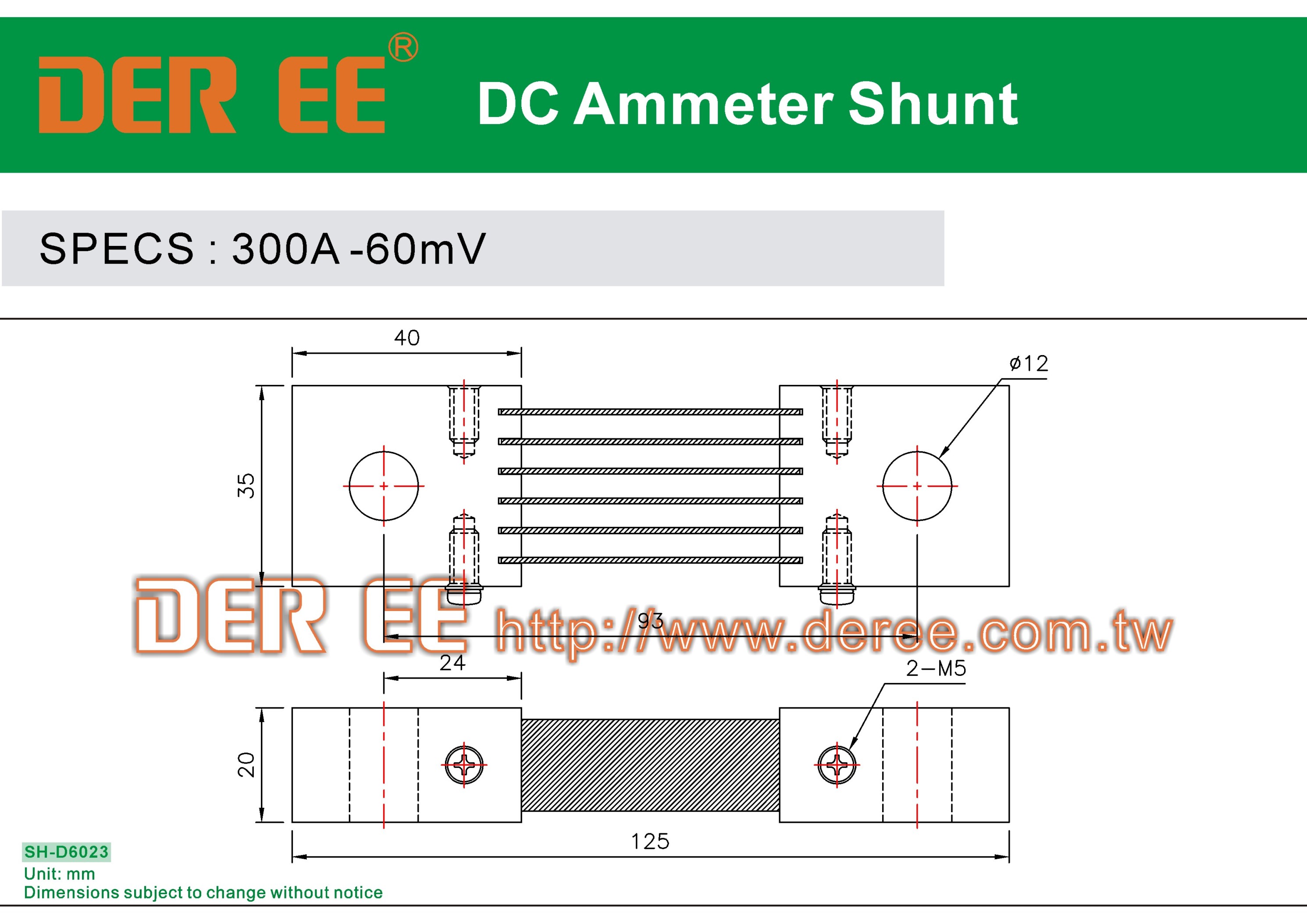

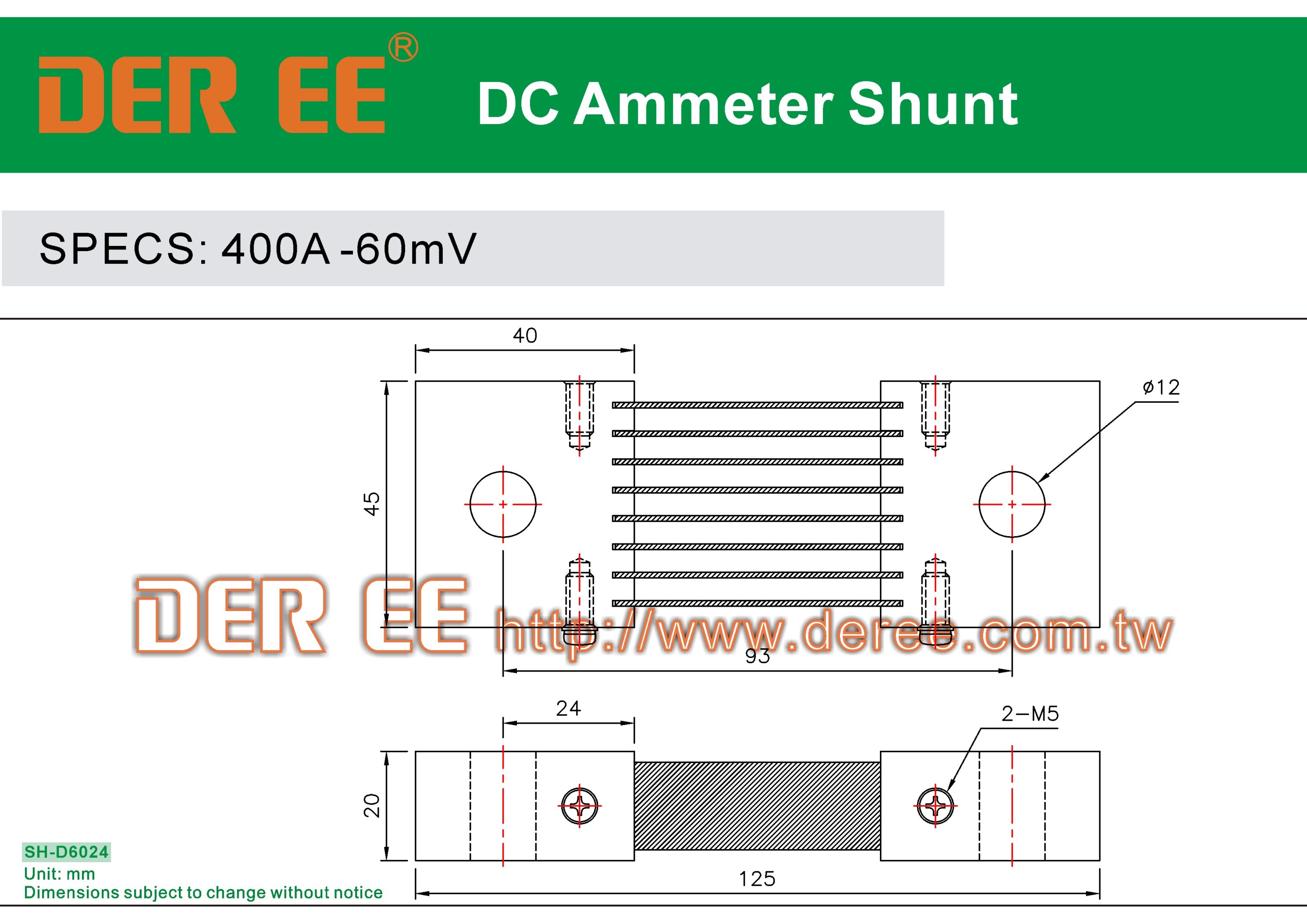

| 300Amp / 60mV | SH-D6023 | |
| 400Amp / 60mV | SH-D6024 | |

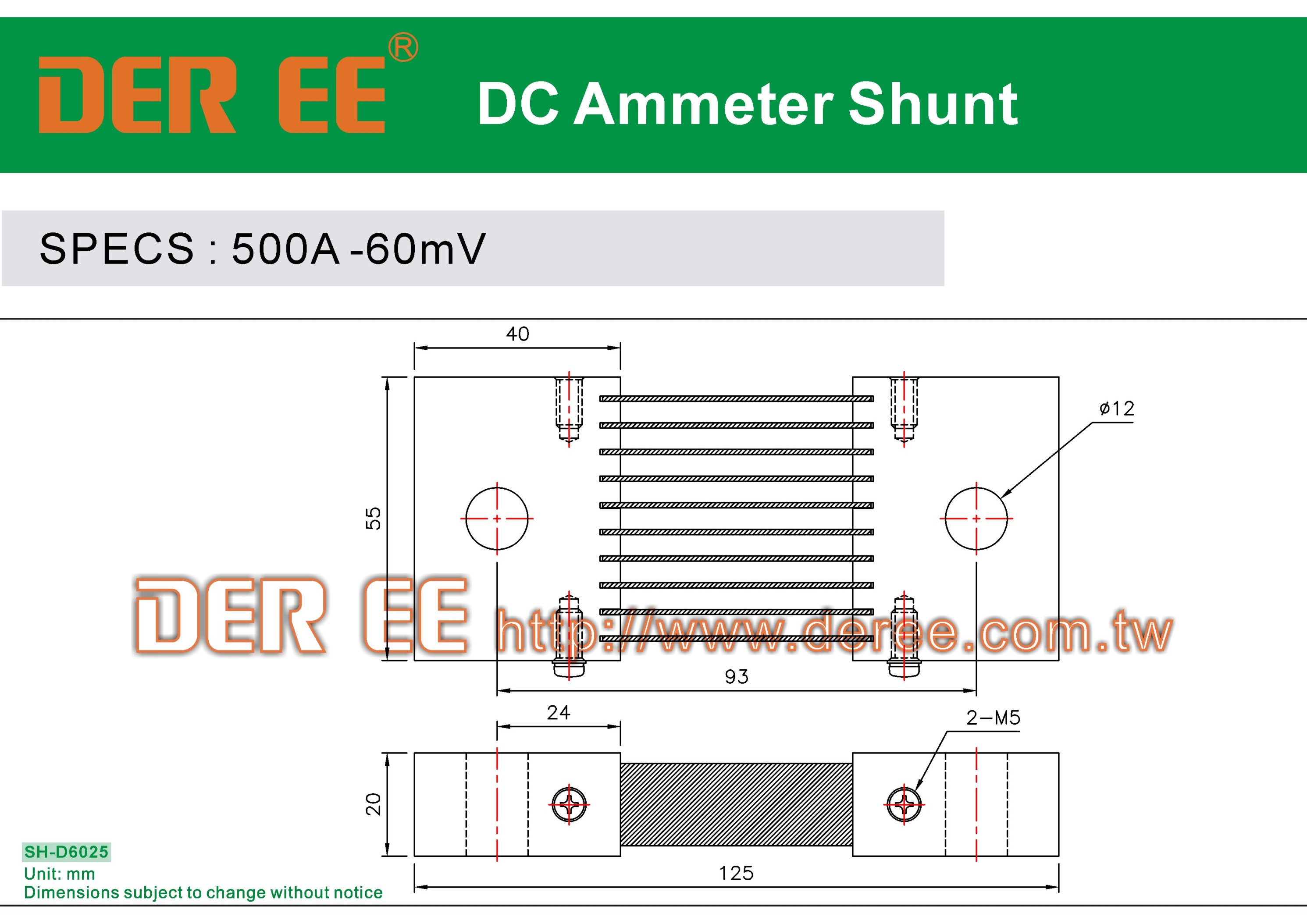

| 500Amp / 60mV | SH-D6025 | |

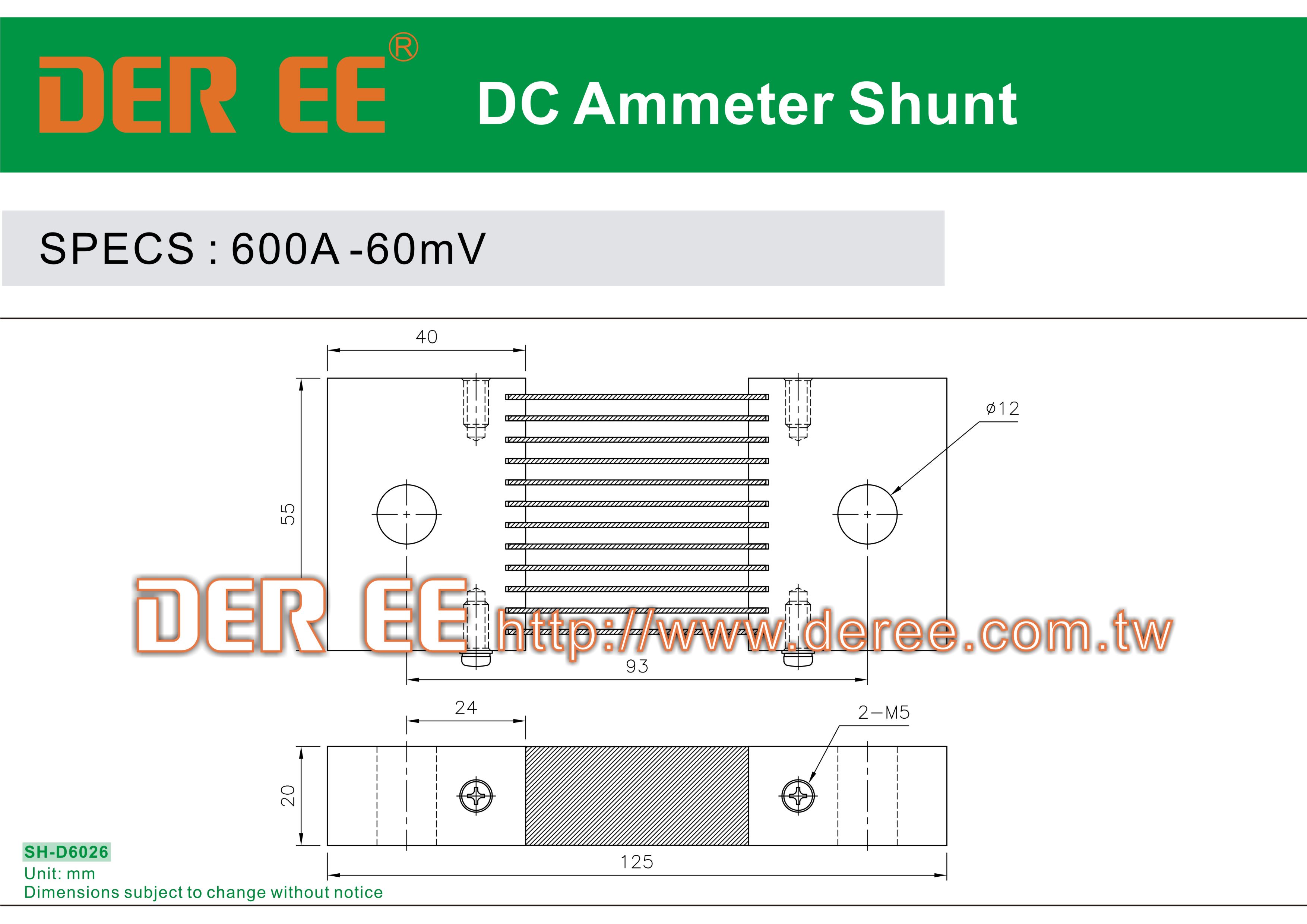

| 600Amp / 60mV | SH-D6026 | |

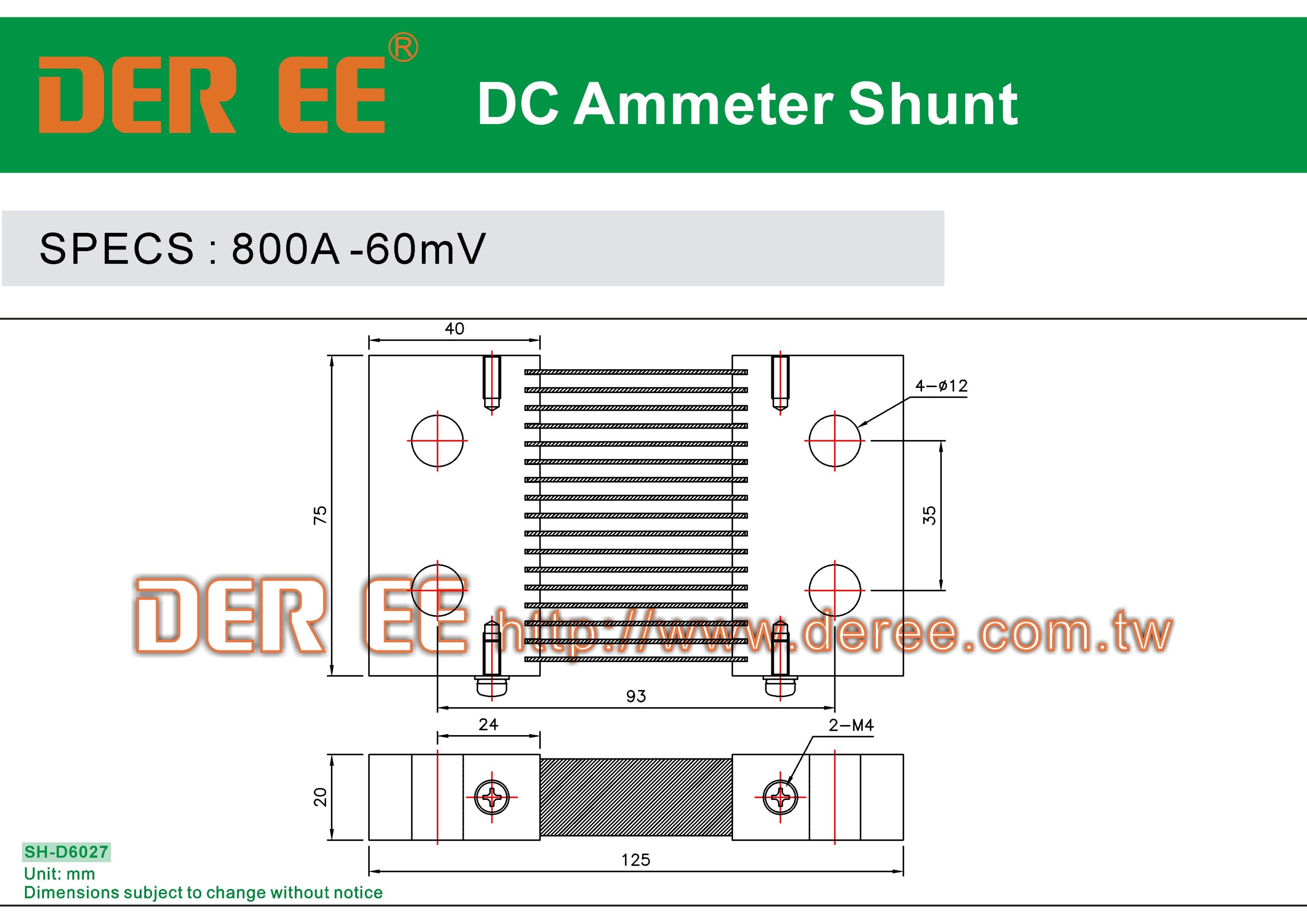

| 800Amp / 60mV | SH-D6027 | |

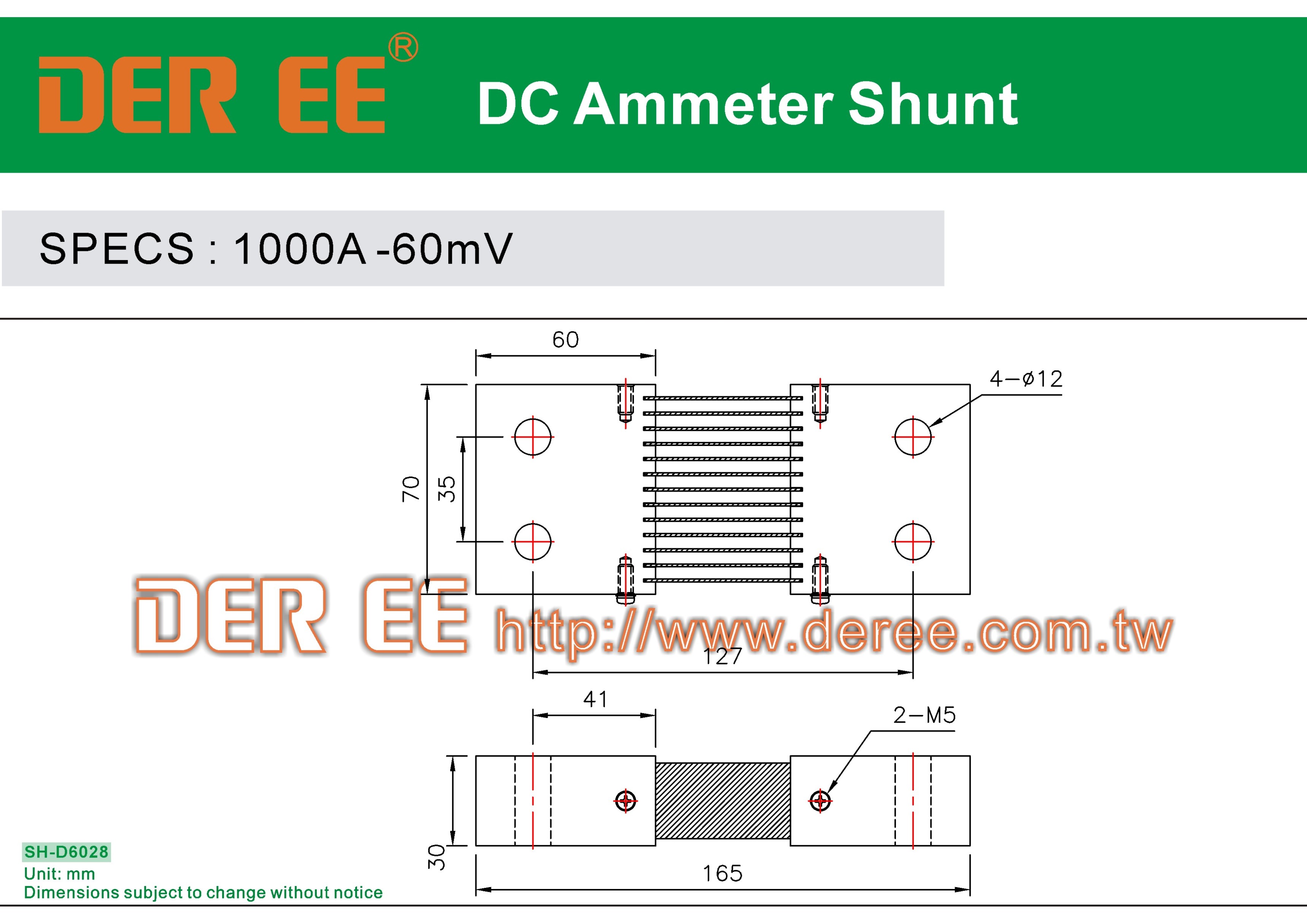

| 1000Amp / 60mV | SH-D6028 | |

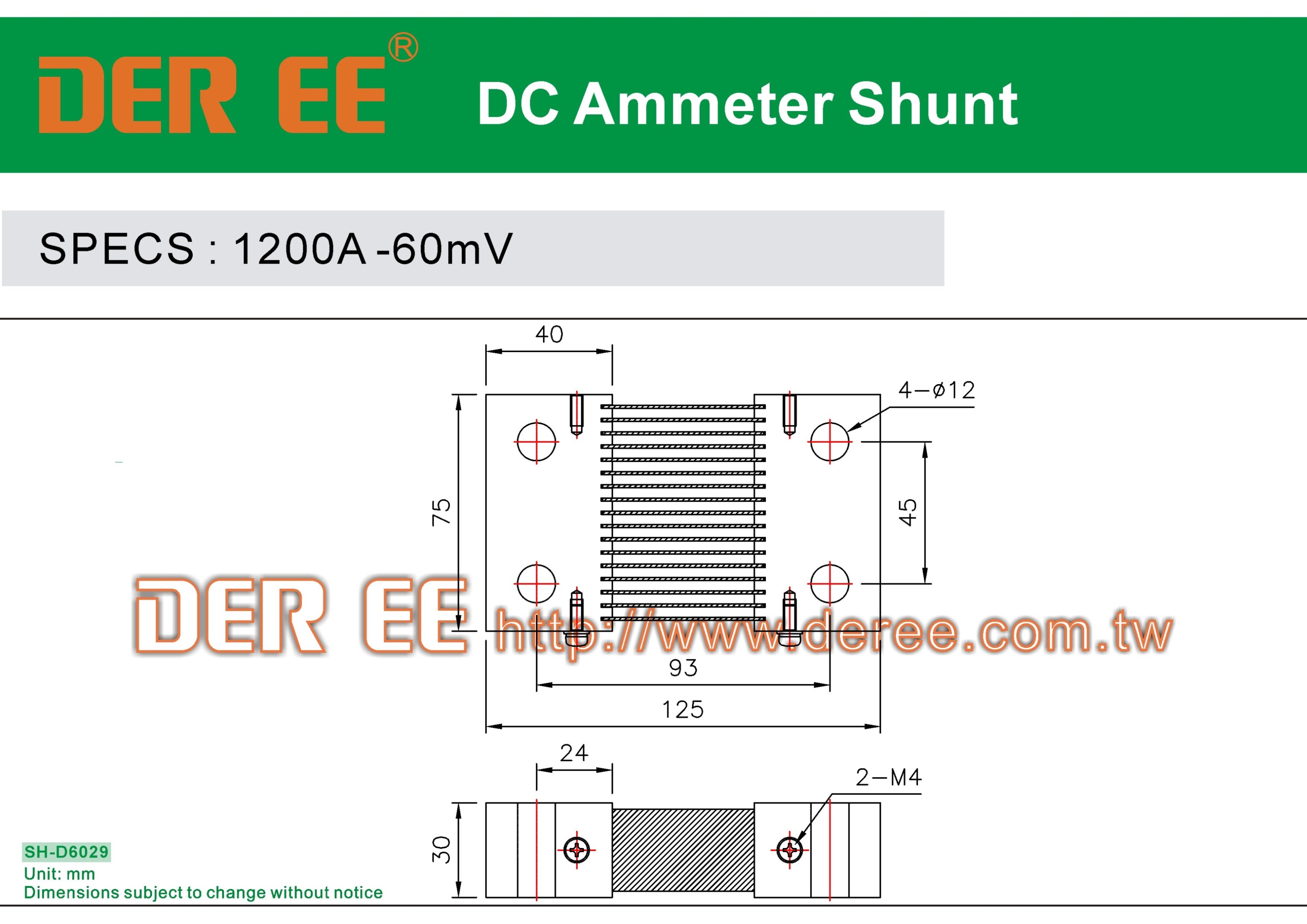

| 1200Amp / 60mV | SH-D6029 | |

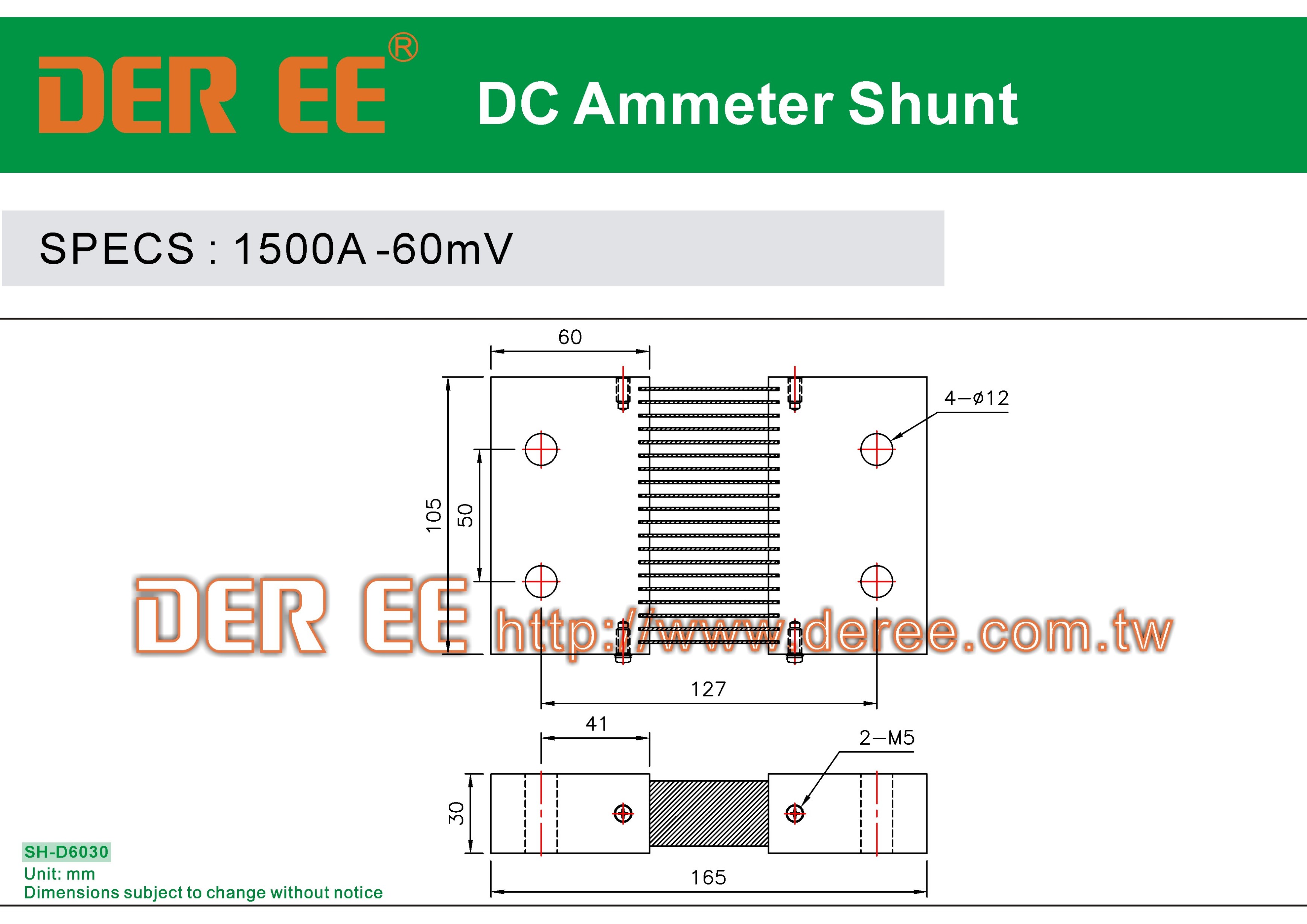

| 1500Amp / 60mV | SH-D6030 | |

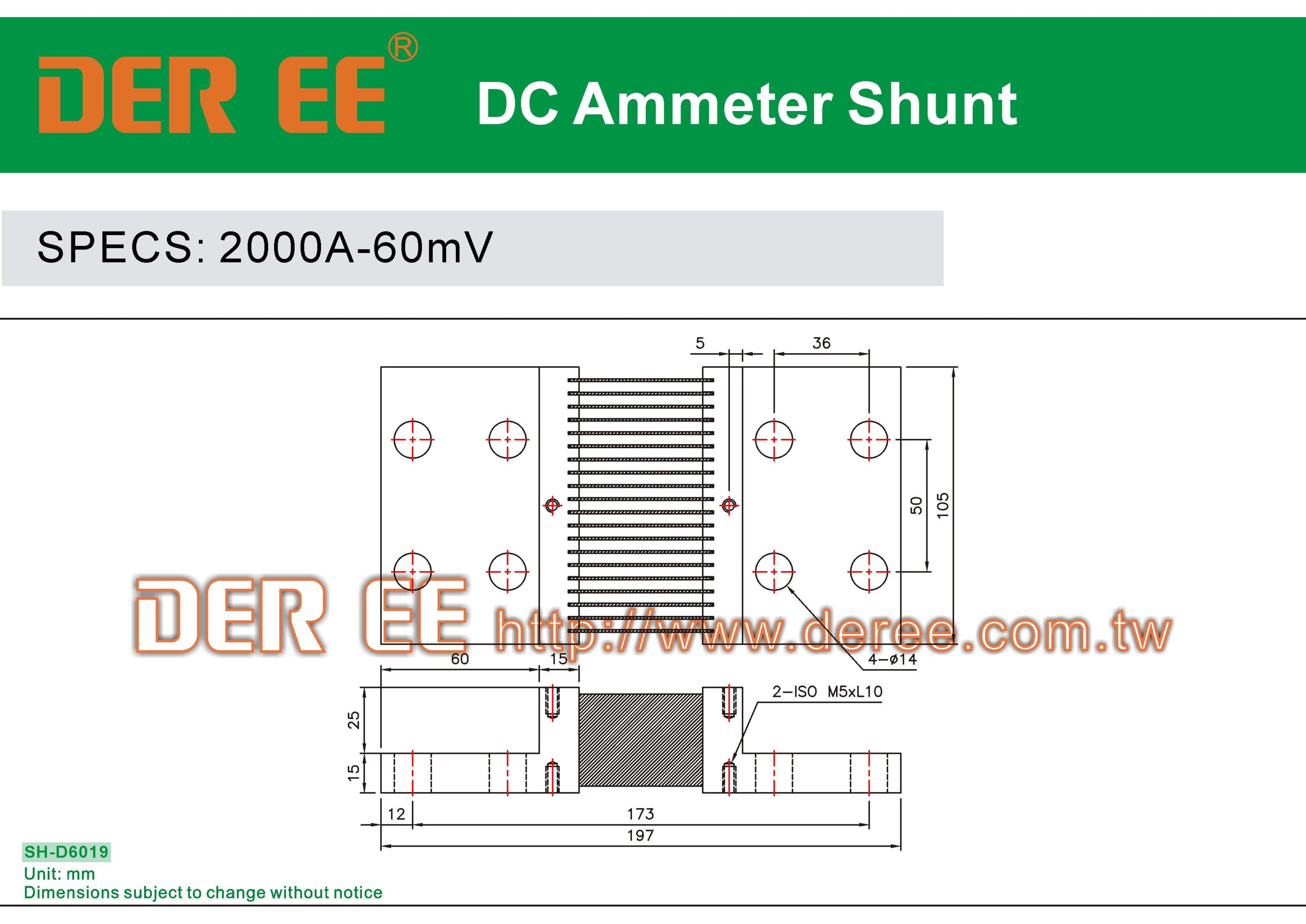

| 2000Amp / 60mV | SH-D6019 | |

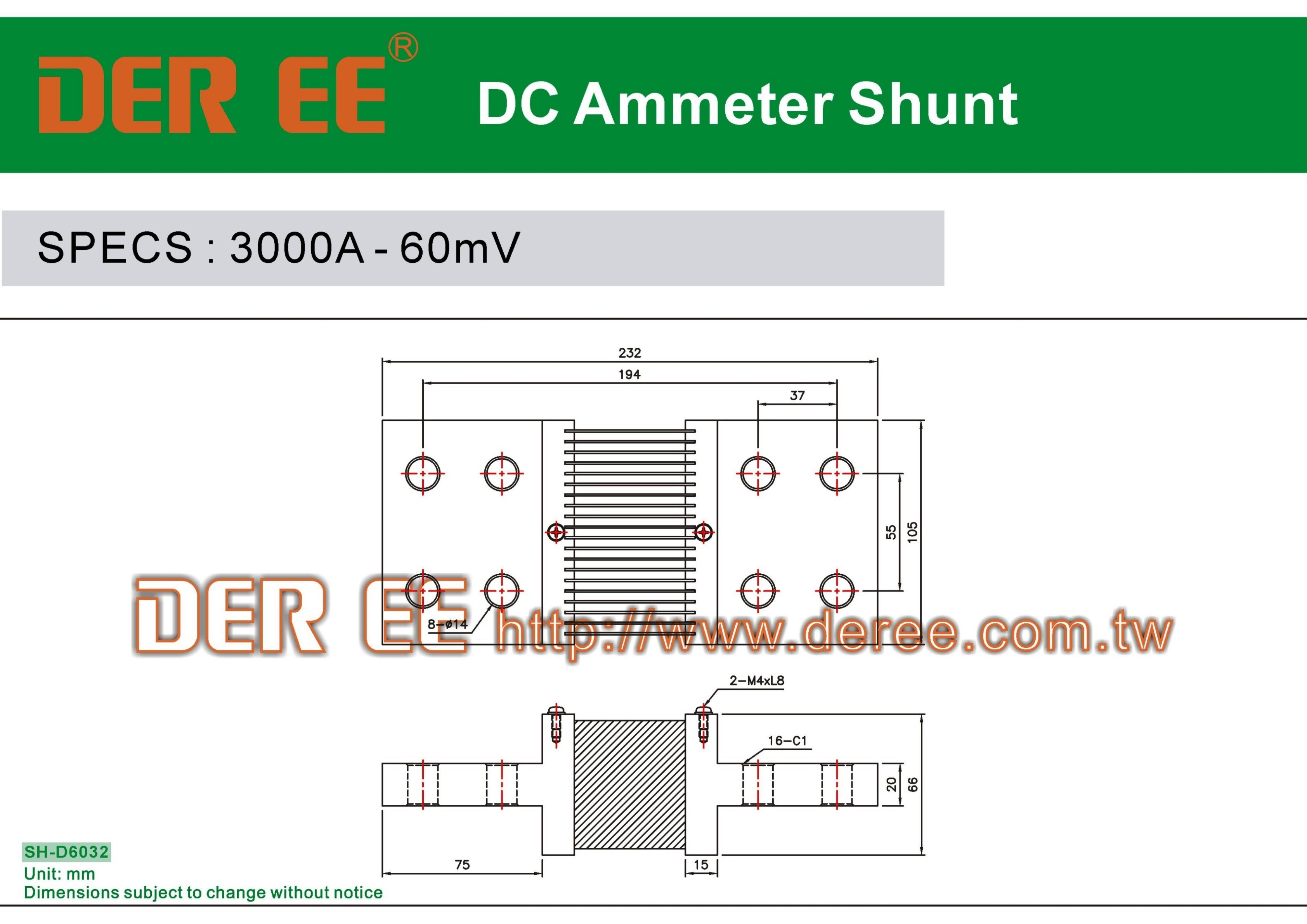

| 3000Amp / 60mV | SH-D6032 | |

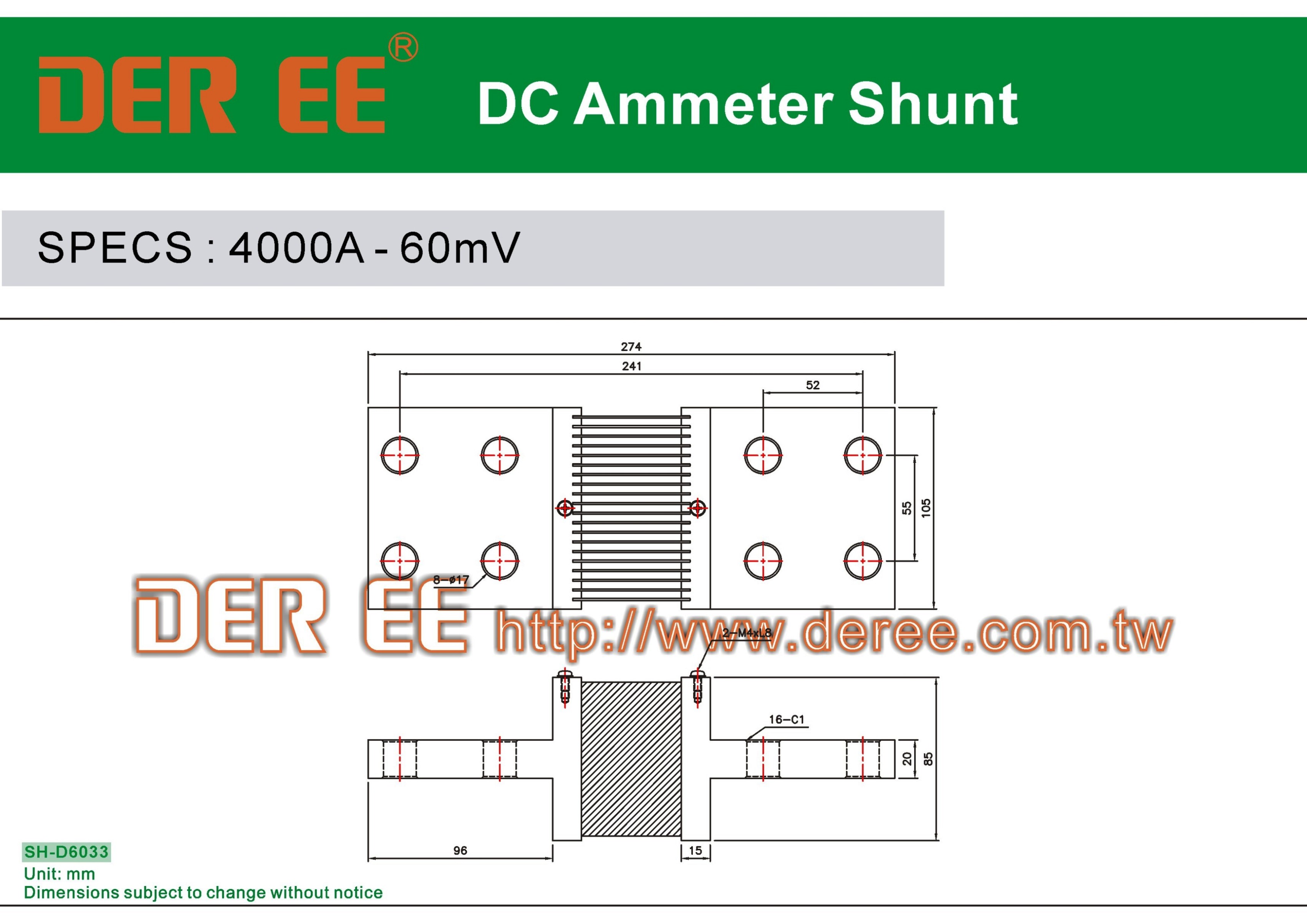

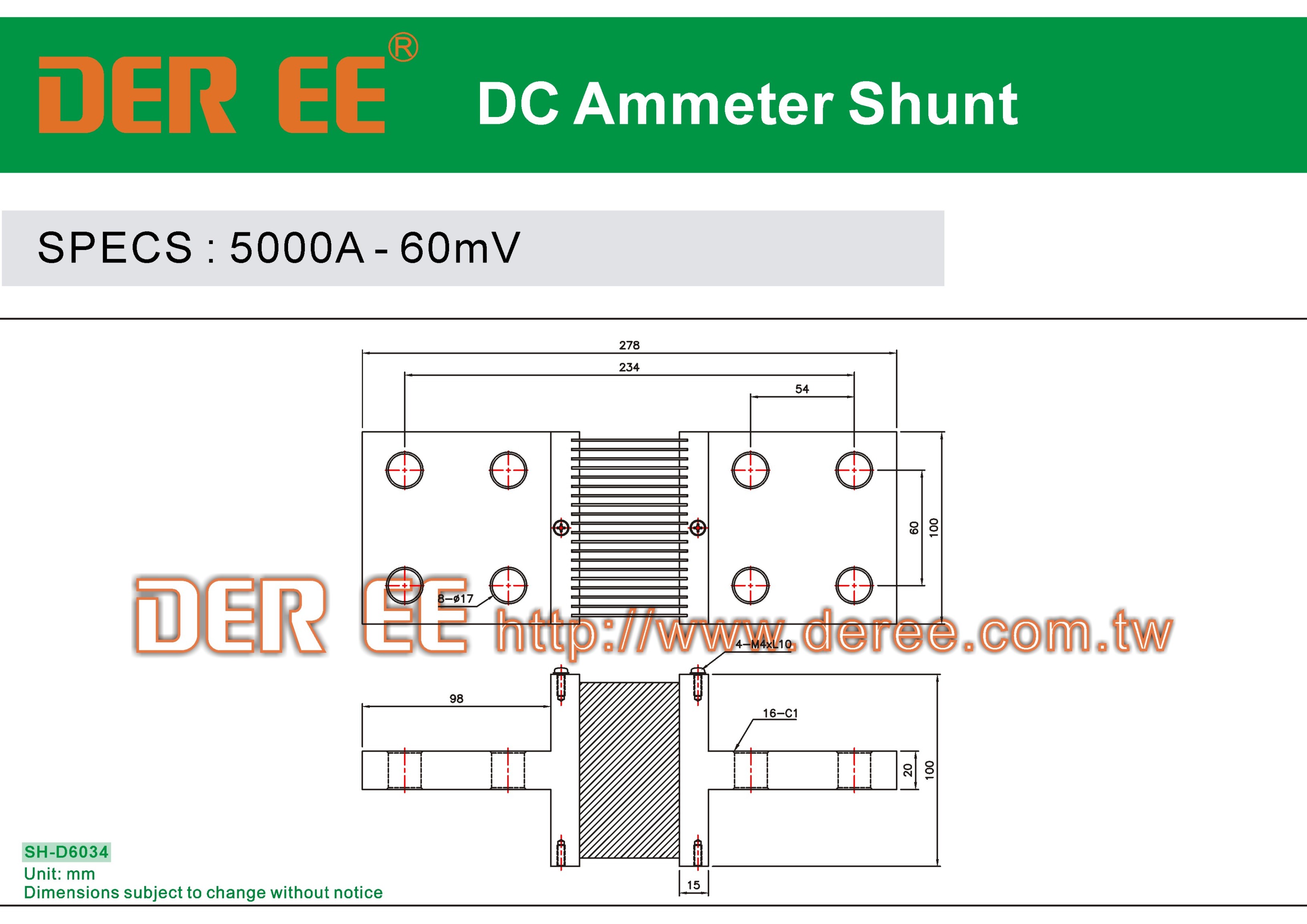

| 4000 Amp / 60mV | SH-D6033 | |
| 5000Amp / 60mV | SH-D6034 | |
- Shunts are available in any amperage and millivolt rating.
- specifications are subject to change without notice.
