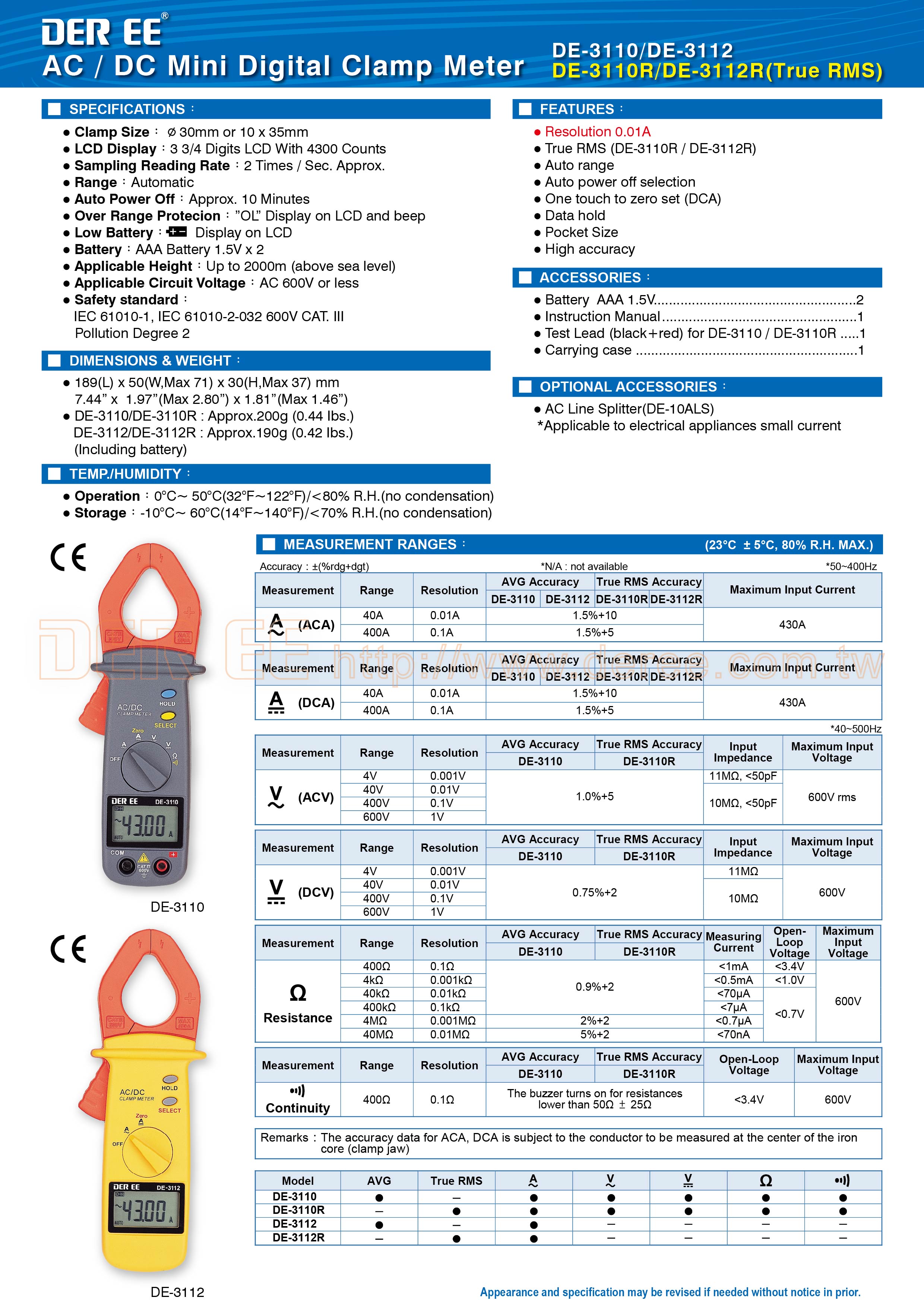

DE-3110R AC/DC Clamp Meter (Pocket Size)
Max. 400A; Clamp Size ∅30mm
True RMS
Data hold
Auto range
Over range indication: OL & beep
4300 counts
- Measurement Functions：DCV, ACV, DCA, ACA, Resistance, Buzzer
- Clamp Size：φ30mm or 10x35mm
- LCD Display：3 3/4 Digits LCD With 4300 Counts
- Applicable Circuit Voltage：AC 600V or less
- Sampling Reading Rate：2 Times/ Sec. Approx.
- Range：Automatic
- Applicable Height：Up to 2000m (above sea level)
- Auto Power Off：Approx. 10 Minutes
-
Low Battery：
Display on LCD
- Battery：AA A Battery 1.5V x2
- Safety standard：IEC 61010-1 , IEC 61010-2-032 600V CAT III Pollution Degree 2
Measurement Ranges：
(23°C ±5°C, 80% R.H. MAX) Accuracy：±(%rdg+dgt)
|
Measurement |
Range |
Resolution |
AVG Accuracy |
True RMS Accuracy |
Input Impedance |
Open-Loop Voltage |
|
DE-3110 |
DE-3110R |
|||||
|
(ACA) |
40A |
0.01A |
1.5%+10 |
──── |
|
|
|
400A |
0.1A |
1.5%+5 |
||||
|
(DCA) |
40A |
0.01A |
1.5%+10 |
──── |
|
|
|
400A |
0.1A |
1.5%+5 |
||||
|
(ACV) |
4V |
0.001V |
1.0%+5 |
11MΩ, <50pF |
|
|
|
40V |
0.01V |
10MΩ, <50pF |
||||
|
400V |
0.1V |
|||||
|
600V |
1V |
|||||
|
(DCV) |
4V |
0.001V |
0.75%+2 |
11MΩ |
|
|
|
40V |
0.01V |
10MΩ |
||||
|
400V |
0.1V |
|||||
|
600V |
1V |
|||||
|
(Resistance) |
400Ω |
0.1Ω |
0.9%+2 |
──── |
Approx <3.4V |
|
|
4kΩ |
0.001kΩ |
Approx <1.0V |
||||
|
40kΩ |
0.01kΩ |
Approx <0.7V |
||||
|
400kΩ |
0.1kΩ |
|||||
|
4MΩ |
0.001MΩ |
2%+2 |
||||
|
40MΩ |
0.01MΩ |
5%+2 |
||||
|
(BUZZER) |
400Ω |
0.1Ω |
The buzzer turns on for resistances lower than 50Ω±25Ω |
──── |
Approx <3.4V |
|
※Remarks：The accuracy data for ACA is subject to the conductor to be measured at the center of the iron core (clamp jaw)
TEMP./Humidity：
- Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
- Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension & Weight：
- 189(L)x50(W,Max71)x30(H,Max47)mm
- Approx.220g (Including battery)
Accessories：
- Battery AAA 1.5V x2
- Instruction Manual x1
- Test Leads (red+black) x1
- Carrying case x1
Optional Accessories：
-
AC Line Splitter(DE-10ALS)
*Applicable to electrical appliances small current
-
True RMS
- Auto Power Off Selection
- Auto Range
- High Accuracy
- One touch to zero set (DCA)
- Data Hold
- Resolution 0.01A
- Pocket Size
