• Digital Thermometer DE-3003 K-TYPE

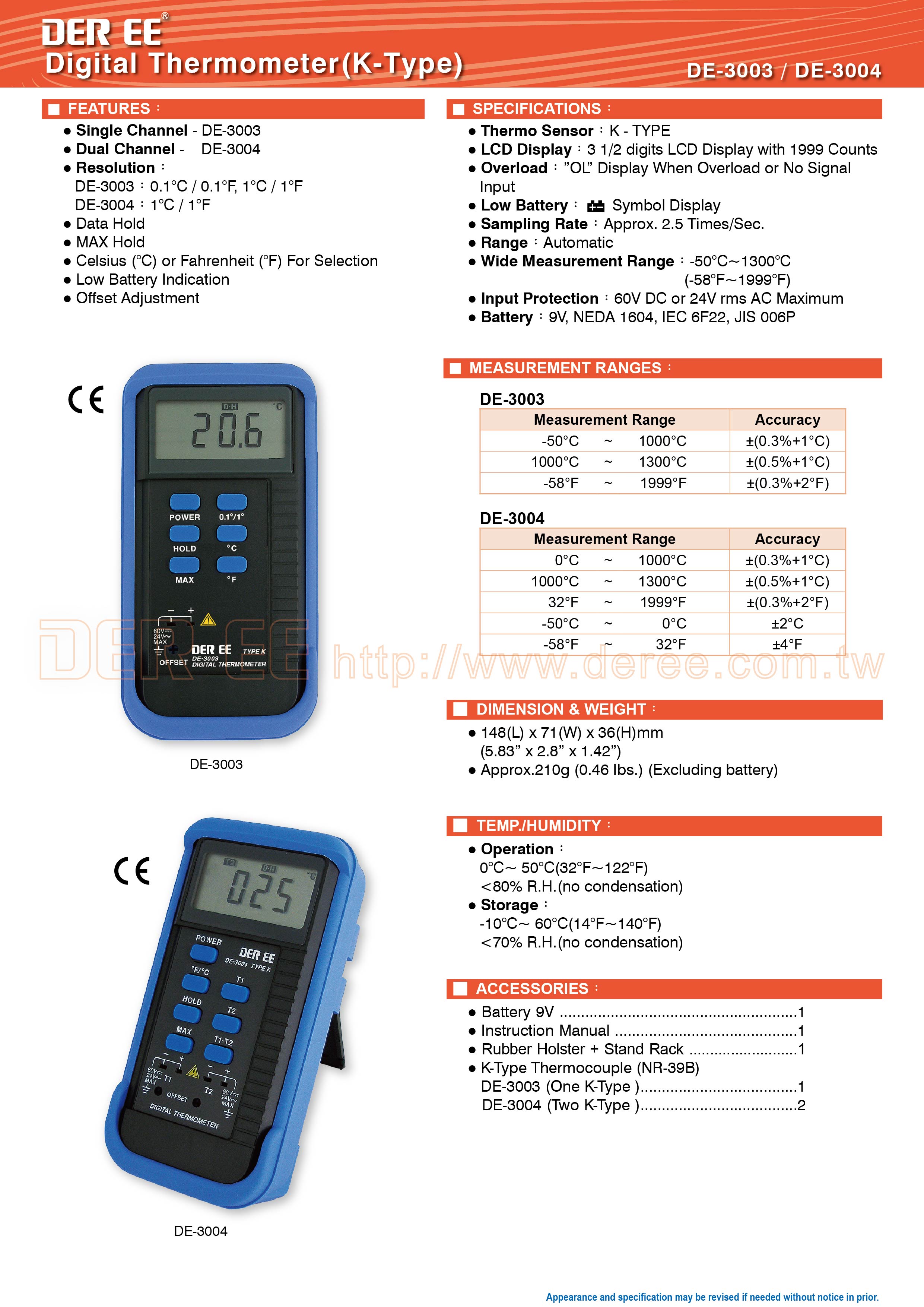

DE-3003 K-TYPE Digital Thermometer

Single Channel
Resolution：0.1°C/0.1°F, 1°C/1°F
Wide range: -50°C~ 1300°C (-58°F ~ 1999°F)
Data Hold
Max. Hold
Model : DE-3003
  • LCD Display：3½ digits LCD Display with 1999 Counts
  • Overload：”OL” Display When Overload or No Signal Input
  • Low Battery： bat07.jpg Symbol Display
  • Sampling Rate：Approx. 2.5 Times/Sec.
  • Wide Measuring Range：-50°C~1300°C(-58°F~1999°F)
  • Input Protection：60V DC or 24V rms AC Maximum
  • Battery：9V, NEDA 1604, IEC 6F22, JIS 006P


  Measurement Ranges：

23°C ±5°C, 80% R.H. MAX

Measurement Range

Accuracy

-50°C~1000°C

±(0.3%+1°C)

1000°C~1300°C

±(0.5%+1°C)

-58°F~1999°F

±(0.3%+2°F)


  TEMP./Humidity：

  • Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
  • Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)



  Dimension & Weight：

  • 148(L)x71(W)x36(H)mm
  • Approx.210g (Including battery)



  Accessories：

  • Battery 9V x 1
  • Instruction Manual x1
  • Thermocouple (NR-39B) x 1
  • Rubber Holster + Stand Rack x 1

  • Single Channel
  • Resolution：0.1°C / 0.1°F, 1°C / 1°F
  • Data Hold
  • MAX Hold
  • Celsius(°C) or Fahrenheit(°F) For Selection
  • Offset Adjustment
